Tanfil 100, Tangential Flow Filtration System, AC100~240V, EU plug, 184100-02

Tanfil 100, Tangential Flow Filtration System, AC100~240V, EU plug

SKU: 184100-02

Manufacturer: Rocker

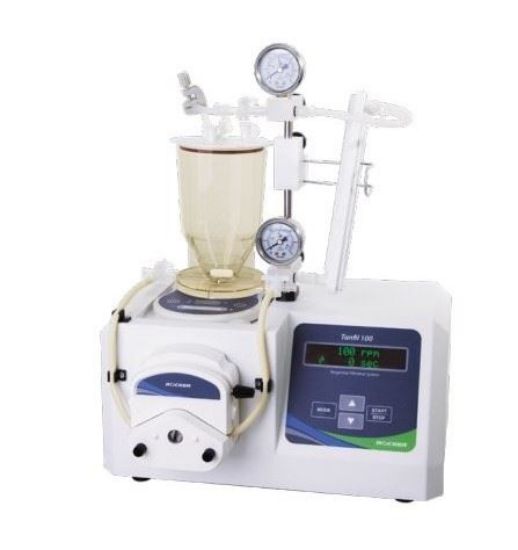

Tanfil 100 TFF system
GENERAL DATA
Max. flow rate	0 ~ 460 mL/min (Recirculation)
Noise Level	55 dB
Net weight	7.8 Kg
Dimension(LxWxH)	28 x 33 x 16 cm
ELECTRICAL DATA
Voltage	100-240V
Frequency	50 / 60Hz
Max. Power	50W
OTHER DATA
Equipped with	“PES Reservoir, 500mL”, Pressure gauges, Magnetic stirrer, Tubing

Tanfil TFF System Feature

Multi-purpose

Tangential flow filtration technique enables concentration and diafiltration at same run.

Less membrane fouling

Feed flows parallel to membrane and thus prevents membrane fouling and increases membrane utility.

Easy scaled-up

Use same parameters and conditions from trial to mass production.

Plug & start

Integrated with pump, liquid reservoir and pressure gauges. Plug the tube, add samples and start processing.

Tanfil TFF System Order Information
184100-01(02)	Tanfil 100, Tangential Flow Filtration System, AC100~240V, 50/60Hz, US plug (EU plug)
203100-01	MS 100, Low Profile Magnetic Stirrer with AC100-240V adaptor, US/EU plug
203100-10	PTFE Magnetic Stirring Bar, Ø3.6 x 25 mm
184100-47	TYGON®, Sani-Tech® Ultra-C Platinum-cured Silicone Tubing, ID 1/8″ x OD 1/4″, 50 ft
184100-48	Pharmed ® BPT Tubing, ID 1/8” x OD 1/4”, 25ft
Pall Minimate™ Tangential Flow Filtration Capsules
PALOA001C12	Pall, 1K Minimate capsule with Omega membrane (1/pkg)
PALOA003C12	Pall, 3K Minimate capsule with Omega membrane (1/pkg)
PALOA005C12	Pall, 5K Minimate capsule with Omega membrane (1/pkg)
PALOA010C12	Pall, 10K Minimate capsule with Omega membrane (1/pkg)
PALOA030C12	Pall, 30K Minimate capsule with Omega membrane (1/pkg)
PALOA050C12	Pall, 50K Minimate capsule with Omega membrane (1/pkg)
PALOA070C12	Pall, 70K Minimate capsule with Omega membrane (1/pkg)
PALOA100C12	Pall, 100K Minimate capsule with Omega membrane (1/pkg)
PALOA300C12	Pall, 300K Minimate capsule with Omega membrane (1/pkg)
PALOA500C12	Pall, 500K Minimate capsule with Omega membrane (1/pkg)
PALOA990C12	Pall, 1000K Minimate capsule with Omega membrane (1/pkg)
