SolarVac 1201-MB-A, Vacuum Filtration System, AC100-240V adaptor with EU plug, 1861201-02-A

SKU: 1861201-02-A
Manufacturer: Rocker
SolarVac 1201 – MB – A SolarVac Multi-Branch Manifold
Max. vacuum313 mbar abs.
Max. flow rate4.5 L/min
Noise Level60 dB
VoltageDC24V, 1.8A
Max. Power44W
Funnel capacitySF stainless steel funnel 100 mL x 12
Filter diameter47 mm
Branch number12
Equipped withBLDC motor

SolarVac Multi-Branch Filtration System Ordering Information

Product NumberDescription

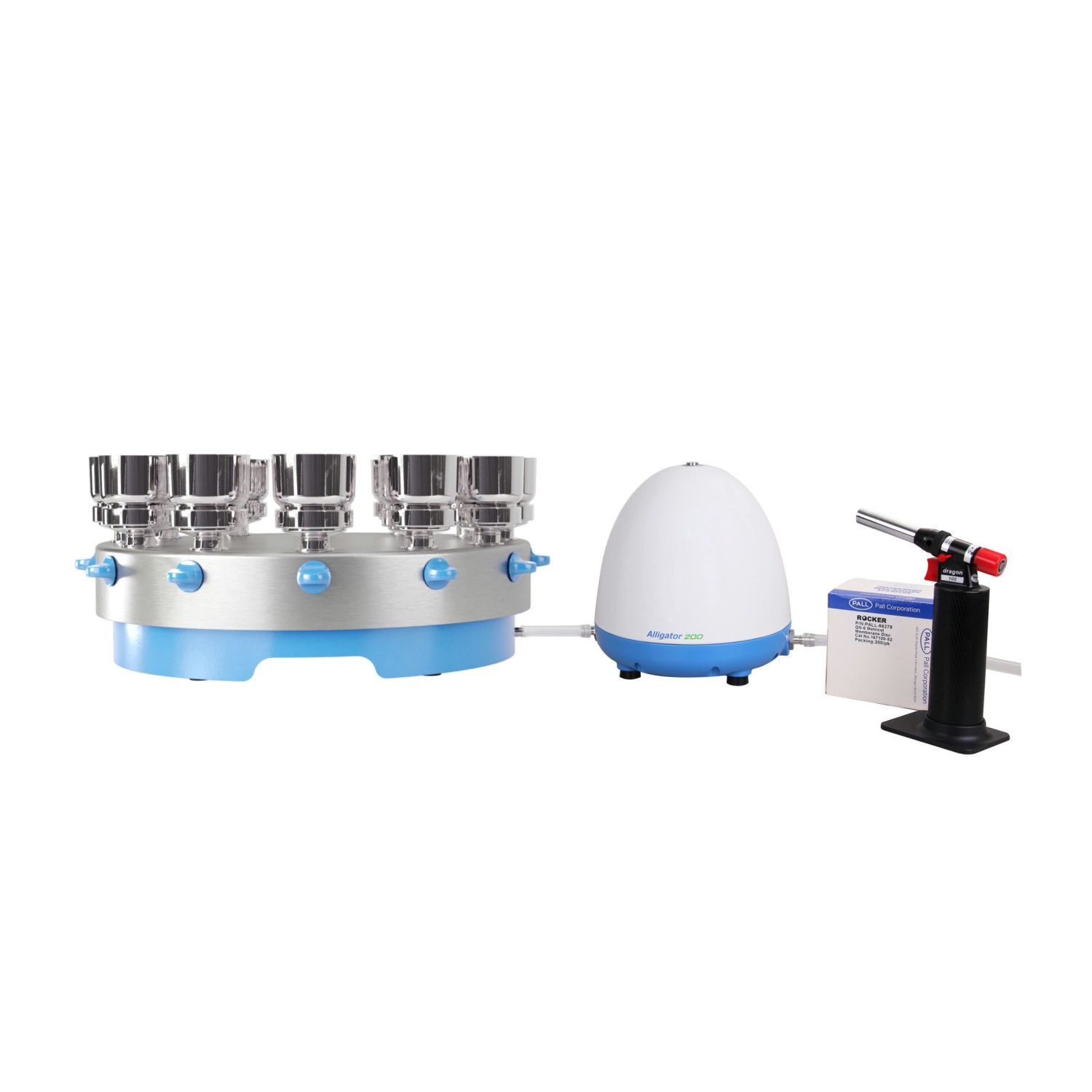

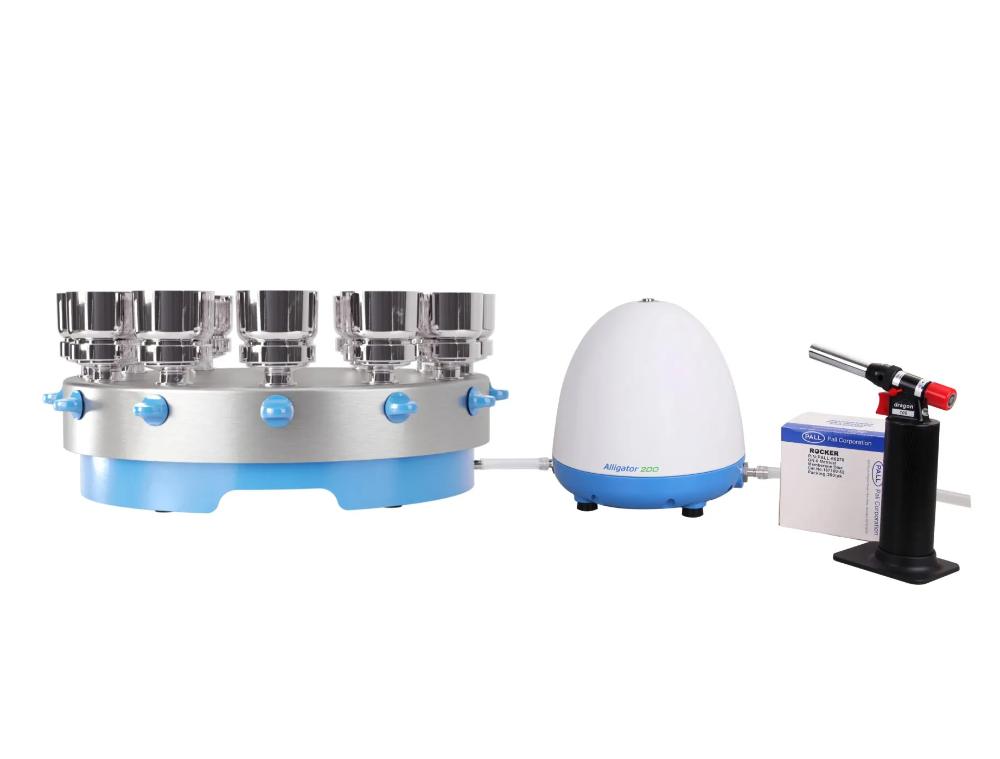

1861201-01/02-A SolarVac 1201 – MB – A Vacuum Filtration System includes:
* Alligator 200, Diaphragm Liquid Pump
* SolarVac 1200 – MB
* SF Stainless Steel Funnel, 100 mL *12pcs
* Dragon 100, Torch Burner
* MCE Membrane, 47 mm, 0.45 µm, 200/PK
* Silicone Tube
Part NumberDescription
1861201-02-ASolarVac 1201 – MB – A, Vacuum Filtration System, AC100-240V, EU plug
181200-02Alligator 200, Diaphragm Liquid Pump with AC100-240V adaptor, EU plug
180100-01Stainless steel funnel, 100 mL
177100-00Dragon 100, Torch Burner
1861201-02SolarVac 1201 – MB, 12 Places Rotary Manifold with ROCKER SF funnel adaptor, 100 mL SF Funnel x 12
1861201-01-ASolarVac 1201 – MB – A, Vacuum Filtration System, AC100-240V, US plug
181200-01Alligator 200, Diaphragm Liquid Pump with AC100-240V adaptor, US plug


Youtube Video: Filter more, save more! SolarVac Rotary Filtration Manifold


SolarVac Multi-Branch Filtration System Features

  • For microbiological filtration
    SolarVac 1201 – MB – A, include Alligator 200 diaphragm liquid pump, rotary manifold, burner and MCE membrane, are designed for a large number of samples in microbiological test.
  • Rotary design
    Turn the funnels and add samples at same position and prevent cross-contamination.
  • Save time & space
    Alligator 200 is a liquid pump that bypasses filtrate directly to drain without additional bottles. Save 60% bench space and save time from tedious cleaning works.
  • Easy tracking
    Each funnel position is marked clearly with numbers, making tracking easy and effortless.
  • Durable and autoclavable
    The wetted parts of SolarVac manifold are made of SS316 and silicone which is durable and autoclavable.
  • Individual control valve
    Control feeds of each funnel individually.


Attribute nameAttribute value
ModelSolarVac 1201-MB-A
Funnel Capacity100ml
Filter diameter47mm
Num of branch12
