RE100-Pro,Rotary Evaporator with set of glassware vertical free include 18900165, 6030110111

Rotary Evaporator with set of glassware vertical free include 18900165 condenser (1000ml) (package seperately)
SKU: 6030110111
Manufacturer: Dragon Lab
Pack Size: 1

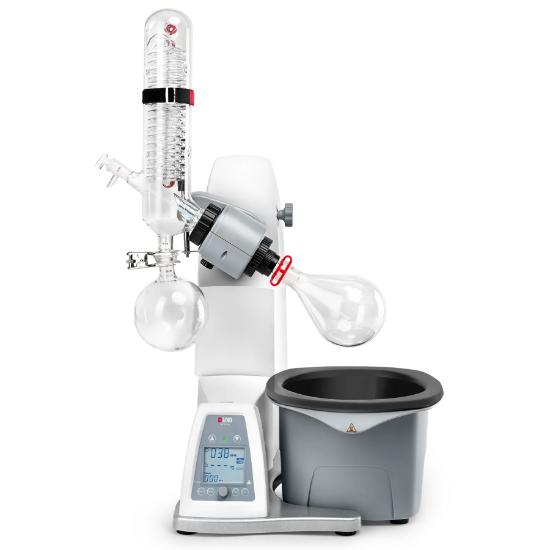

RE100-Pro Digital Rotary Evaporator

•   Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes

•  Automatic motor lift releases the evaporating flask to a safe position in case of power failure

•   5L heating bath with wide temperature range from room temperature to 180°C  Water/oil heating mode can be  changed only through a switch

•   Overheating protection temperature at 220 °C

•   Boil-dry protection, automatically power off if heating without water/oil in the heating bath

•   Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process

•  Condenser (cooling surface 1700cm²) with excellent cooling effect

•   Ejection mechanism ensures easy removal of evaporating flask

•   Patented double spring sealing ring made of PTFE provides an excellent sealing performance

•  Optional glassware with explosion proof film available

PRODUCT PARAMETERS
Cat.No.6030110111
Evaporating flask volume50-3000mL
Temperature range
Room temp.-180℃
Temperature control accuracy
water: ± 1℃ ;oil: ±3℃
Speed range20-280rpm
Direction of RotationClockwise and counterclockwise
Evaporation capacity1.56L/h
Ultimate vacuum-
Temperature control
Micro processer PID control
DisplayLCD
TimerYes
Time Setting Range1-999min
Lifting modeMotorized
Lifting stroke150mm
Heating bath size-
Motor TypeBrushless DC motor
Heating Power1300W
Power1400W
Voltage/Frequency100-120/200-240V,50/60Hz
Dimension[D×W×H]465×457×583mm
Weight15kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
≤80% RH
Protection Class
IP20
USB InterfaceYes
Safety featuresMotor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
ApplicationsChemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.



Attribute nameAttribute value
Pack Size1
ModelRE100-Pro
Evaporating flask volume50-3000mL
Speed range20-280rpm
Power1400W
