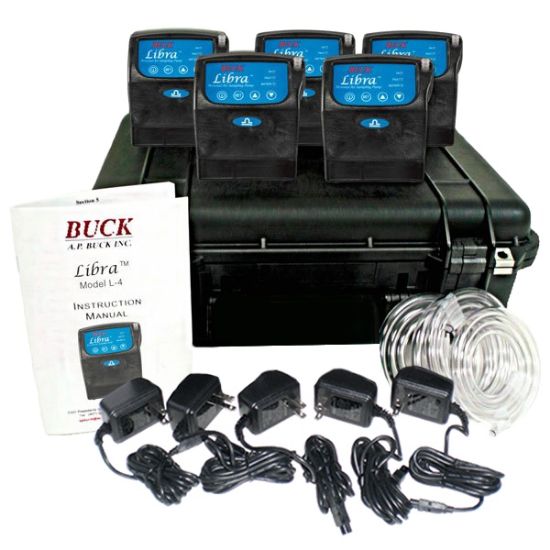

Includes:
5 - Libra™ L-4 Pumps with standard NiMH batteries
5 - Standard 230VAC overnight chargers
5 - Luer adapters
5 - 36" tubing sets
5 - Shirt/hose clips
5 - Manuals
1 - Carrying case
Specifications |
ACCESSORIES INCLUDED | 5 Tubing sets with clip & manual |
BACKPRESSURE COMPENSATION | Up to 35" H2O at 2 LPM |
DATALOGGING | No |
DISPLAY | None |
FLOW FAULT | Yes - with Auto Restart within 1 minute |
FLOW RANGE | 0.5-4 LPM (5-800cc w/low flow holder APB-109030) |
INTRINSICALLY SAFE | No |
MAX FLOW RATE | 4 LPM |
PROGRAMMABLE | No |
PUMP KIT TYPE | Five Pump Kit |
PUMP STYLE | Libra |
STP CORRECTION | No |
CHARGER | 230V |
The BUCK Libra™ L-4 is a low-cost, highperformance personal air sampling pump. It is a “no frills” model designed for the sampling of asbestos, lead, and other airborne contaminates. The rugged, compact design features a rechargeable NiMH battery with available one-hour charger. The sealed pump case protects the internal components from dust, fibers and moisture. Simplicity of its operation features “Set it and Forget it” flows at 2.0, 2.5 & 3.0 LPM; maintained within ±5% for full constant flow compensation using 37 and 25mm cassettes interchangeably. This insures accurate sample volumes based on the run time. The BUCK Libra™ L-4 is capable of delivering up to 4.0 LPM for periods exceeding 8 hours. Bright LED’s indicate the pump is ON, Flow Fault or a Low Battery. Flow from 5 to 800 cc/min may be obtained using optional Low Flow Holder.
Features:
• Compact, rugged and quiet
• No tools required to change flow rates
• Flow setting is saved in memory for next day quick start
• Battery pack rechargeable while attached or separately
• Stainless steel belt clip with built-in tripod connector
• One-hour rechargeable batteries and extended run triple packs
• High impact steel fiber filled Lexan case, antistatic and RFI shielded
• “Auto-restart” within one minute of a flow fault
• Flows up to 4 LPM for special cyclone requirements
• Low flows, 5 to 800 cc/m, with Universal Low Flow Sorbent Tube Holder
• High backpressure capable for 25mm 0.45µ micron asbestos filters
• Built in washable stainless steel 100 micron filter for economy of use
AP Buck Pump Feature Comparison | Libra | Libra Plus | Allin | Elite | Allin Plus |
---|
Constant Flow Compensates for changes in backpressure caused by filter loading and battery voltage | X | X | X | X | X |
LCD Display 2 Line LCD shows the elapsed time, accumulated volume and flow rate | | X | X | X | X |
Programmable Configure pump start/stop times and sample duration. | | | | X | X |
Datalogging Key sampling data is logged and stored for download | | | | X | X |
Optional PC Link Software Allows easy pump programming and downloading of data. | | | | X | X |
Intrinsically Safe Rated UL Rated in the US and Canada for Class I, II, III Div 1 Groups A-G, T3 hazardous locations | | | X | | X |
Advanced Constant Flow Control Additionally compensates for changes in temperature and barometric pressure when regulating the flow rate. | | | | | X
|
