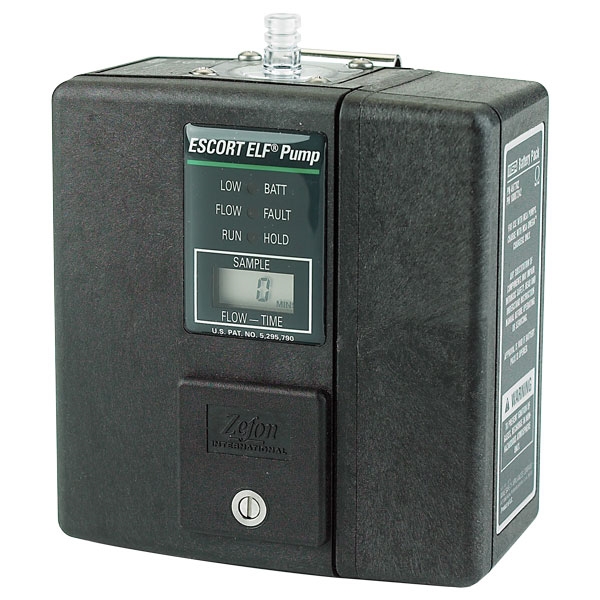

Pump, Escort ELF With Sampling Line, 805558

SKU: 805558
Manufacturer: ZEFON
Pack Size: 1

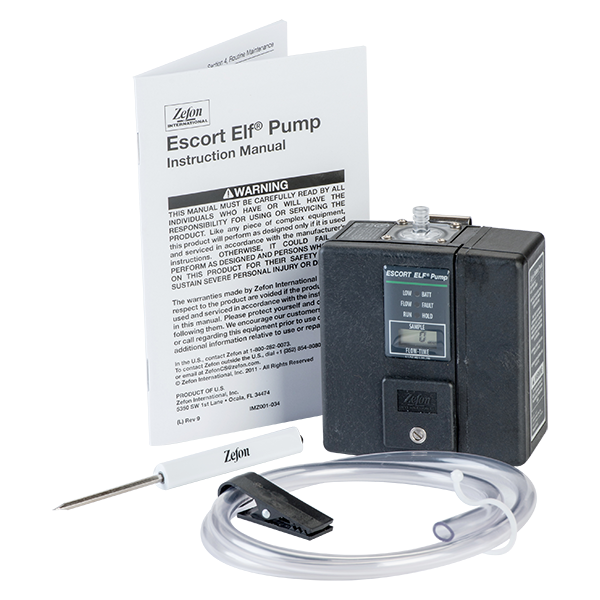

Includes:
1 - Escort ELF Pump
1 - Sampling Line
1 - Manual

Escort ELF air sampling pumps feature a state of the art electronic laminar flow sensor to provide a constant flow control with ± 2.5% regulation of flow rate (from 1-3 lpm) with automatic compensation for changes in battery voltage, temperature, altitude, and sample load. An internal secondary standard calibrates the pump continuously and needs to checked against a primary standard only once per month (or every 200 hours for coal mine dust sampling).

Features:

  • Patented electronic laminar flow control.
  • Internal secondary standard calibrates the pump continuously, maintaining OSHA compliance.
  • Check against a primary standard only once a month or every 200 hours for coal mine dust sampling.
  • Inlet filter traps moisture and particular matter.
  • Stainless steel-filled plastic case provides EMI/RFI protection.
  • Rated IP65 for resistance to water and dust ingress.
  • Exceptionally quiet operation.
  • Flow-Fault Indicator shows any sample inlet blockage.
  • Run/Hold feature allows “time out” during sampling process.
  • Elapsed time readout and low-battery warning.
  • Low flow and dual tube sampling available with Gemini Twin-Port Sampler.
Specifications
ACCESSORIES INCLUDEDSampling Line
ACCURACY± 2.5% of set-point between 1-3 LPM
APPROVALSNIOSH certified for coal mine dust sampling
BACKPRESSURE COMPENSATIONUp to 30" H2O at 2 LPM
CHARGERNot Included
DATALOGGINGNo
DISPLAYYes
FLOW FAULTYes
FLOW RANGE0.5-3 LPM
INTRINSICALLY SAFEYes - UL & MSHA
MAX FLOW RATE3 LPM
PROGRAMMABLENo
PUMP KIT TYPESingle Pump Kit
PUMP STYLEEscort ELF
STP CORRECTIONYes
Attribute nameAttribute value
Pack Size1
