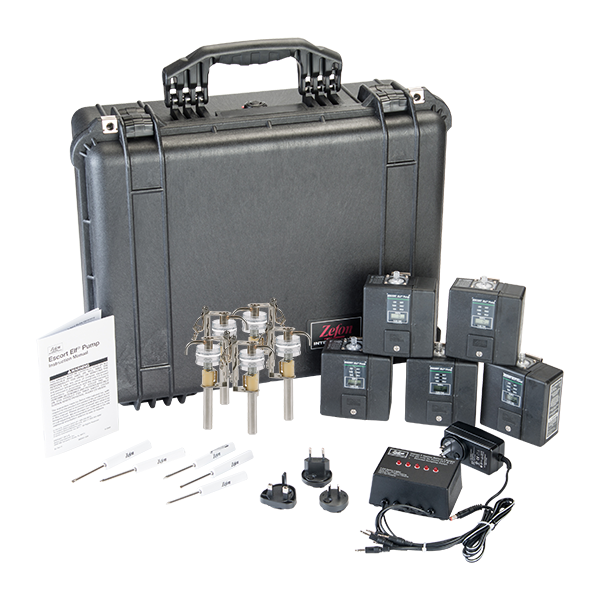

Includes:
5 - Escort ELF Pump
1 - 120/240V 5-Unit Charger

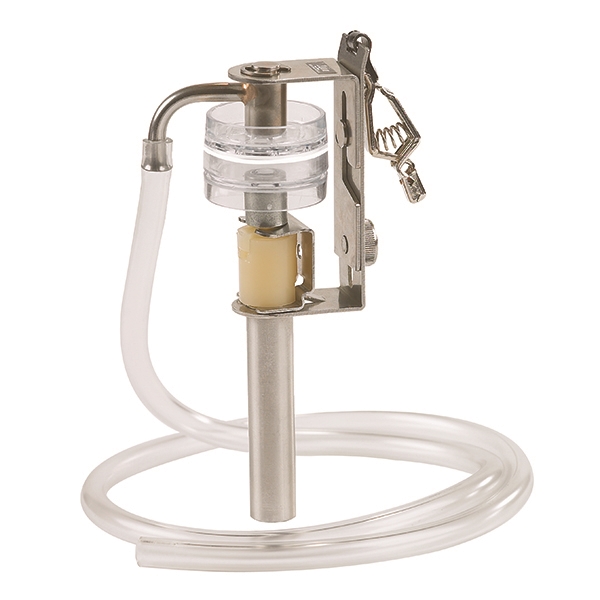

5 - 10mm Cyclone Assembly IH (10044015)
1 - Pelican Case and Manuals

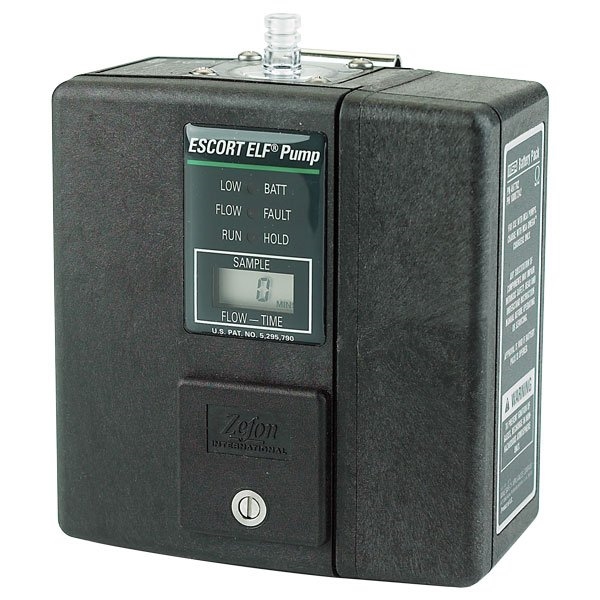

Escort ELF air sampling pumps feature a state of the art electronic laminar flow sensor to provide a constant flow control with ± 2.5% regulation of flow rate (from 1-3 lpm) with automatic compensation for changes in battery voltage, temperature, altitude, and sample load. An internal secondary standard calibrates the pump continuously and needs to checked against a primary standard only once per month (or every 200 hours for coal mine dust sampling).
Features:
Patented electronic laminar flow control.
Internal secondary standard calibrates the pump continuously, maintaining OSHA compliance.
Check against a primary standard only once a month or every 200 hours for coal mine dust sampling.
Inlet filter traps moisture and particular matter.
Stainless steel-filled plastic case provides EMI/RFI protection.
Rated IP65 for resistance to water and dust ingress.
Exceptionally quiet operation.
Flow-Fault Indicator shows any sample inlet blockage.
Run/Hold feature allows “time out” during sampling process.
Elapsed time readout and low-battery warning.
Low flow and dual tube sampling available with Gemini Twin-Port Sampler.
| Specifications |
| ACCESSORIES INCLUDED | IH Cyclone |
| ACCURACY | ± 2.5% of set-point between 1-3 LPM |
| APPROVALS | NIOSH certified for coal mine dust sampling |
| BACKPRESSURE COMPENSATION | Up to 30" H2O at 2 LPM |
| CHARGER | 120-240V 5 Station |
| DATALOGGING | No |
| DISPLAY | Yes |
| FLOW FAULT | Yes |
| FLOW RANGE | 0.5-3 LPM |
| INTRINSICALLY SAFE | Yes - UL & MSHA |
| MAX FLOW RATE | 3 LPM |
| PROGRAMMABLE | No |
| PUMP KIT TYPE | Five Pump Kit |
| PUMP STYLE | Escort ELF |
| STP CORRECTION | Yes |
