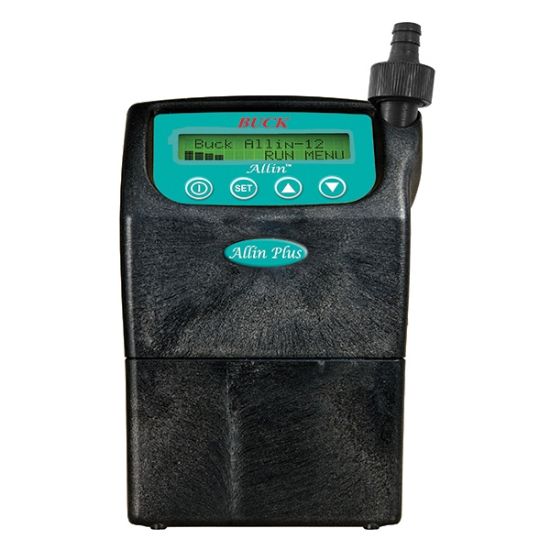

Pump, Allin-12, 230V, APB-905420

Allin-12 Pump (3-12 LPM) with 230v Charger.
SKU: APB-905420
Manufacturer: ZEFON
Pack Size: 1

Includes:
- Allin-12 Pump (3-12 LPM)
- 230v Charger
- Tubing/clip assembly
- 3’ of tubing & manual

Specifications
ACCESSORIES INCLUDEDTubing set with clip & manual
BACKPRESSURE COMPENSATIONUp to 12" H2O at 10 LPM
DATALOGGINGNo
DISPLAYElapsed time, accumulated volume, flow rate
FLOW FAULTYes - with Auto Restart within 1 minute
FLOW RANGE3-12 LPM
INTRINSICALLY SAFEYes
MAX FLOW RATE12 LPM
PROGRAMMABLENo
PUMP KIT TYPESingle Pump Kit
PUMP STYLEAllin
STP CORRECTIONNo
WARRANTY1 Year
CHARGER230V

About Buck Allin

- Allin-1: 5-600 cc/min (5-99cc/min with optional low flow tube holder, APB-109033)

- Allin-5: 0.8-5.0 LPM (5-800cc/min with optional low flow tube holder, APB-109030)

- Allin-12: 3-12 LPM

- Backpressure Compensation:

   - Allin-1: Up to 25” H2O at 200 cc/min

   - Allin-5: Up to 50” H2O at 2 LPM

   - Allin-12: Up to 12” H2O at 10 LPM

- Accuracy +/- 5% of display reading

- "Auto-restart” within one minute of a Flow Fault

- Displays: elapsed time, accumulated volume and flow rate

- No tools required to change flow rates.

- Built-in washable stainless steel inlet filter.

- Flow Compensation for filter plugging and battery voltage

- Compact, rugged and quiet

- Stainless steel belt clip with built-in tripod connector

- High impact Lexan case, antistatic and RFI shielded.

- Key pad lock system

- Intrinsically safe rated by UL in the US and Canada for Class I, II, III Div 1 Groups A-G, T3 hazardous locations



AP Buck Pump Feature Comparison
Libra
Libra Plus
Allin
Elite
Allin Plus
Constant Flow
Compensates for changes in backpressure
caused by filter loading and battery voltage
XXXXX
LCD Display
2 Line LCD shows the elapsed time,
accumulated volume and flow rate
 XXXX
Programmable
Configure pump start/stop times and
sample duration.
   XX
Datalogging
Key sampling data is logged and stored for download
   XX
Optional PC Link Software
Allows easy pump programming and downloading of data.
   XX
Intrinsically Safe Rated
UL Rated in the US and Canada for Class I, II, III
Div 1 Groups A-G, T3 hazardous locations
  X X
Advanced Constant Flow Control
Additionally compensates for changes in temperature and barometric pressure when regulating the flow rate.
    X



Attribute nameAttribute value
Pack Size1
