Pre-sealed: 1.5 mL Screw Neck Vial N 9 flat bottom 702282 with magnetic silver screw cap 702155, pk100, 702897

Screw neck vial, N 9, 11.6x32.0 mm, 1.5 mL, flat bottom, clear with Screw closure, N 9, PP/steel, magnetic, center hole, Silicone w./PTFE red, 1.0mm

SKU: 702897

Manufacturer: Machery Nagel

Pack Size: 100

Pre-sealed vials

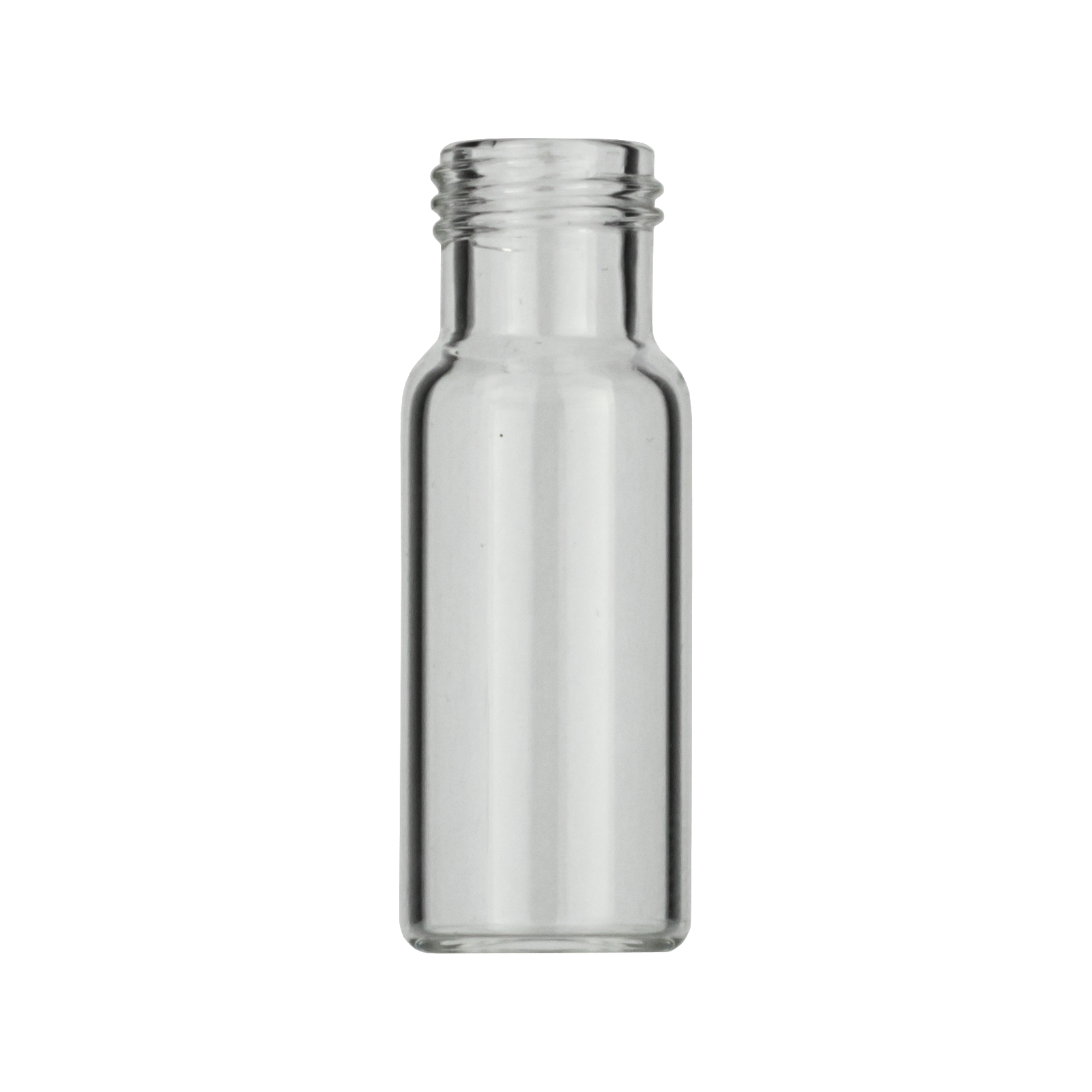

702282: 1.5 mL Screw Neck Vial N 9 outer diameter: 11.6 mm, outer height: 32 mm clear, flat bottom, wide opening pre-screwed

702155: N 9 magnetic screw cap, silver, center hole Silicone white/PTFE red Hardness: 45° shore A Thickness: 1.0 mm

702282: Screw neck vial, N 9, 11.6x32.0 mm, 1.5 mL, flat bottom, clear
Vial category	Vial
Vial type	Screw neck vial
Nominal diameter	N 9
Vial material	Clear glass, 1st hydrolytic class glass
Vial dimensions	11.6 mm x 32.0 mm
Vial diameter	11.6 mm
Vial height	32.0 mm
Usable volume	1.5 mL
Vial opening	Wide
Writing patch	No
Silanized	No
Additional vial features	Not available or not applicable
Bottom shape of the vial	Flat bottom
Recommended application(s)	GC, HPLC
Autosampler compatibility	Agilent, CTC, Dionex, Knauer, PerkinElmer (HPLC), Shimadzu, Thermo Scientific, Varian, VWR, Waters
Storage temperature	15–25 °C / 59–77 °F
Scope of delivery	100x N 9 glass screw neck vials
Gross weight (incl. packaging)	251 g / 0.55 lbs
Packaging dimensions	99 x 177 x 40 mm / 3.90 x 6.97 x 1.57 Inch
Hazardous material	No

702155: Screw closure, N 9, PP/steel, magnetic, center hole, Silicone w./PTFE red, 1.0mm
Closure type	Screw closure
Nominal diameter	N 9
Assembling process	Assembled
Cap material	Polypropylene/steel
Cap color	Silver
Cap hole	Yes
Closure magnetic	Yes
Septa material	Silicone/PTFE
Colors of septa material	White/red
Septa thickness	1.0 mm / 39,4 mil
Septa hardness	45° shore A
Additional closure features	Temp. resistance septa -60 °C up to 200 °C - however, PP cap only from -10 °C up to 120 °C / analytical purity - high / easy to penetrate / medium resealability
Recommended application(s)	GC
Autosampler compatibility	CTC (for GC PAL), Shimadzu (for AOC5000), Thermo Scientific (for GC PAL), Varian (for GC PAL)
Storage temperature	15–25 °C / 59–77 °F
Scope of delivery	100x N 9 ready assembled screw closures
Gross weight (incl. packaging)	72 g / 0.16 lbs
Packaging dimensions	100 x 150 x 13 mm / 3.94 x 5.91 x 0.51 Inch
Hazardous material	No

Attribute name	Attribute value
Pack Size	100
Vial Top	9mm Screw Thread
