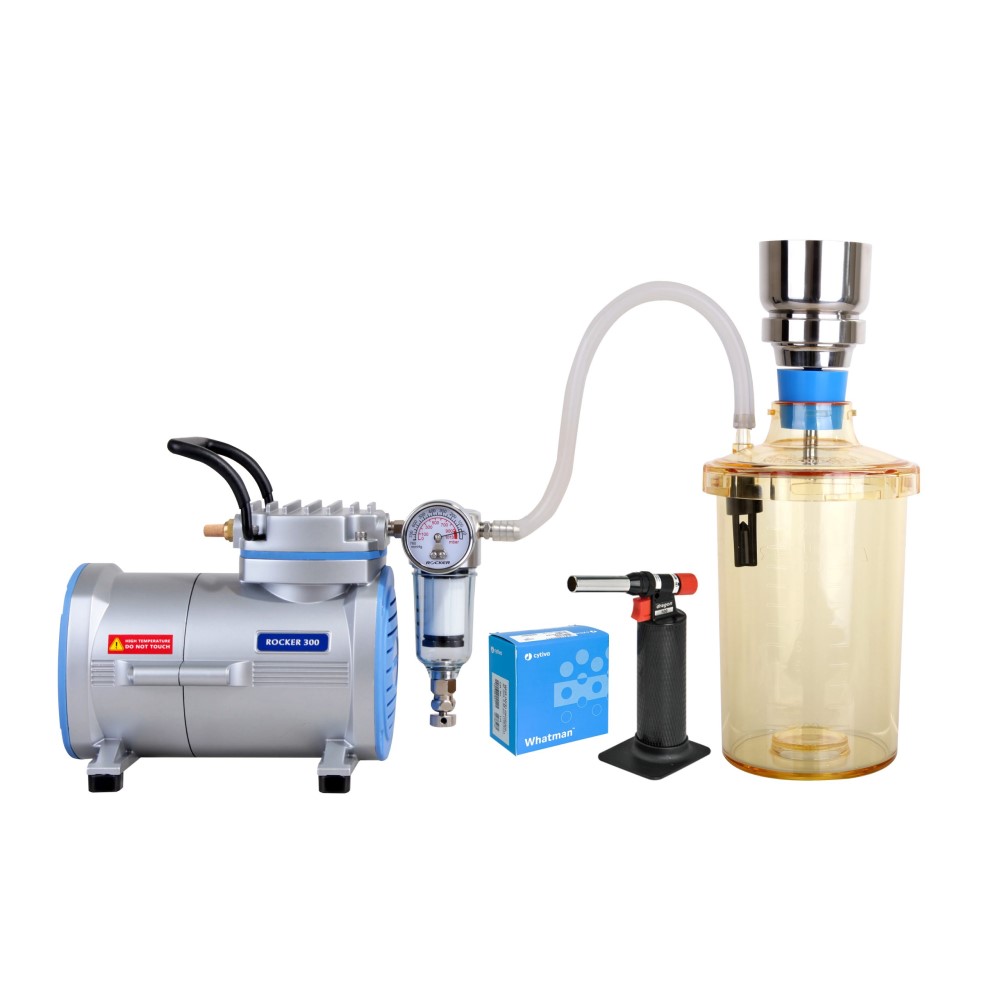

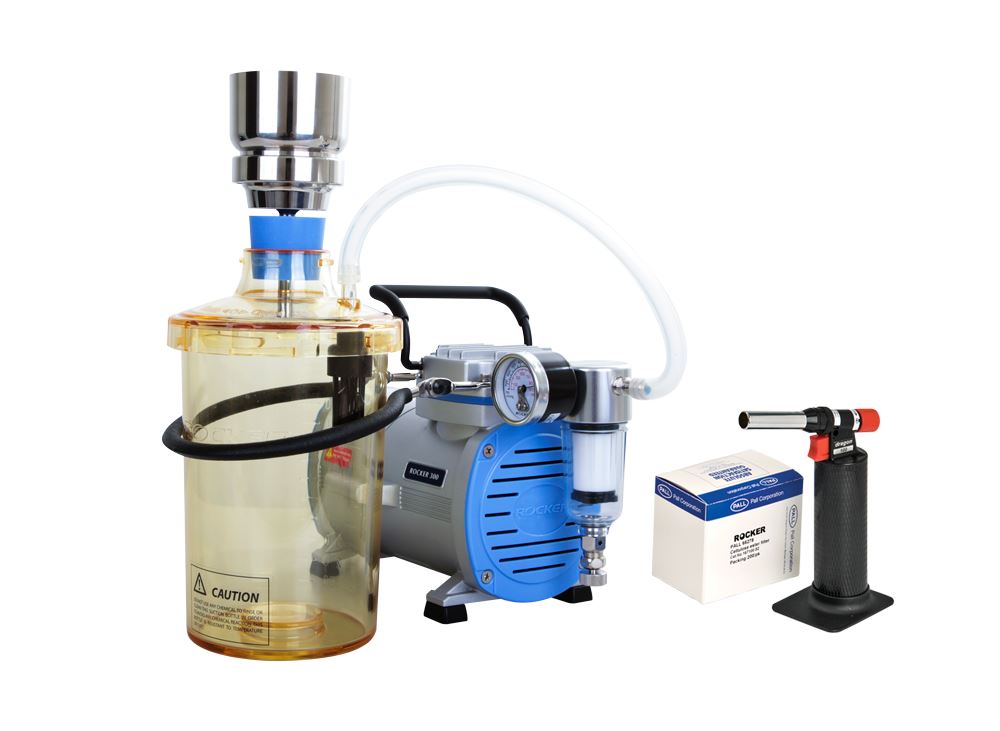

Rocker 300-SF 10 Filtration System Includes
* Rocker 300, Oil Free Vacuum Pump
* SF 10, Stainless Steel Filtration Set
* Dragon 100, Torch Burner
* MCE Membrane, 47 mm, 0.45 μm, 100/PK
* Silicone Tube (1 m)
Rocker 300 Oil-free Vacuum Pump Specification
| Rocker 300: 110V/60Hz | Rocker 300: 220V/50Hz |
▸ Max. power: 65W ▸ Max. current: 0.7A ▸ Max. vacuum: 99 mbar ▸ Max. flow rate: 23 L/min ▸ Motor rotation speed: 1750 RPM ▸ Horse power: 1/8 HP ▸ Noise level: 50 dB ▸ Hose barb: ID8 (5/16 inch) ▸ Net weight: 4.1 Kg ▸ Dimension (LxWxH): 26.8 x 13.5 x 20.4 cm ▸ Vacuum Regulator: Yes ▸ Overflow protection: Yes ▸ Thermal protection: Yes | ▸ Max. power: 60W ▸ Max. current: 0.3A ▸ Max. flow rate: 20 L/min ▸ Motor rotation speed: 1450 RPM ▸ Horse power: 1/8 HP ▸ Noise level: 50 dB ▸ Hose barb: ID8 (5/16 inch) ▸ Net weight: 4.1 Kg ▸ Dimension (LxWxH): 26.8 x 13.5 x 20.4 cm ▸ Vacuum Regulator: Yes ▸ Overflow protection: Yes ▸ Thermal protection: Yes |
Filtration System Ordering Information
| Part Number | Description |
167306-22 〔 220V, 50Hz 〕 | Rocker 300 – SF 10, Vacuum Filtration System, complete set includes : * Rocker 300, Oil Free Vacuum Pump * SF 10, Stainless Steel Filtration Set * Dragon 100, Torch Burner * MCE Membrane, 47 mm, 0.45 μm, 100/PK * Silicone Tube (1 m) |
197010-32 | SF10, Stainless Steel Filtration Set |
Filtration System Features:
◆ No air pollution, maintenance free
Rocker 300 vacuum pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.
◆ Overflow protection
Both Rocker 300 and the waste bottle come with a built-in overflow proteciton to keep the filtrate from overflowing when bottle is full.
◆ Autoclavable and shatterproof
The waste bottle and filter holder are made of engineering plastics or SS316 stainless steel which are shatterproof, high temperature resistance and autoclavable.
