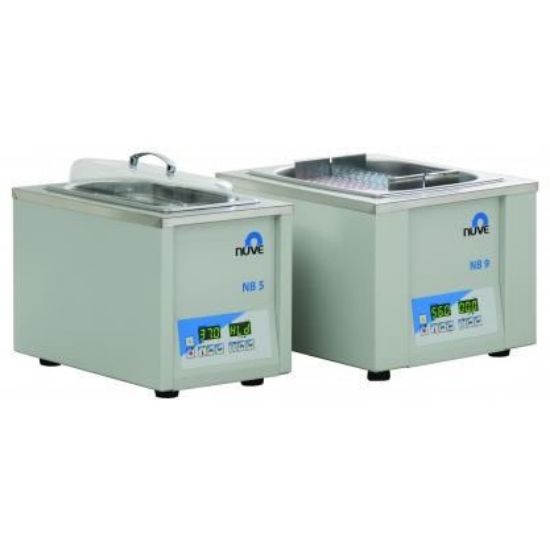

Laboratory Equipment NB 9 Water Bath NB 9

7 Litre Water Bath
SKU: NB 9
Manufacturer: Nuve
Pack Size: 1



Apparently simple, NB series of unstirred water baths is nevertheless controlled by N-Prime™ microprocessor system giving excellent temperature precision, assisted by the triple insulation, for this class of instrument. A timer enables set protocols to be observed.

Most of the footprint of the water bath is usable to accept samples, since there is no pump, circulator or heater inside the chamber. A convenient drain permits fast discharge of the water. Their large displays are easily visible from across the laboratory.

Designed for many general and special applications in microbiology, research and industrial laboratories.

Tank volume:9,5 liters
Useful volume: 7 liters
Temperature range: Ambient Temperature +5°C to 99,9°C
Interior chamber: Stainless steel
N-Prime™ programmable PID microprocessor control system
Easy programming with one button, just turn and push
Large bright digital display for temperature and time
Password protected menu to secure the operation
Programmable alarm limits
Internal memory up to 125 days
Data recording on memory stick by means of USB port
Timer: 1 minute to 100 hours and hold position
Delayed start timer: 1 min. to 99,9 hours
Triple insulation
Safety thermostat to prevent dry running
Int. dim. (WxDxH): 240x300x150 mm
Ext. dim. (WxDxH):325x400x275 mm
230 V - 50/60 Hz



 FACTORY FITTED OPTION

NB XXX WFWi-Fi connection for N-Mobile™

 ACCESSORIES

K 04 290Plexiglass lid for NB 5 (Resists up to 60°C)
K 52 010Stainless steel lid for NB 5
K 04 286Plexiglass lid for NB 9 (Resists up to 60°C)
K 52 007Stainless steel lid for NB 9
K 04 289Plexiglass lid for NB 20 (Resists up to 60°C)
K 52 003Stainless steel lid for NB 20

K 52 008Lid with 4 holes for NB 9 (Hole dia. 95 mm)
K 52 005Lid with 4 holes for NB 20 (Hole dia. 95 mm)
K 52 006Lid with 6 holes for NB 20 (Hole dia. 95 mm)
K 52 014Lid with 8 holes for NB 20 (Hole dia. 95 mm)

A 08 051Tube rack 52xØ 13 mm, wide 70 mm
A 08 050Tube rack 30xØ 16 mm, wide 70 mm
A 08 021Tube rack 27xØ 18 mm, wide 70 mm
A 08 049Tube rack 12xØ 30 mm, wide 70 mm



NB 9 Brochure Download:


Attribute nameAttribute value
Pack Size1
Capacity7L
Temperature Max100 °C
Temperature Min+5°C
