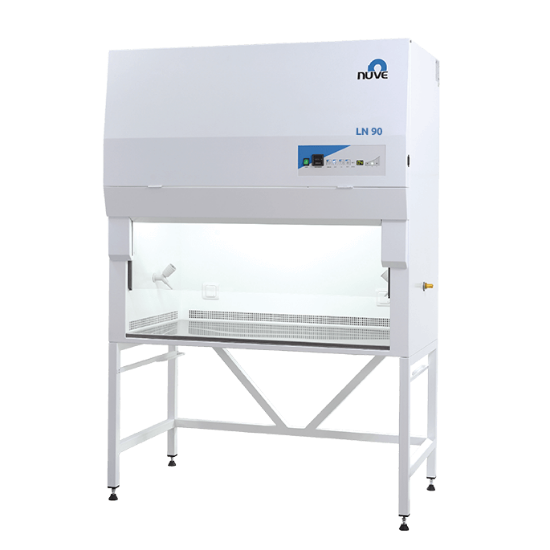

Laboratory Equipment Laminar Flow Cabinets LN 090

LN090
SKU: LN 090
Manufacturer: Nuve
Pack Size: 1



Designed for those applications with non-hazardous materials, in a particle-free environment for complete product protection. Products handled include non-pathogenic biological samples, cell and tissue cultures, in the pharmaceutical, electronics, optics and food industries.

LN Series Vertical Laminar Flow Cabinets offer a comfortable experience with diffused lighting reflected from white surfaces and have a very low noise blower. It is virtually impossible to operate under incorrect conditions since a microprocessor automatically maintains the airflow at the standard 0,4 m/s. Audible and visible alarms warn of any out of range operation.

An optional closing panel incorporating UV light is piloted by a preset 15 minute timer for efficient sterilization and maximum lamp economy. Recycling of the majority of the air ensures maximum prefilter and HEPA filter life. When there are short periods between use, the airflow can be set to half speed, extending filter life and reducing the time to attain clean chamber conditions to just 3 or 4 minutes. End channels for air mean a shallow depth for installation in the most limited space.

VERTICAL LAMINAR AIR FLOW CABINET
Perfect product protection
Microprocessor control system
Digital display for airflow speed
Audible and visual alarm for lower and higher airflow speed
Elapsed hour counter
Automatic speed compensation
Partial recirculation of HEPA filtered air
Prefilter with 85% efficiency for particles ≥ 0,5 µm
HEPA filter with 99,995% efficiency for particles ≥ 0,3 µm
High light intensity and low noise level
2xPower outlets as standard
Int. dim. (WxDxH):  890x630x630 mm
Ext. dim. (WxDxH): 1050x790x1390 mm
230 V-50 Hz.



 ACCESSORIES

S 17 004Support stand for LN 090
S 17 003Support stand for LN 120
M 08 022Gas valve
M 08 020Vacuum valve
K 04 266Front enclosure with U.V. Light for LN 090
K 04 267Front enclosure with U.V. Light for LN 120
F 06 041HEPA filter LN 090
F 06 042HEPA filter LN 120
F 06 029Prefilter LN 090
F 06 026 Prefilter LN 120



LN 090 Brochure Download:


Attribute nameAttribute value
Pack Size1
