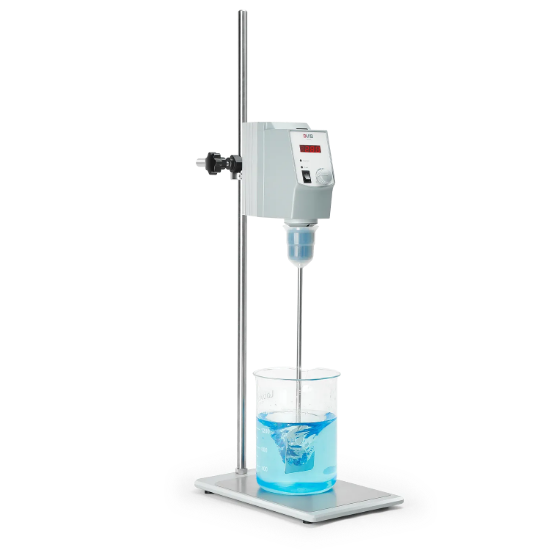

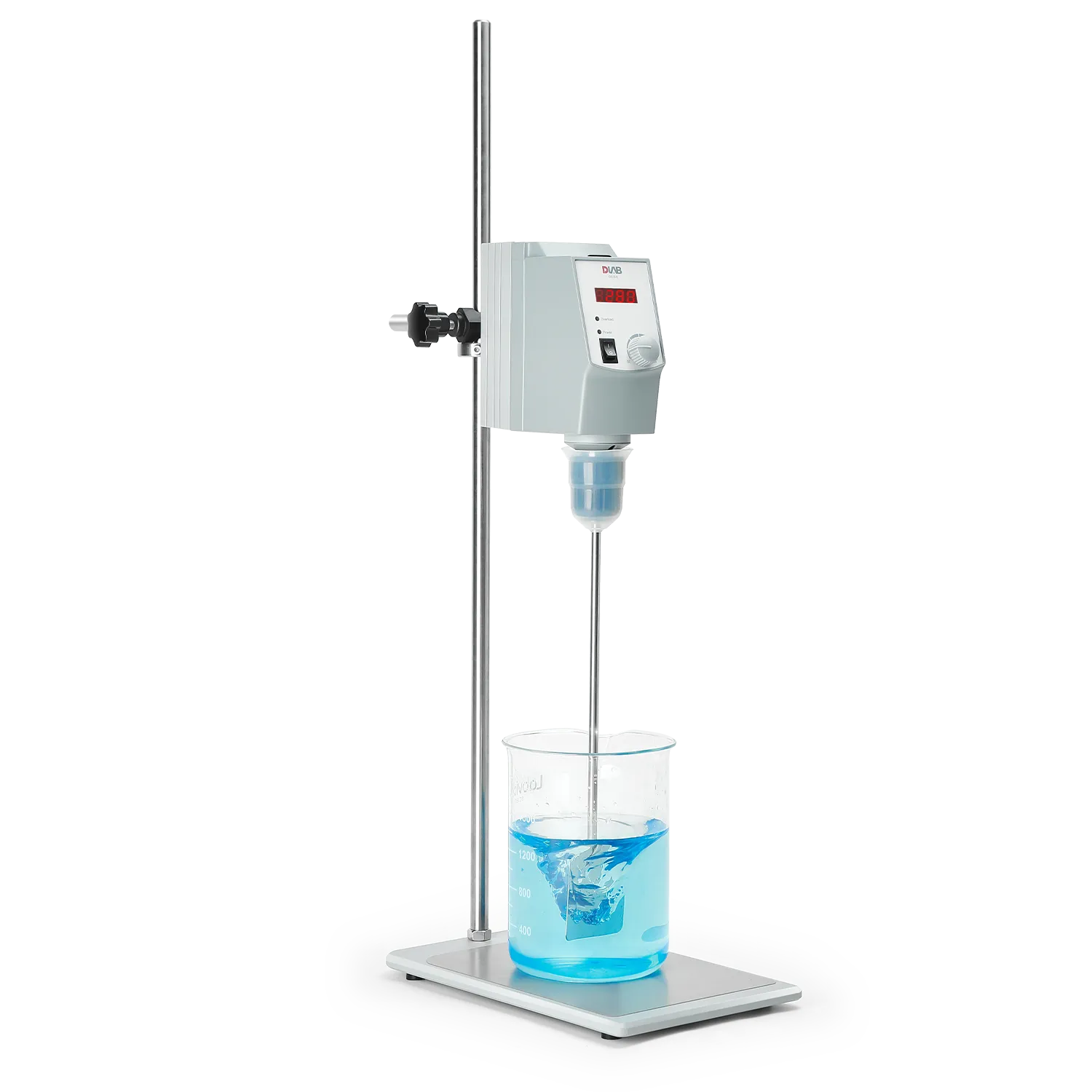

OS20-S package,Overhead Stirrer 8033100200+18900605

OS20-S package, OS20-S main body 8033100200 +Universal plate stand18900605 +Crossed stirrer18900071

SKU: 8033100200+18900605

Manufacturer: Dragon Lab

Pack Size: 1

OS20-S package:

OS20-S main body 8033100200 +Universal plate stand18900605 +Crossed stirrer18900071

----------------------------------

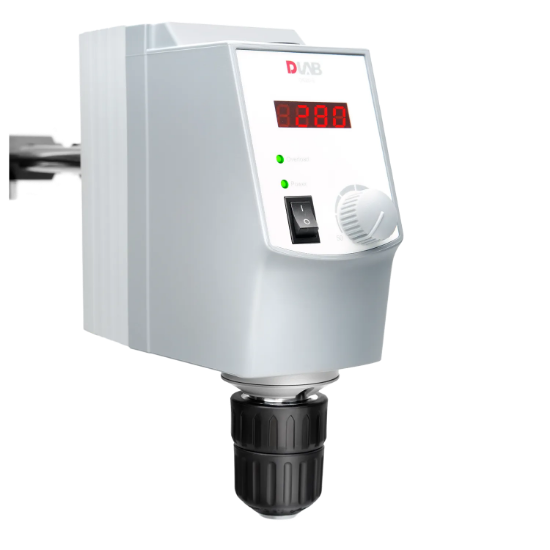

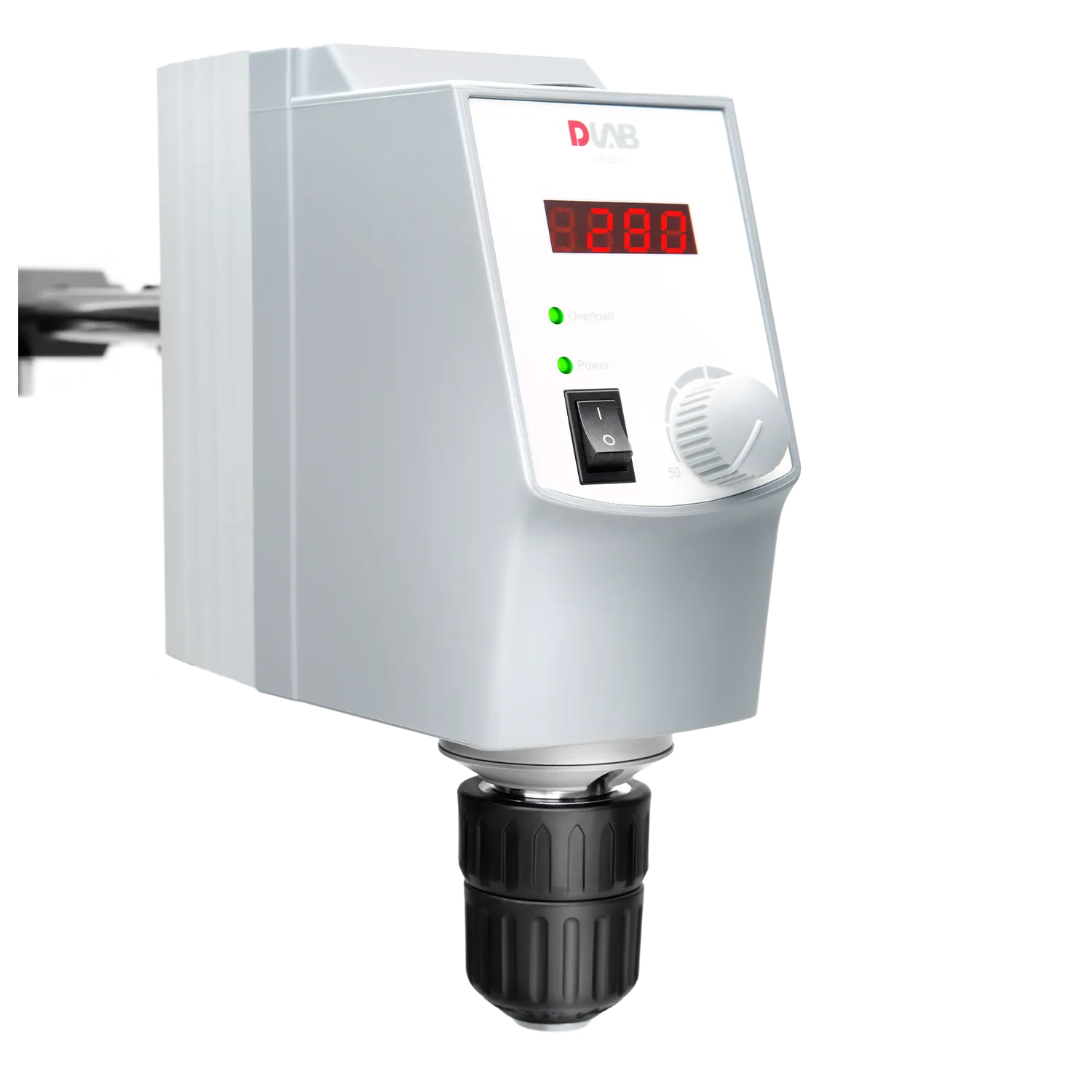

OS20-S LED Overhead Stirrer

High reliability and outstanding performance
Wide range of speed from 50 to 2200rpm
Brushless DC motor for long life, maintenance free and explosion proof
LED screen for monitoring actual speed
Safety circuits allow for safe stop function in anti-stall or overload conditions
Large chuck diameter for many shaft types

PRODUCT PARAMETERS
Cat.No.	8033100200
Max. stirring quantity[H2O]	20L
Speed range	50-2200rpm
Max. torque	40N·cm
Viscosity max.	10000mPa·s
Motor type	Brushless DC motor
Speed display	LED
Overload protection display	LED
Chuck clamp range diameter	0.5-10mm
Protection class	IP21
Motor input power	60W
Motor output power	50W
Power	70W
Voltage,Frequency	100-240V, 50/60Hz
Dimension[WxHxD]	83 x 220 x 186mm
Weight	2.8kg
Permissible ambient temperature	5-40℃
