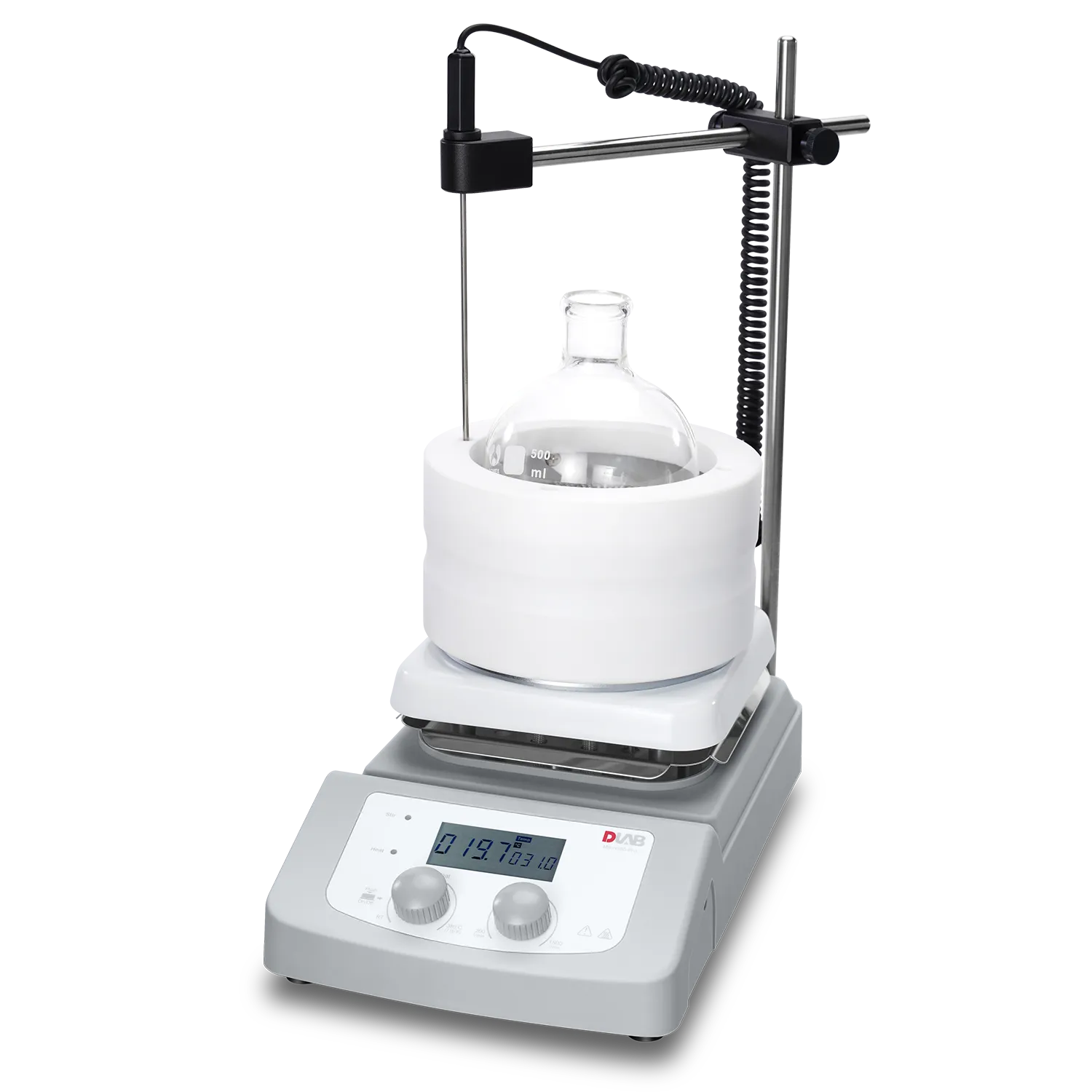

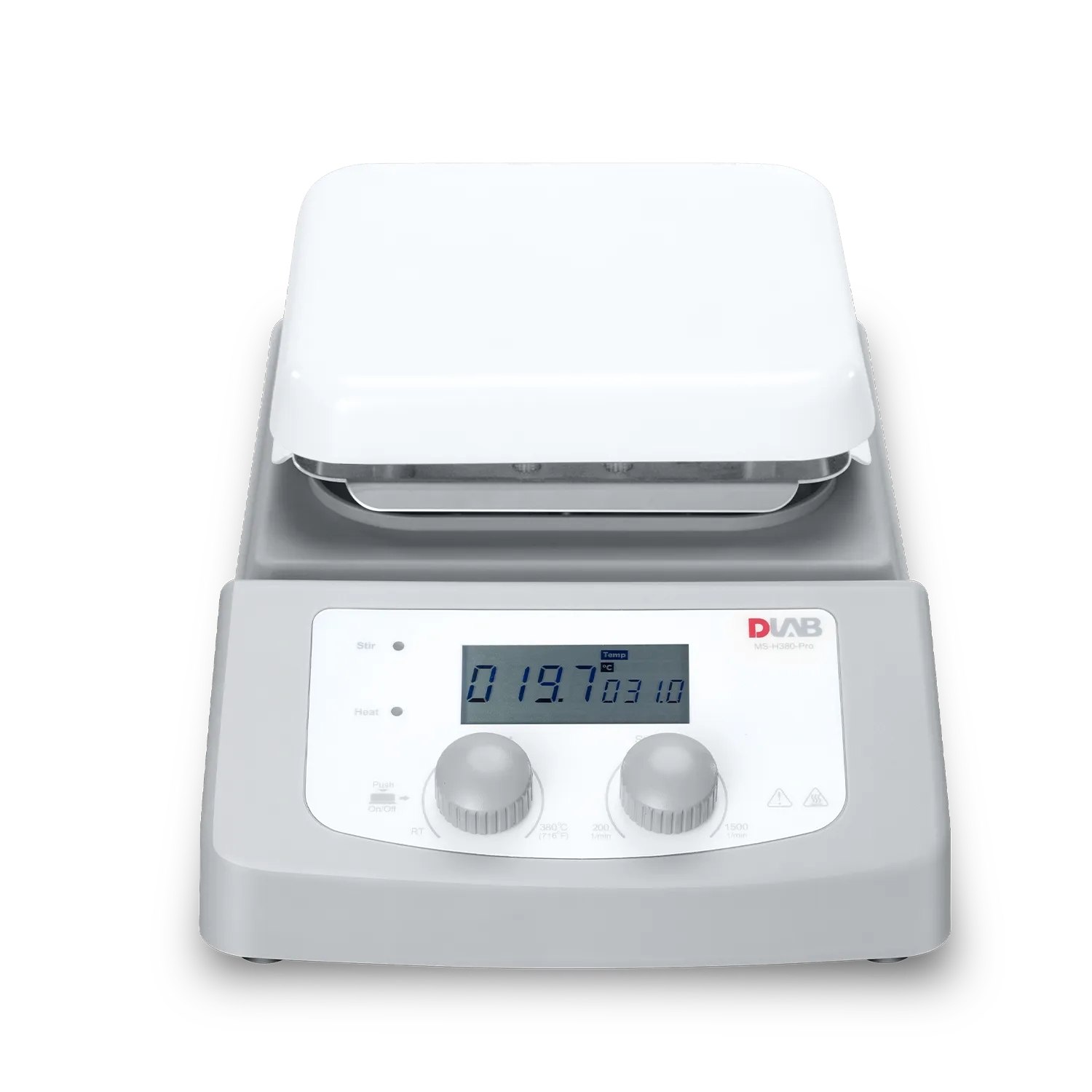

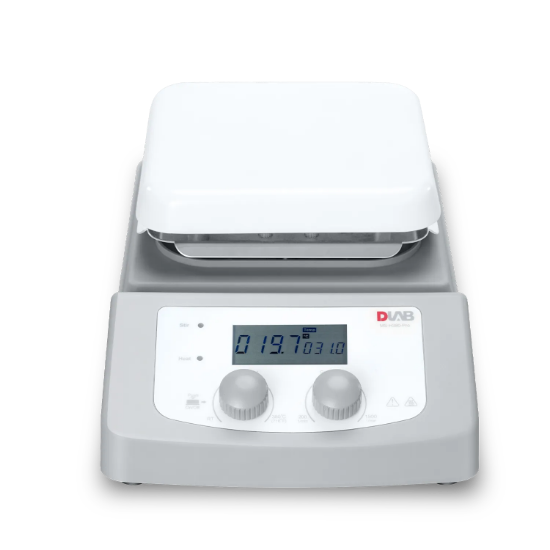

MS-H380-Pro, Hotplate Magnetic Stirrer - 380°C 8030261115

 Specifications

MS-H380 Pro

Work plate Dimension

140x140mm

Work plate material

Aluminum cover with ceramic coating

Motor type

Brushless DC motor

Motor rating input

2.4W

Motor rating output

1.8W

Power

510W

Heating output

500W

Voltage

100-120/200-240V  50/60Hz

Stirring positions

1

Max. stirring quantity[H2O]

5L

Max. magnetic bar[length]

50mm

Speed range

200-1500rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room temp.+5°C - 380°C

Over  heat Protection

420°C

Temperature  display accuracy

±0.1°C

External  temperature sensor

PT1000  (accuracy ±0.5°C)

Control accuracy of sensor

±20rpm

Protection class

IP21

Dimension [W x D x H]

320x180×108mm

Weight

2.2kg

Permissible ambient temperature and humidity

5-40°C 80%RH
