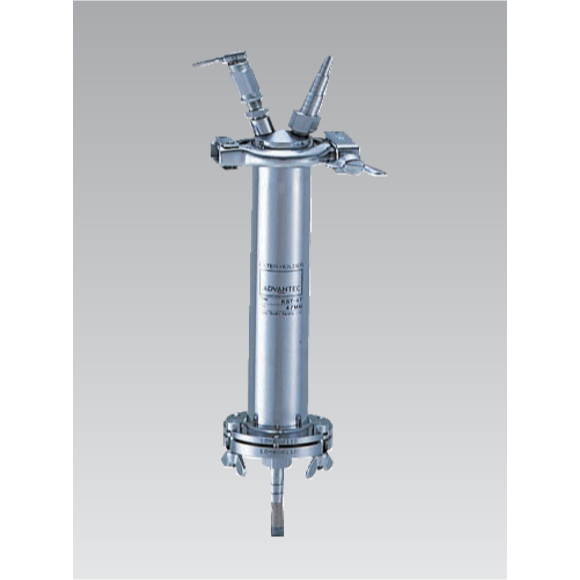

KST-47 200mL RESERVOIR 304SS KST-47

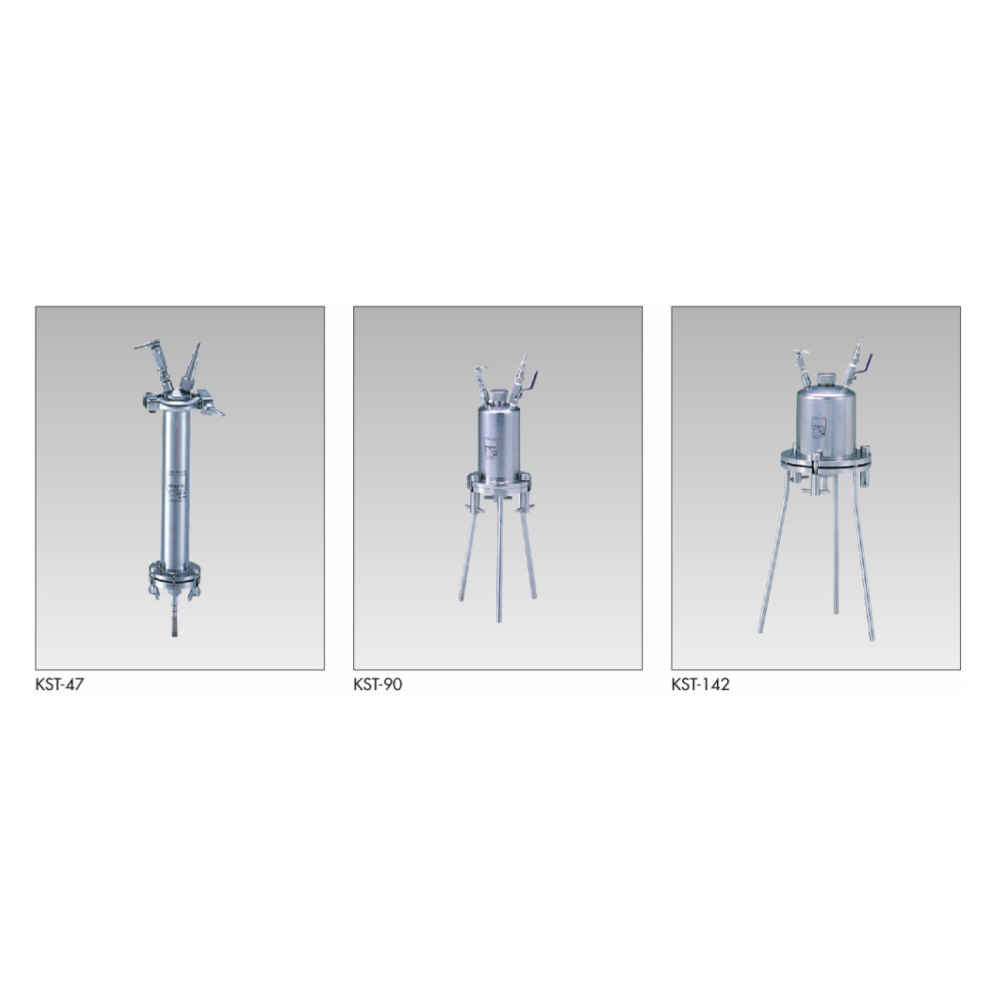

KST-47

KST-90

KST-142

Materials:

Body

SUS304

Support screen

Photoetched SUS316

PTFE coated photoetched SUS316

O-rings (standard)

Silicone

Gasket (standard)

Silicone/PTFE

PTFE

Connections:

Inlet

1/4" PS

1/4" PT

Inlet adapter

Stepped hose barb (7 mm, 10.5mm, 13mm)

Ball valve with stepped hose barb (7 mm, 10.5 mm, 13 mm)

Outlet

1/4" PS

3/4" PS

Outlet adapter

9.5 mm hose barb

11 mm hose barb

Pressure:

Inlet

0.49 MPa (71 psi)

Differential

0.29 MPa (42 psi)

Vent relief valve

0.44 ± 0.04 MPa (64 ± 6 psi)

Weight:

 1 kg (2.2 lb)

5 kg (11 lb)

 6 kg (13 lb)

Capacity:

200 mL

750 mL

1,500mL

Membrane Compatibility:

Membrane filter size

47 mm

90 mm

142 mm

Prefilter size

35 mm

76 mm

124 mm

Filtration area

12.5 cm2

45.3 cm2

113 cm2
