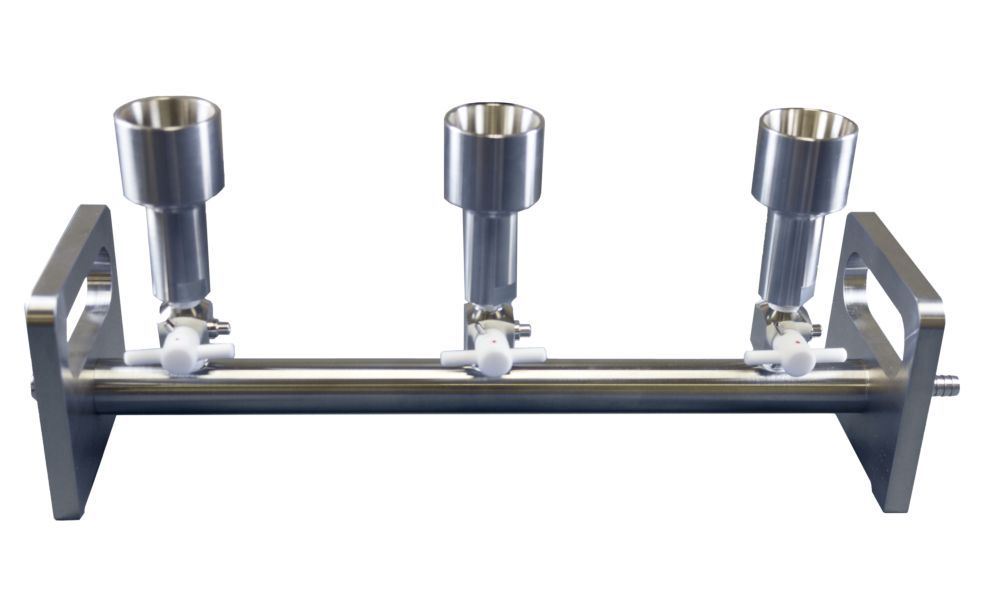

KM-3 MANIFOLD Stainless Steel Vacuum Manifolds, KM-3

KM-3 MANIFOLD Stainless Steel Vacuum Manifolds

SKU: KM-3

Manufacturer: Advantec

Pack Size: 1

Stainless Steel Vacuum Manifolds

Autoclavable
3-way valve is useful when the manifold is used under closed conditions and must be vented to atmosphere without breaking the vacuum connection. 3-way valve vent is female luer slip, accepts standard disposable syringe filter (Page 16) or stainless steel syringe filter hold- er (KS-13, page 93)
Cup accepts a #8A & #8B stopper to adapt microanalysis units and other devices
Sterility Test Manifold features rear mounted flushing manifold for use in bacteria retentive method

Materials:
Body and branches	Type 304 stainless steel
Valves	PTFE stopcock, chrome plated brass body

Connections:
Outlet	1/4" male PT to hose barb fitting connects main manifold to 11mm ID vacuum tubing
Standard cup	Accepts #8A and #8B stopper

Dimensions:	L x W x H	Distance between stations (center to center)	Weight
	cm	cm	kg
3 station	45.7 x 12 x 17.8	14	5.0
6 station	72.4 x 12 x 17.8	14	8.0

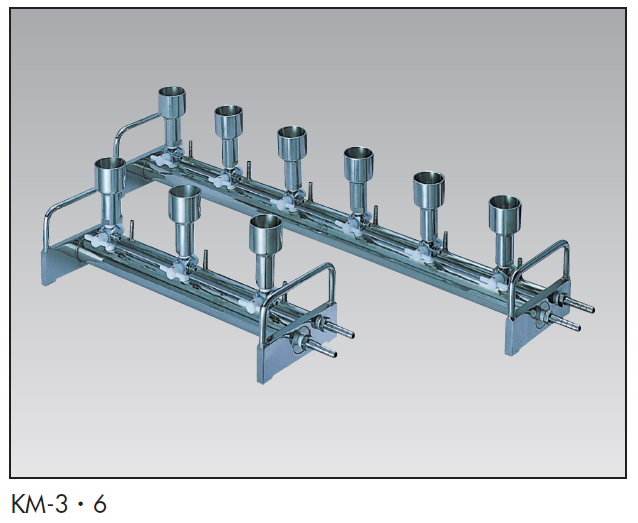

Model	KM-3N	KM-6N	KM-3	KM-6
Number of Station	3 station	6 station	3 station	6 station
