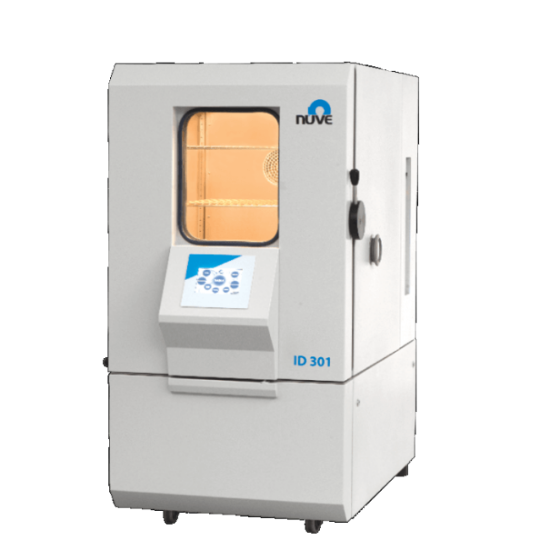

Picture of Laboratory Equipment ID 301 Test Cabinet ID 301

Laboratory Equipment ID 301 Test Cabinet ID 301

Chamber volume: 300 liters
SKU: ID 301
Manufacturer: Nuve
Pack Size: 1



Ideal design for the tests at different climatic conditions and stability, artificial aging and storage tests in industries such as electronic, automobile, automobile components, aircraft and aviation, chemical, plastic, textile, pharmaceutical, construction material, food, packaging and military equipment.

N-Wise™ control system for continuous optimization of climatic conditions and full information with 7’’ colourful touch screen mounted on the door offer ergonomic operations. Heating and cooling ramps can be programmed as °C/minute or time period

Perfect sample observation is guaranteed through the quintuple glass window with heating against condensation. Providing the ultimate in insulation, injected foam and aluminum panels are combined with glass wool; the door is fitted with double seals.



CLIMATIC TEST CHAMBER  POWERED BY N-Wise™
Volume: 290 litres
Temperature range: -40°C to +150°C
Humidity set range: 15% to 98% (between 10°C to 90°C)
Programmable N-Wise™ control system
7’’ colourful touch display
Equipped with Wi-Fi connection for N-Mobile™
2 GB internal memory
Full traceability by keeping the operating parameters digitally and
graphically in the memory
USB port to store the temperature and humidity records on memory stick
Rapid support by sending e-mails with the details of the failure
Timer: 1 minute-20.000 hours (Each step 1000 hours)
20 program memories + 1 program without step control
20 programmable steps for each program
Number of program repetition: 1-99
RS 232, Ethernet and USB ports
Digital safety thermostat
Internal material: Stainless steel
Two shelves
Internal dimensions (WxDxH): 605x625x785 mm
External dimensions (WxDxH): 950x1580x1650  mm
400 V - 50 Hz, 3 phases



 FACTORY FITTED OPTION
ID XXXAAutomatic water supply unit

 OPTIONS
A 08 191AlerText™ GSM alarm module
I 01 067Portable Pt-100 temperature sensor
A 08 236NuveCloser™ Software for PC (operates through internet)

 ACCESSORIES
R 01 128Shelf for ID 301
P 03 566Shelf carrier for ID 301 (Should be ordered 4 pcs. for each shelf)



ID 301 Brochure Download:


Attribute nameAttribute value
Volume290L
Pack Size1
