Freezing Box Accessories, Ice Free Freezing Block, 0.5℃~4℃, 1/pk, 1/cs 200902

Freezing Box Accessories, Ice Free Freezing Block, 0.5℃~4℃, 1/pk, 1/cs
SKU: 200902
Manufacturer: Nest
Pack Size: 1





Cat.No.NameSize(mm)Weight(g)Application
200103Non-ice Box152x170x1231300

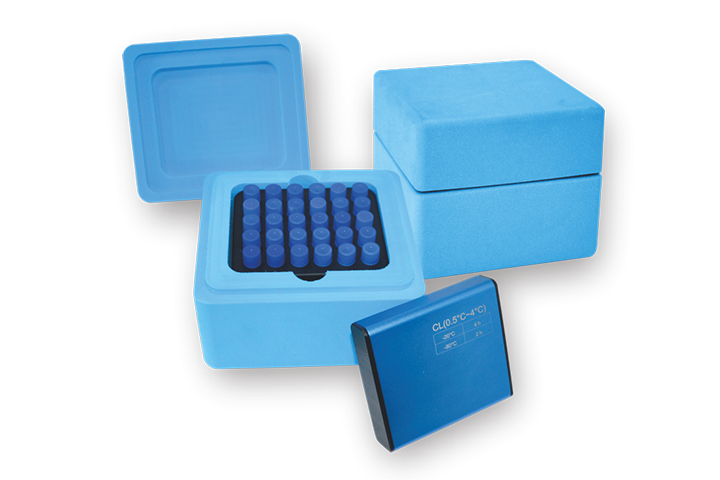

200901, One Ice Free Cool Box
200902, One Cooling Core
200904, One 2 mL Module
200901Non-ice Box152x170x123140Free of ice core and modules, various refrigeration sources and modules are available



Temperature RangeCooling sourceCooling Source DisposeModule processing
 Holding time
(open)

Holding time
(close)
Schematic diagram of heat preservation time
0.5℃~4℃
200902

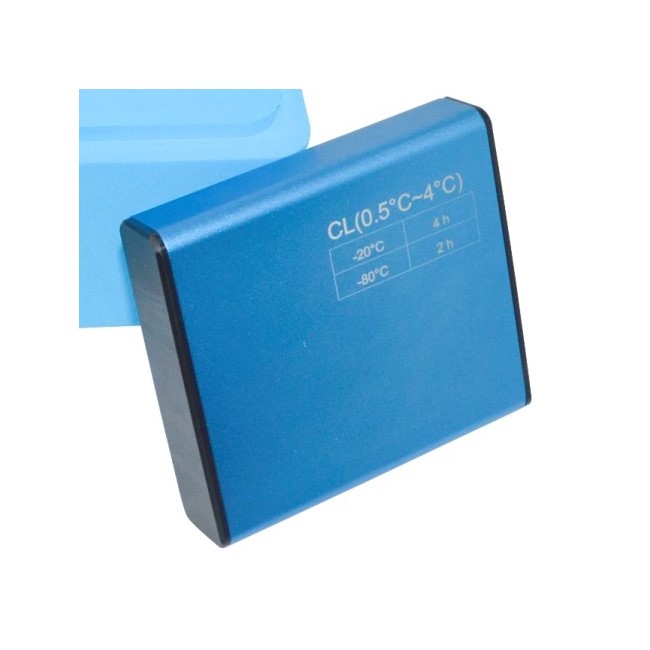

Cold core
Put in minus 20 ℃ more than 4 hours, at indoor temperature placed 10 minutes before use.Precooling to 0.5℃~4℃4h6h
0.5℃~4℃Put in minus 20 ℃ more than 4 hours,direct use.Indoor temperature
0.5℃~4℃Put in minus 80 ℃ more than 4 hours,direct use.
-18℃~-4℃
200903
Frozen core
Put in minus 20 ℃ more than 6 hours,Precooling in -20℃ half an hour3h4h
-18℃~-4℃Put in minus 80 ℃ more than 3 hours,
-78℃~-30℃Pieces of dry iceAbout 200g is directly put into the bottom of the boxPut the indoor temperature module directly4h5h



Cat.No.NameTemperature RangeUltra cold storage freezer temperatureFreezing timeSize(mm)
200902Cold core0.5℃~4℃-20℃4h+105 x 100 x 26
0.5℃~4℃-80℃2h+105 x 100 x 26
200903Frozen core-18℃~-4℃-20℃6h+105 x 100 x 26
-18℃~-4℃-80℃3h+105 x 100 x 26



Cat.No.NameSize(mmApplication
2009042ml module119*101*38
2 mL Tube (30-Well, φ12.6mm)
2009051.5ml module119*101*38
1.5 mL Tube (48-Well, φ11mm)
2009065ml module119*101*38
5 mL Tube (30-Well)
200907PCR module119*101*38
PCR Tube or 96-Well Plate (φ7mm)



Attribute nameAttribute value
Pack Size1
