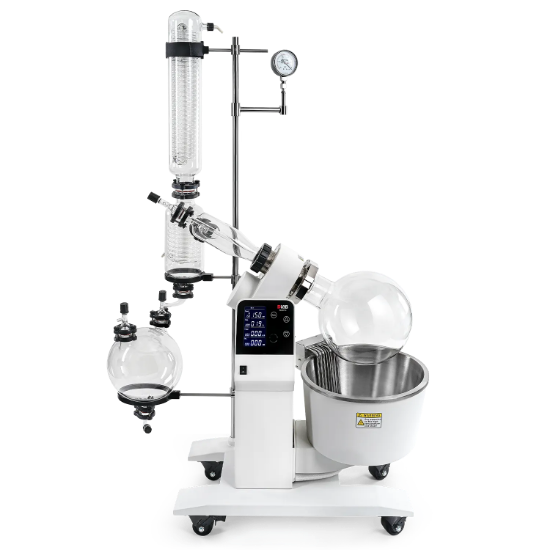

RE200-Pro Package , Rotary Evaporator 6030112124

20L Rotary Evaporator with set of glassware vertical free (package seperately)
SKU: 6030112124
Manufacturer: Dragon Lab

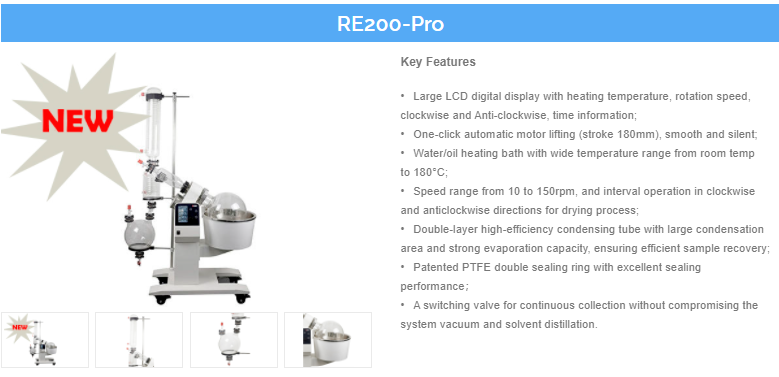

RE200- Pro 20L Industrial Digital Rotary Evaporator
  • Large LCD digital display with heating temperature, rotation speed, clockwise & anticlockwise and time information
  • One-click automatic motor lifting (stroke 180mm), smooth and silent
  • Water/oil heating bath with wide temperature range from RT to 180 °C
  • Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process
  • Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery
  • The connector device allows for easy and quick installation of the evaporating flask.
  • PTFE double sealing ring with excellent sealing performance
  • Switch valve for continuous collection without compromising the system vacuum and solvent distillation
PRODUCT PARAMETERS
Cat.No.6030112124
Evaporating flask volume20L
Temperature rangeRoom temp. -180℃ (water and oil bath)
Temperature control accuracyWater: ±1℃ ;Oil: ±3℃
Speed range10-150rpm
Direction of RotationClockwise and counterclockwise
Evaporation capacityMax.4.0L/h (water)
Ultimate vacuumLess 2.6hpa
Temperature controlMicro processer PID control
DisplayLCD (temperature/speed/clockwise and Anti-clockwise/time)
TimerYes
Time Setting Range0-999min
Lifting modeMotorized
Lifting stroke180mm
Heating bath size
Ø450×240mm
Motor TypeBrushless DC motor
Heating Power4400W
Power4600W
Voltage/Frequency220V,50/60Hz
Dimension[D×W×H]1160×600×1860mm
Weight106kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity≤80% RH
Protection Class
IP20
Safety featuresMotor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection
ApplicationsSuitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.





Attribute nameAttribute value
ModelRE200- Pro
Evaporating flask volume20L
Speed range10-150rpm
Power4600W
