Pre-sealed vial-closure combination screw N 9 (702283 + 702288.1) 702863

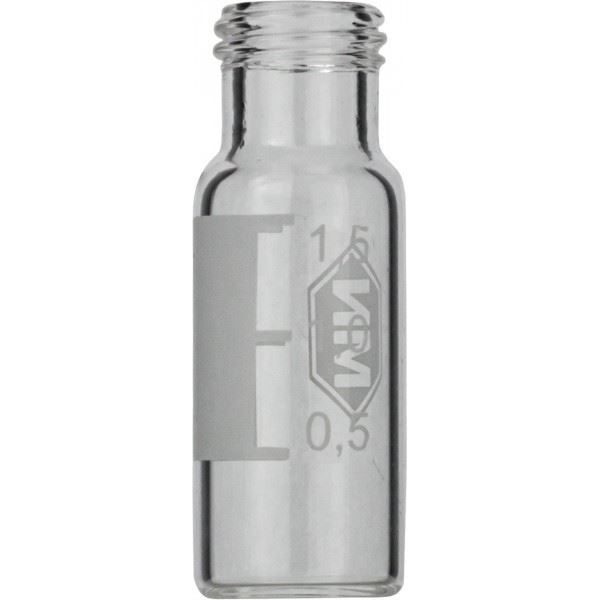

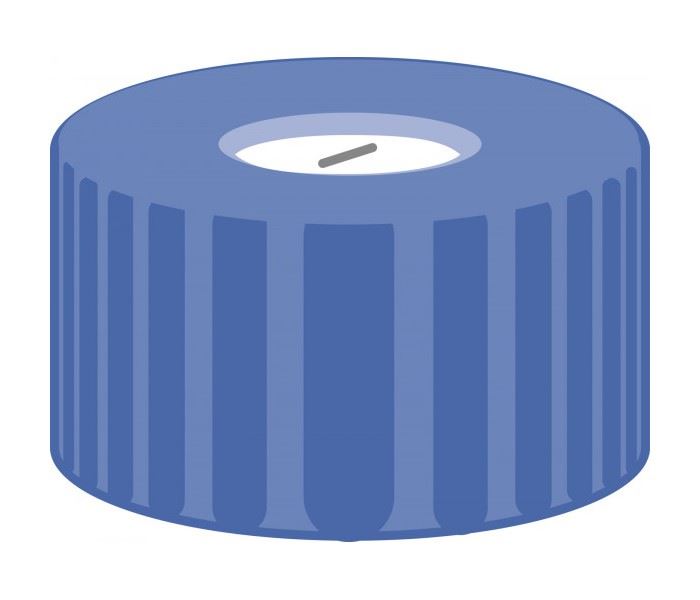

Pre-sealed vials 702283: 1.5 mL Screw Neck Vial N 9 outer diameter: 11.6 mm, outer height: 32 mm clear, flat bottom, wide opening, label + scale pre-screwed with: 702288.1: N 9 PP screw cap, blue, center hole Silicone white/PTFE blue, slit Hardness: 55° shore A Thickness: 1.0 mm pack of 100
SKU: 702863
Manufacturer: Machery Nagel
Pack Size: 100



Pre-sealed vial-closure combinations can be supplied for various vial and closures types. They are used to reduce the contamination risk in the lab in case of high sensitive analysis (e.g. trace analysis, TOC/VOC). Pre-sealing is done under strict hygienic conditions.

Hazardous materialNo
Type of combi packPre-sealed vial-closure combination N 9
Vial categoryVial
REF vial component702283
Vial typeScrew neck vial
Nominal diameterN 9
Vial materialClear glass, 1st hydrolytic class glass
Vial dimensions11.6 mm x 32.0 mm
Vial diameter11.6 mm
Vial height32.0 mm
Usable volume1.5 mL
Vial openingWide
Writing patchYes
Bottom shape of the vialFlat bottom
Closure typeScrew closure
REF closure component702288.1
Assembling processAssembled
Cap materialPolypropylene (PP)
Cap colorBlue
Cap holeYes
Closure magneticNo
Septa materialSilicone/PTFE
Colors of septa materialWhite/blue
Septa thickness1.0 mm
Septa hardness55° shore A
Recommended application(s)HPLC
Autosampler compatibilitysee vial 702283, closure 702288.1
Selling unit100 pieces
Storage temperatureRT

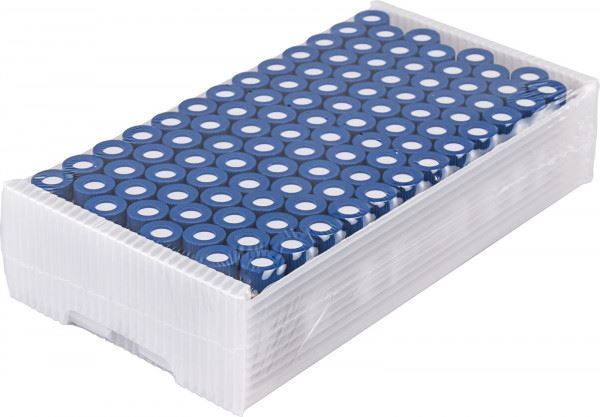

Scope of delivery100x N 9 screw neck vials 702283 pre-sealed with 702288.1



Attribute nameAttribute value
Pack Size100
ColourClear
Vial Top9mm Screw Thread
