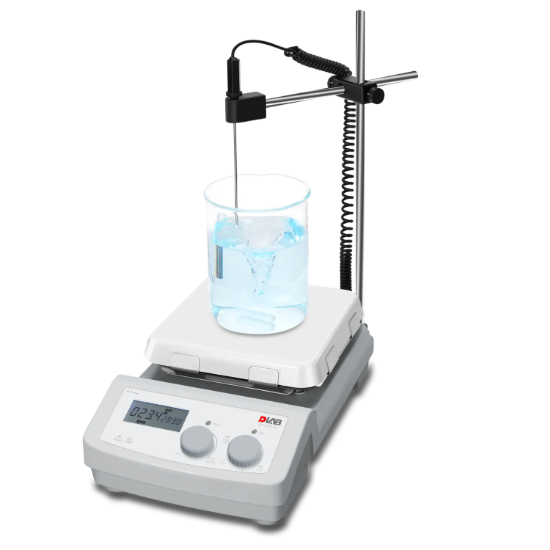

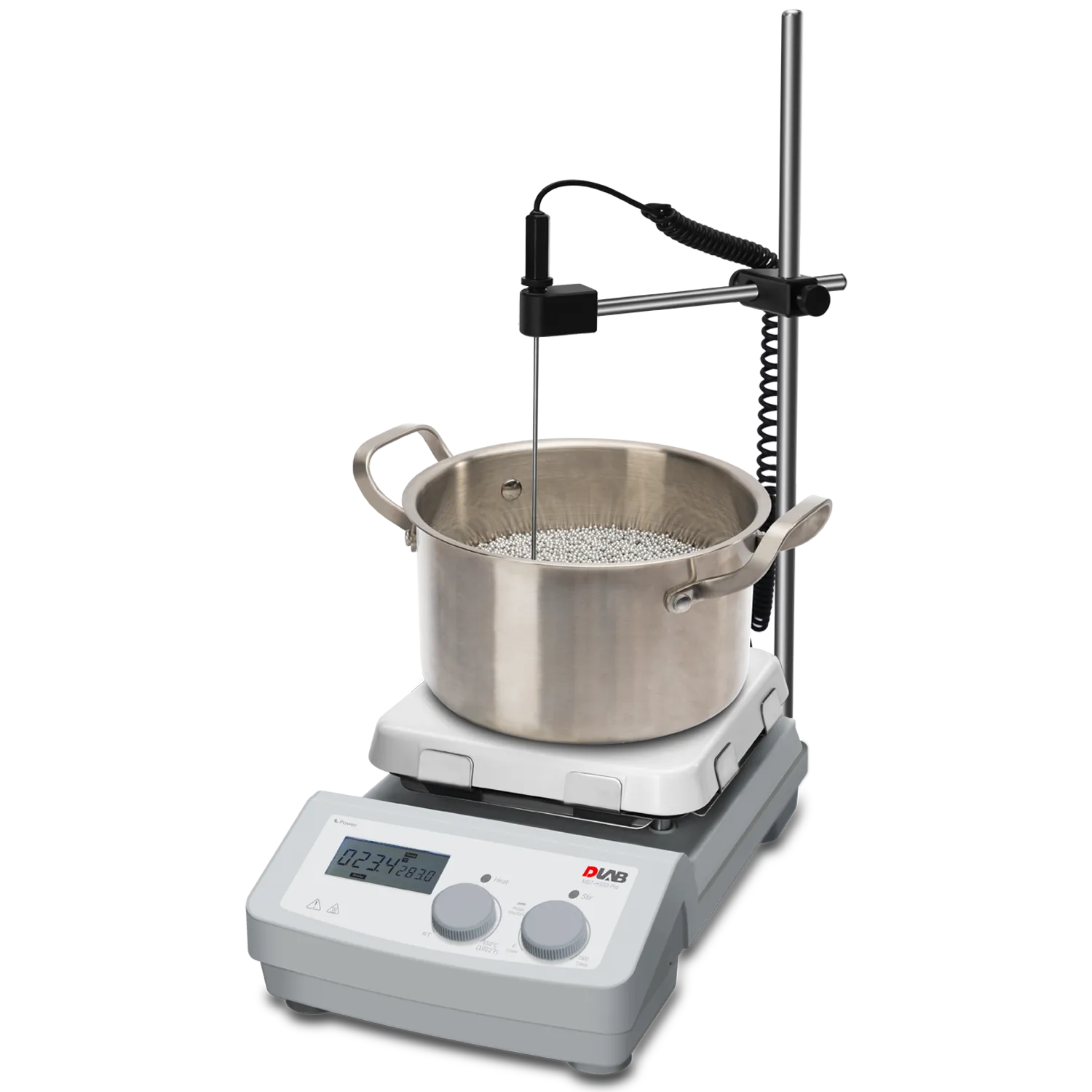

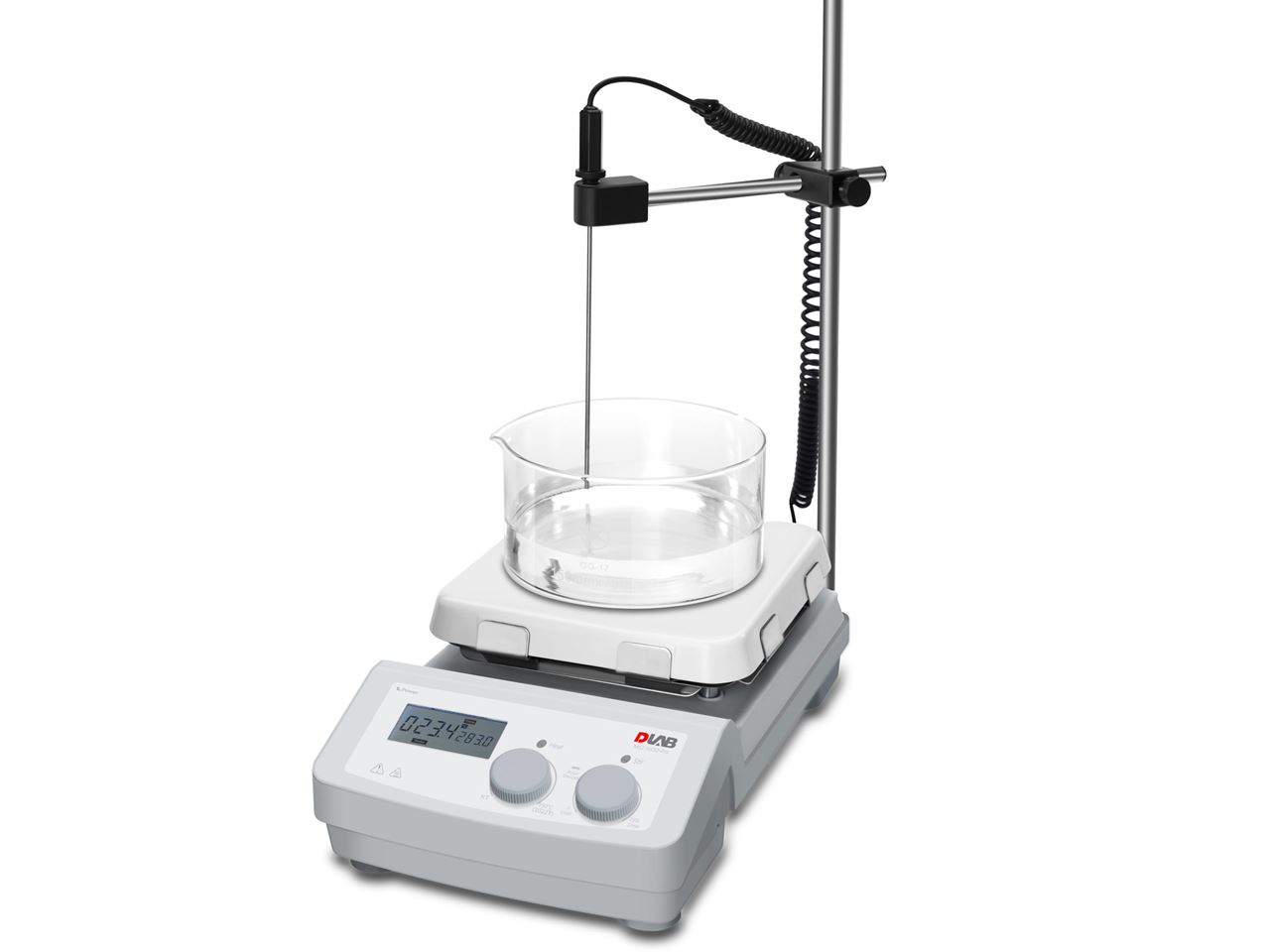

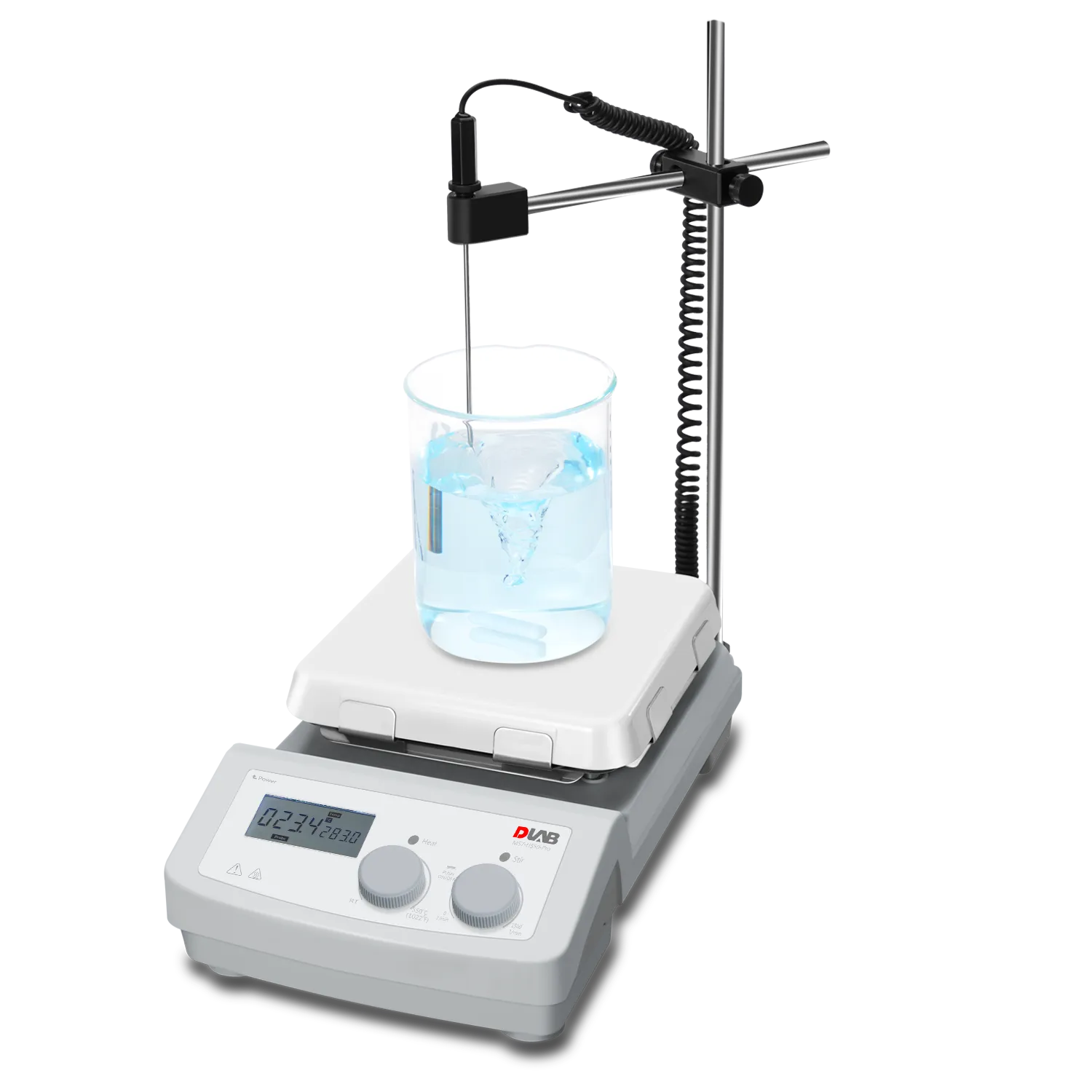

MS7-H550-Pro package 2: Hotplate Magnetic Stirrer (550°C) & PT1000A & Support clamp, 8130122111+18901706

Include:MS7-H550-Pro package 1 (8130122111) + support clamp 18901706 , ( was 8130122111+18900017)
Availability: 1 in stock
SKU: 8130122111+18901706
Manufacturer: Dragon Lab

MS7-H550-Pro package 2:
LCD Digital 7’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate,heating temperature up to 550°C(8030122111)
+ PT1000A (18900016) + support clamp 18901706
-----------------------------------------------------------------
MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
  • LCD displays actual temperature & speed
  • Built-in PID controller ensures safe heating of the medium with overheating protection
  • Maximum heating plate temperature up to 550℃
  • Glass ceramic work plate is resistant to corrosion and is easy to clean
  • External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
  • Digital speed control with maximum range of 1500rpm
  • Outstanding brushless DC motor offers more stirring power
  • Two knobs enable easy adjustment of speed and temperature
  • “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
  • Remote function provides PC control and data transmission
Support clamp of PT1000 , 18901706

Support clamp of PT1000 ,

Vertical bar length:45cm,

stents length:25cm,

Stem diameter:10mm

Specifications

MS7-H550-Pro
Work plate Dimension [W x D]184x184mm (7 inch)
Work plate materialGlass ceramic
Motor typeBrushless DC motor
Motor rating input18W
Motor rating output10W
Power1050W
Heating output1000W
Voltage100-120/200-240V  50/60Hz
Stirring positions1
Max. stirring quantity, [H2O]20L
Max. magnetic bar[length]80mm
Speed range100-1500rpm
resolution ±1rpm
Speed displayLCD
Temperature displayLCD
Heating temperature rangeRoom Temp.-550°C,increment 1°C
Temperature  control accuracy±1 °C (<100°C) ±1%(>100°C)
Overheating protection580°C
Temperature  display accuracy±0.1°C
External  temperature sensorPT1000 (accuracy ±0.2)
"Hot" warning50°C
Data connector RS232
Protection classIP21
Dimension [WxDxH]215x360x112mm
Weight5.3kg
Permissible ambient temperature and humidity5-40°C, 80%RH
Attribute nameAttribute value
TypeMagnetic Hotplate Stirrer
ModelMS7-H550-Pro
Speed range100-1500rpm
Temperature Max550℃
