MS10-H500-Pro package :

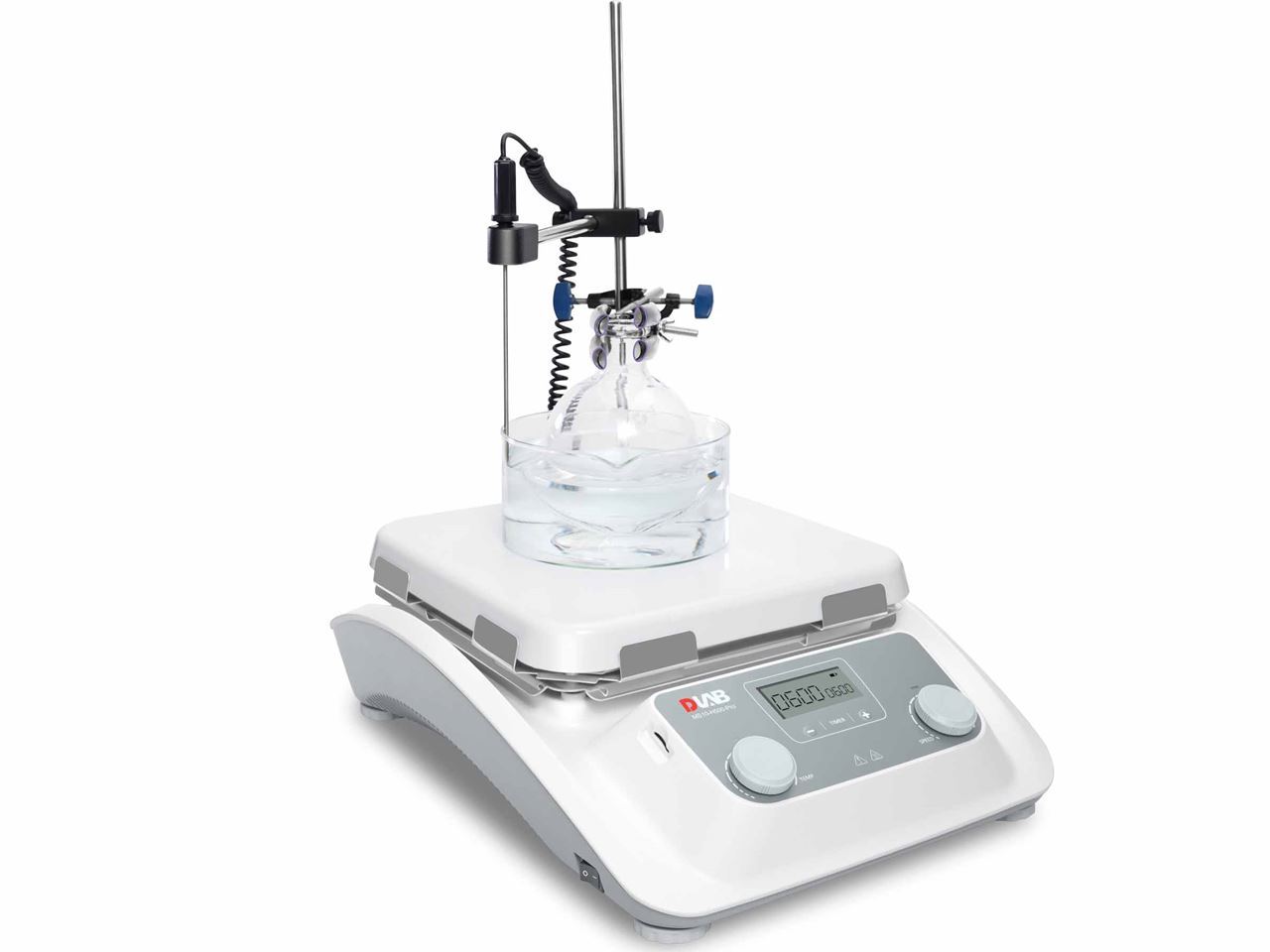

LCD Digital 10’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate,heating temperature up to 500°C(8030132117)+ PT1000A (18900016) + support clamp (18901706)

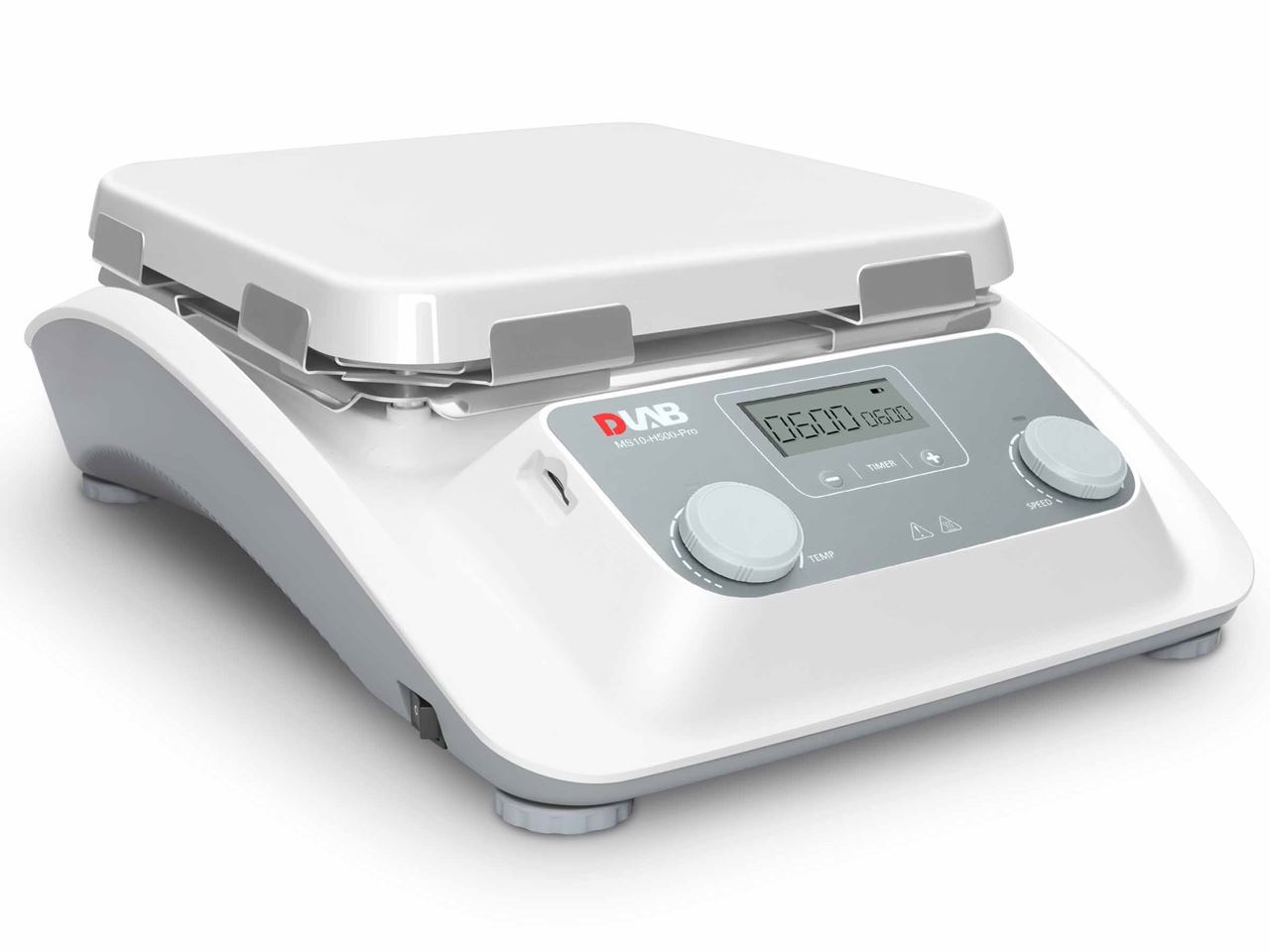

LCD Digital Magnetic Hotplate Stirrer

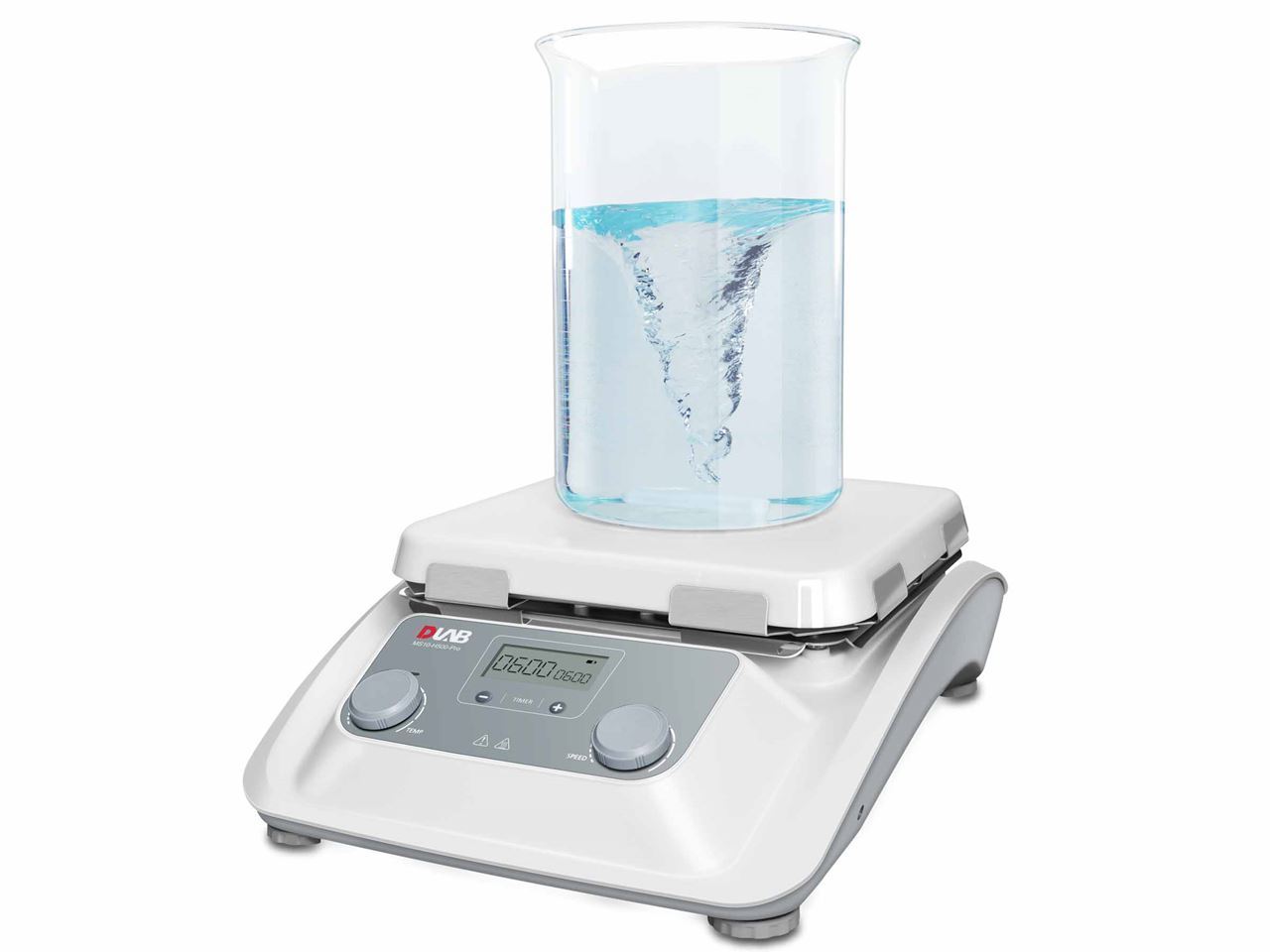

• Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
• LCD display for precise monitoring of speed and temperature .
• External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C
• Digital speed control of 100 ~ 1500rpm
• Max. heating plate temperature 500℃
• The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• Data connector : The SD card also records the instrument's running data in real time
• Timing function: the running time of the instrument can be set.
| PRODUCT PARAMETERS |
| Work plate Dimension [W x D] |
254x254mm(10inch) |
| Work plate material |
Glass ceramic |
| Motor type |
Brushless DC motor |
| Stirring positions |
1 |
| Max. stirring quantity, [H2O] |
30L |
| Max. magnetic bar[length] |
80mm |
| Speed range |
100-1500rpm resolution±1rpm |
| Speed,time, Temperature display |
LCD |
| Timer function |
1min-99h59min |
| Heating temperature range |
Room Temp.-500℃, increment1℃ |
| Temperature control accuracy |
±1℃ (<100℃)±1%(>100℃) |
| Overheating protection |
540℃ |
| Temperature display accuracy |
±0.1℃ |
| External temperature sensor |
PT1000(±0.2℃) |
| "Hot" warning |
50℃ |
| Data connector |
SD card |
| Protection class |
IP21 |
| Power |
1400W |
| Heating output |
1350W |
| Voltage Frequency |
100-120/200-240V 50/60Hz |
| Dimension [WxDxH] |
328x424x138mm |
| Weight |
7.18kg |
| Permissible ambient temperature and humidity |
5-40℃,80%RH
|
