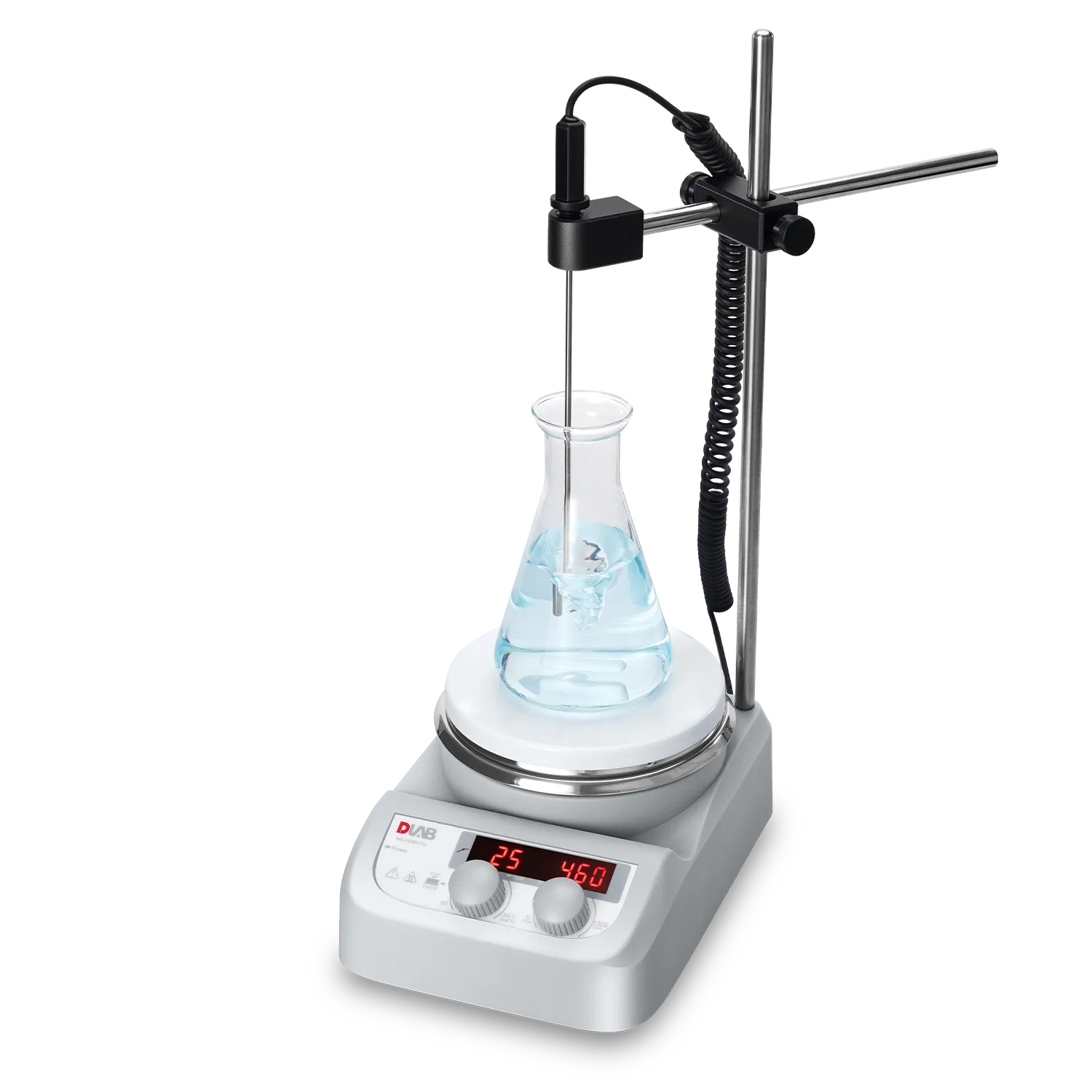

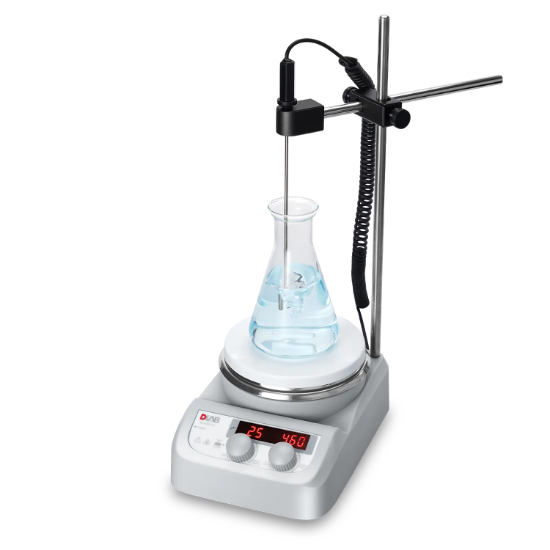

MS-H280-Pro package 2: Hotplate Magnetic Stirrer(280°C) & PT1000A & Support clamp, 8130101212+18900540

Include：MS-H280-Pro LED Digital Magnetic Hotplate Stirrer 8030101212 +PT1000A 18900016+support clamp 18900540
Availability: 2 in stock
SKU: 8130101212+18900540
Manufacturer: Dragon Lab
Pack Size: 1



Package Include：MS-H280-Pro LED Digital Magnetic Hotplate Stirrer 8030101212 +PT1000A  18900016 +support clamp  18900540

--------------------------------------------------

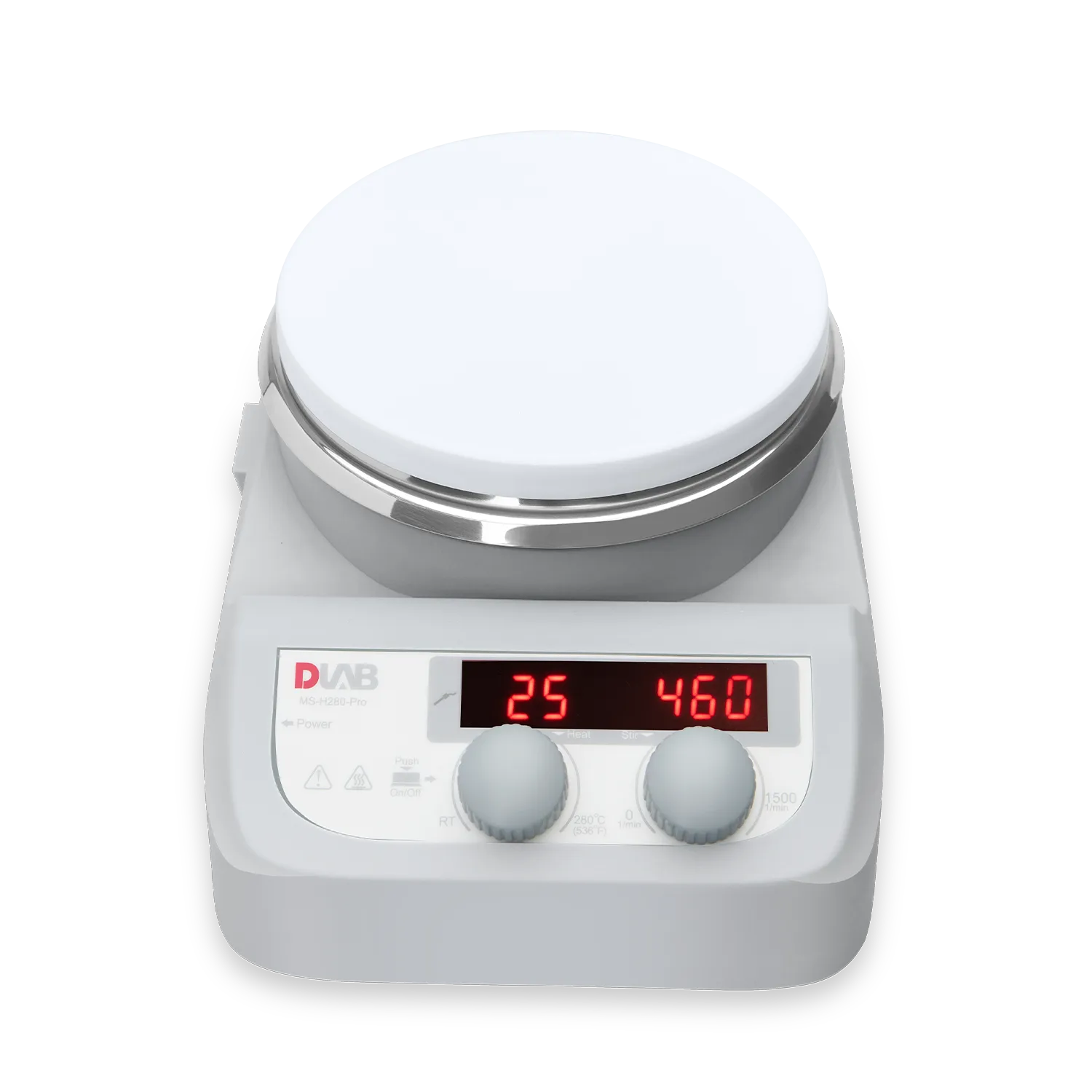

MS-H280-Pro LED Digital Magnetic Hotplate Stirrer
  • Digital temperature control with maximum temperature up to 280°C
  • Digital speed control with maximum speed up to 1500rpm
  • Stainless steel with ceramic coating work plate provides high chemical resistant performance
  •  External temperature control is possible by connecting  temperature sensor(PT1000) with an accuracy at ±0.2°C
  •  LED display shows temperature and stirring speed
  • "HOT" warning flashes if work plate temperature is above 50°C

PT1000-A, length of 230mm

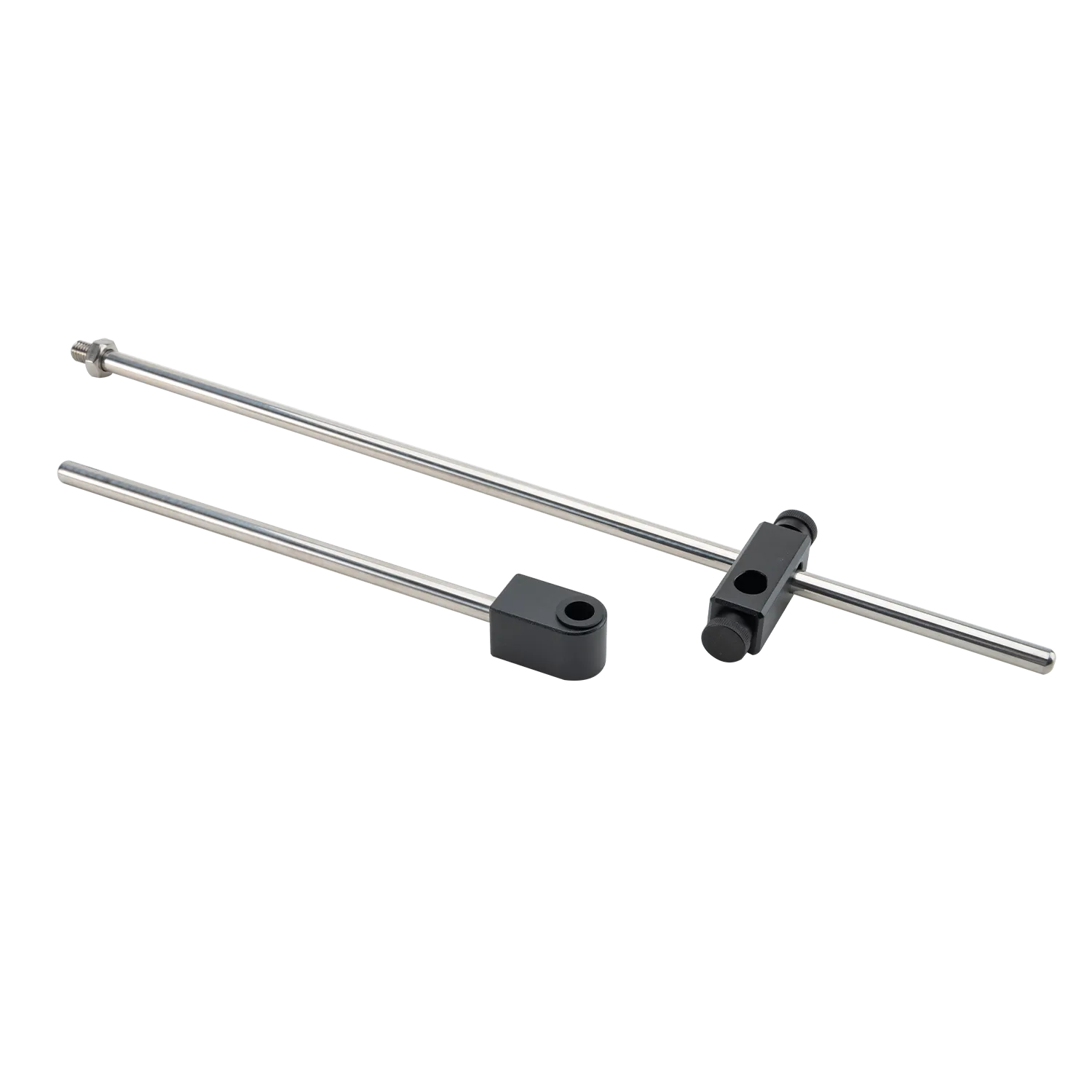

Support clamp of PT1000 (18900017)

Support clamp of PT1000 ,

Vertical bar length：45cm,

stents length：25cm,

Stem diameter:10mm



SpecificationsMS-H280-Pro
Work plate Dimensionφ135mm(5 inch)
Work plate materialstainless steel cover  with ceramic
Motor typeBrushless DC motor
Motor rating input5W
Motor rating output3W
Power515W
Heating output500W
Voltage100-120/200-240V  50/60Hz
Stirring positions1
Max. stirring quantity[H2O]3L
Max. magnetic bar[length]50mm
Speed range200-1500rpm
Speed displayLED
Temperature displayLED
Speed display resolution±1rpm
Heating temperature rangeRoom temp.-280, increment 1°C
Control accuracy of work plate±1°C(<100°C)     ±1%(>100°C)
Over  heat Protection320°C
Temperature  display accuracy±1°C
External  temperature sensorPT1000 (accuracy ±0.5°C)
"Hot" warning50°C
Protection classIP21
Dimension [W x D x H]150×260×80mm
Weight1.8kg
Permissible ambient temperature and humidity
 		5-40℃ 80%RH




Cat. No.P/NDescriptions
18100990Protective cover use with MS-H280-Pro
18900016PT1000-ATemperature sensor for digital hotplate models,length of 230mm, used for MS-H280-Pro, MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S
18900136PT1000-BTemperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro
18900084PT1000-CTemperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro
18900148Support clamp of PT1000, use with  MS-H280-Pro and MS-H380-Pro
18900294Set includs support clamp of PT1000, use with  MS-H280-Pro and PT1000Temperature sensor
18101006Reaction block for 50ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101007Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101008Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18101009Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900259Reaction block for 1000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900260Reaction block for 2000ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro
18900006MSBAR10Stirrer bar（10mm x 6mm），1pc/pk
18900007MSBAR15Stirrer bar（15mm x 8mm），1pc/pk
18900008MSBAR20Stirrer bar（20mm x 8mm），1pc/pk
18900009MSBAR25Stirrer bar（25mm x 8mm），1pc/pk
12500005MSBAR30Stirrer bar（30mm x 6mm），1pc/pk
18900011MSBAR40Stirrer bar（40mm x 8mm），1pc/pk
12500004MSBAR50Stirrer bar（50mm x 8mm），1pc/pk
18900015MARRMStirrer bar remover, length of 200mm, 1pc/pk

·



Attribute nameAttribute value
Pack Size1
TypeMagnetic Hotplate Stirrer
ModelMS-H280-Pro
Speed range200-1500rpm
Temperature Max280 °C
