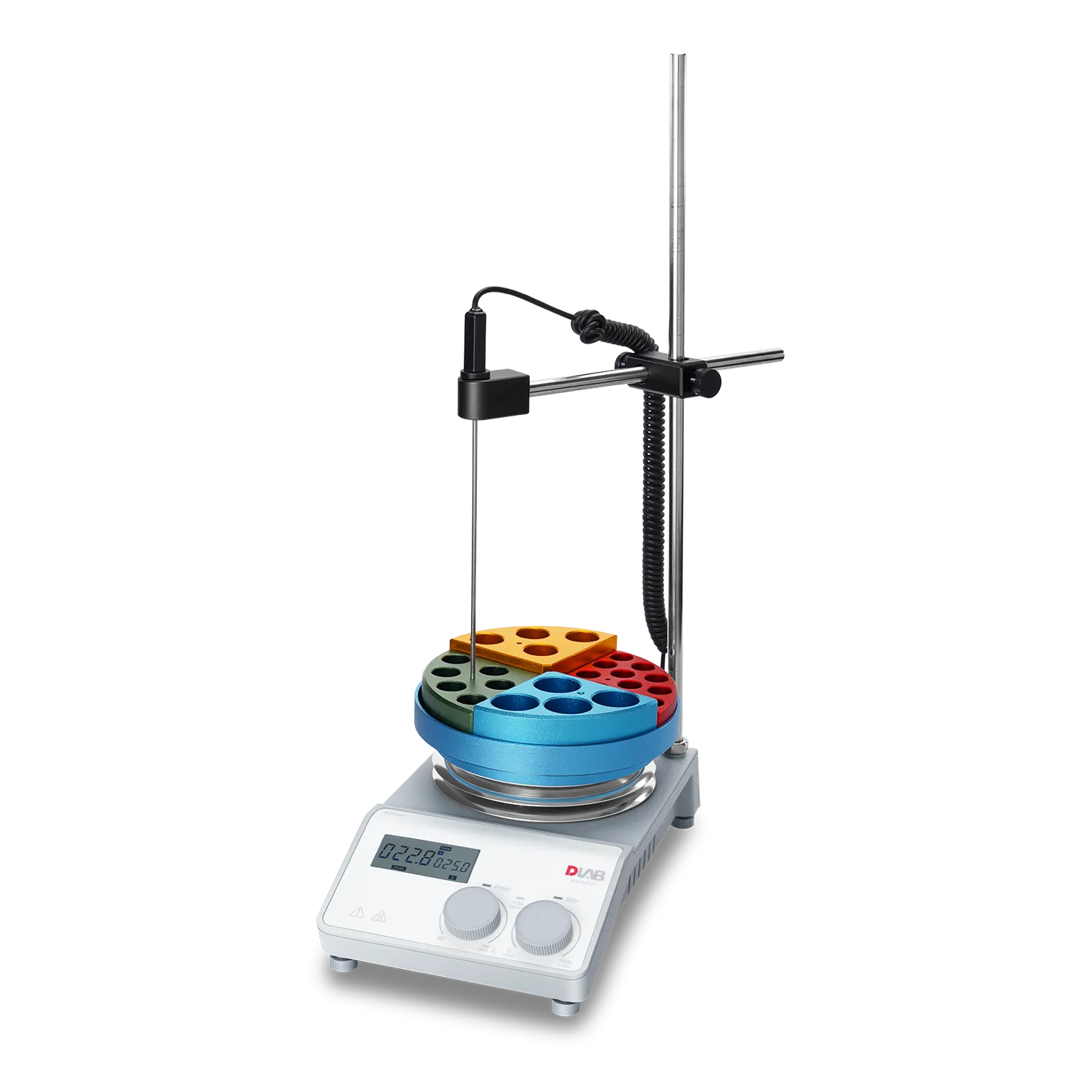

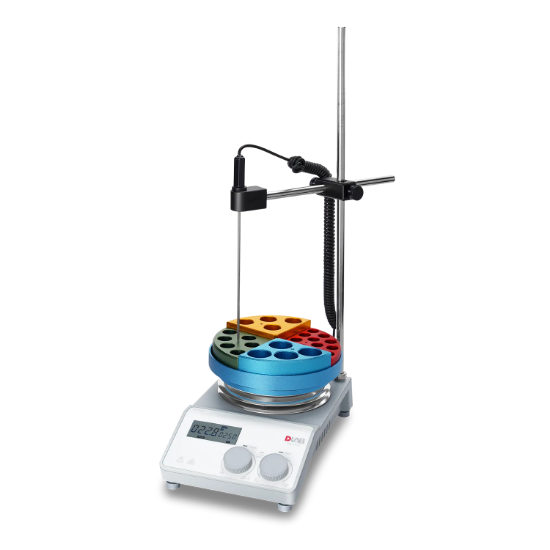

MS-H-Pro+ package 2: Hotplate Magnetic Stirrer (340°C) & PT1000A & Support clamp, 8130221110+18900017

Include：MS-H-Pro+ package 1（8130221110）(LCD Digital Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 340°C（8030221110）+ PT1000A (189000160))+ Support clamp （18900017)
SKU: 8130221110+18900017
Manufacturer: Dragon Lab

MS-H-Pro+ package 2 Include：MS-H-Pro+ package 1（8130221110）(LCD Digital Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 340°C（8030221110）+ PT1000A (189000160))+ Support clamp （18900017)

--------------------------------------------------------------

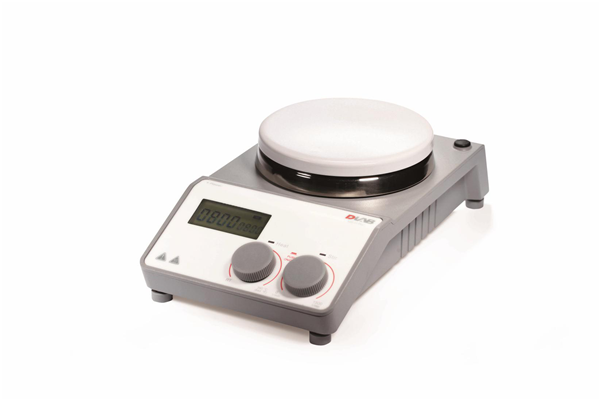

MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer
  • Brushless DC motor is maintenance free and explosion-proof
  • Digital temperature control up to 340°C
  • Digital speed control up to 1500rpm
  • Maximum stirring quantity of H2O is 20L
  • Safety circuits provide overheating protection
  • "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
  • External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
  • Work plate with ceramic coating provides good chemical-resistantperformance
  • Remote function provides PC control and data transmission
  • Wide variety of accessories available to choose

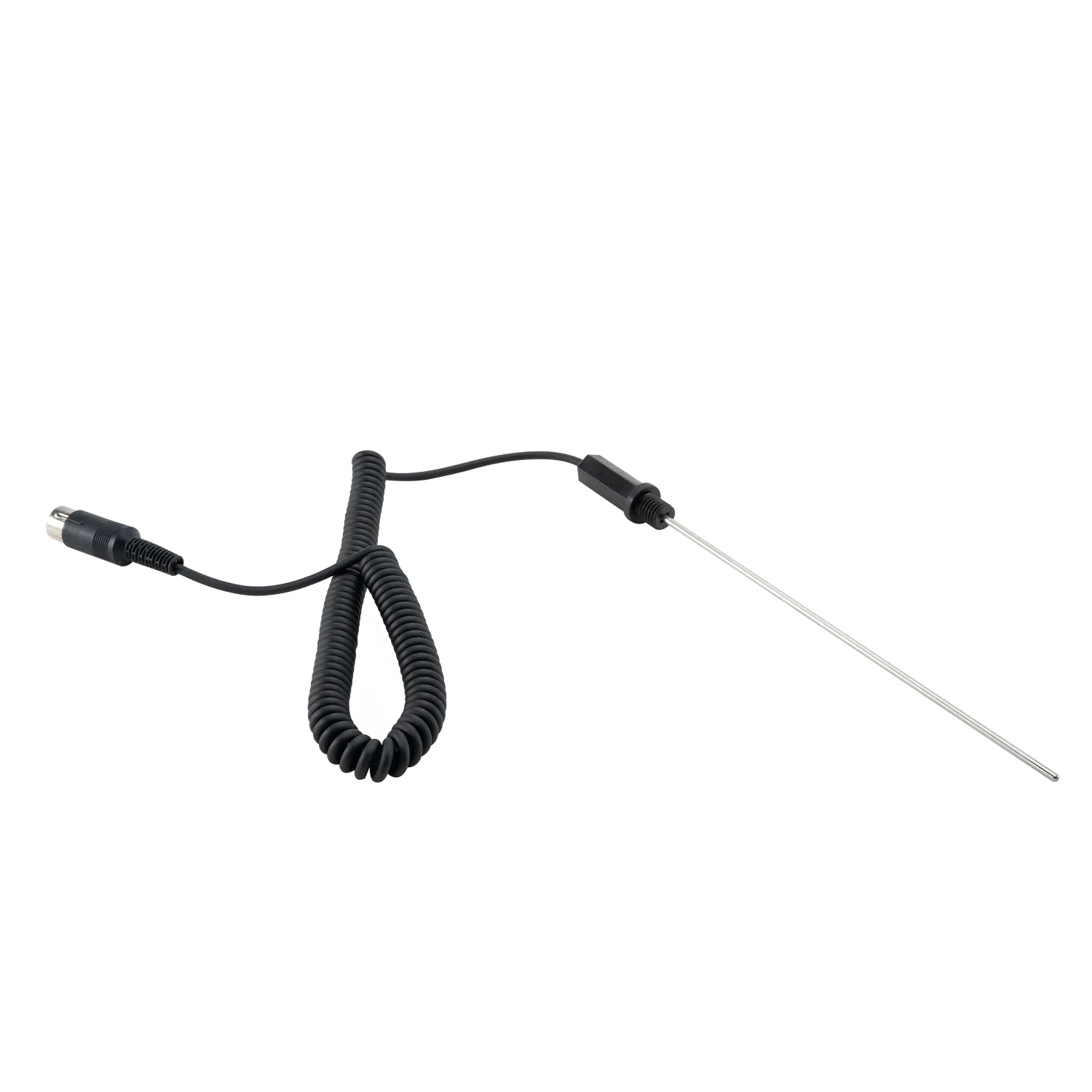

PT1000-A, length of 230mm

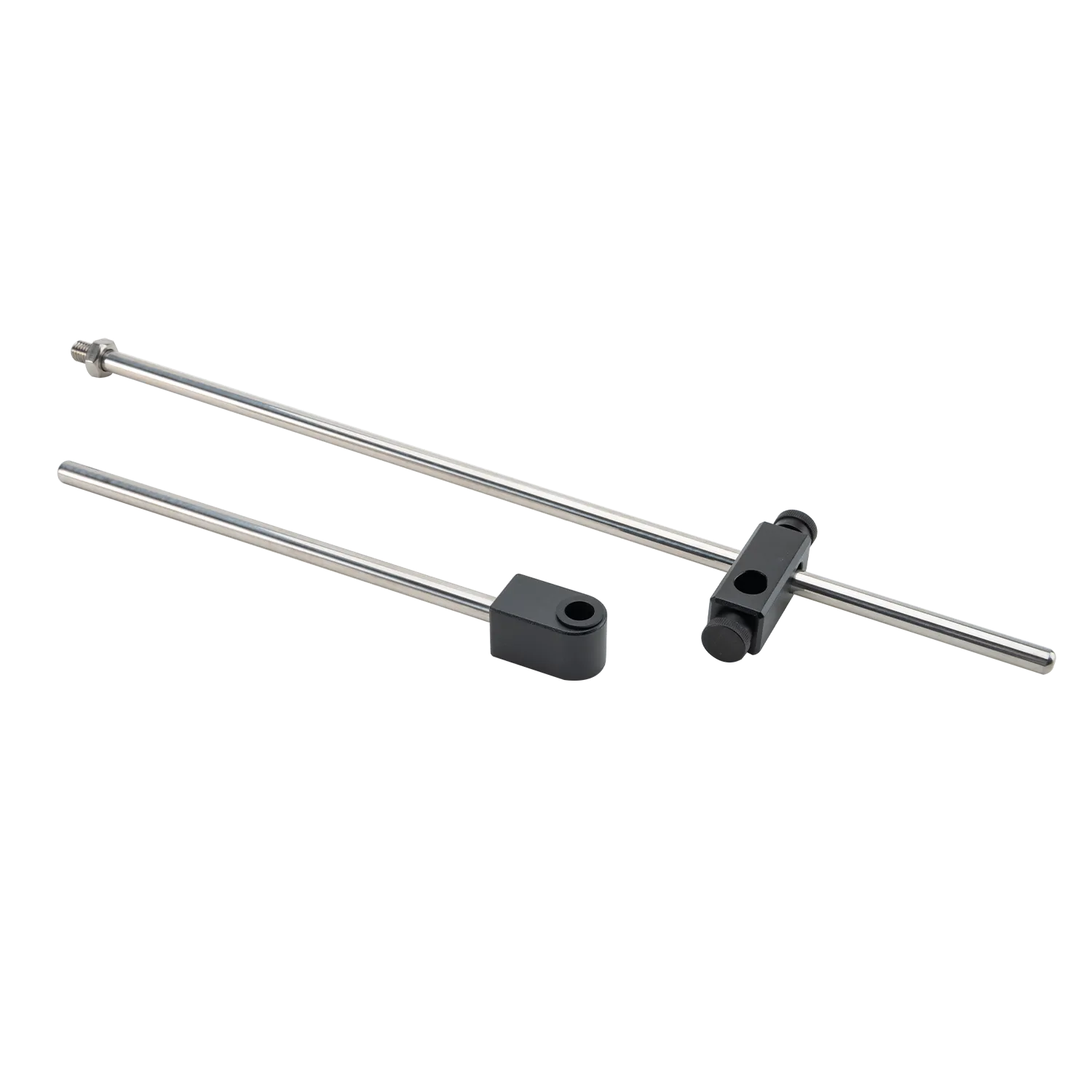

Support clamp of PT1000 (18900017)

Support clamp of PT1000 ,

Vertical bar length：45cm,

stents length：25cm,

Stem diameter:10mm



PRODUCT PARAMETERS
Work plate DimensionØ135mm（5 inch)
Work plate materialstainless steel cover with ceramic coating
Max. stirring quantity [H2O]20L
Speed range100-1500rpm resolution ±1rpm
Speed displayLCD
Temperature displayLCD
Heating temperature rangeRoom Temp.-340℃, increment 1℃
Temperature control accuracy±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy±0.1℃
External temperature sensorPT1000 ( accuracy±0.2℃ )
"Hot" warning50℃
Overheating temperature protection420℃
Motor typeBrushless DC motor
Stirring positions1
Max. magnetic bar length80mm
Data connectorRS232
Protection classIP21
Motor rating input18W
Motor rating output10W
Power550W
Heating output500W
Voltage,Frequency100-120V/200-240V，50/60Hz
Dimension [WxDxH]160x280x100mm
Weight2.8kg
Permissible ambient temperature5-40℃
Permissible ambient humidity80% RH
Attribute nameAttribute value
TypeMagnetic Hotplate Stirrer
ModelMS-H-PRO+
Speed range100-1500rpm
Temperature Max340 °C
