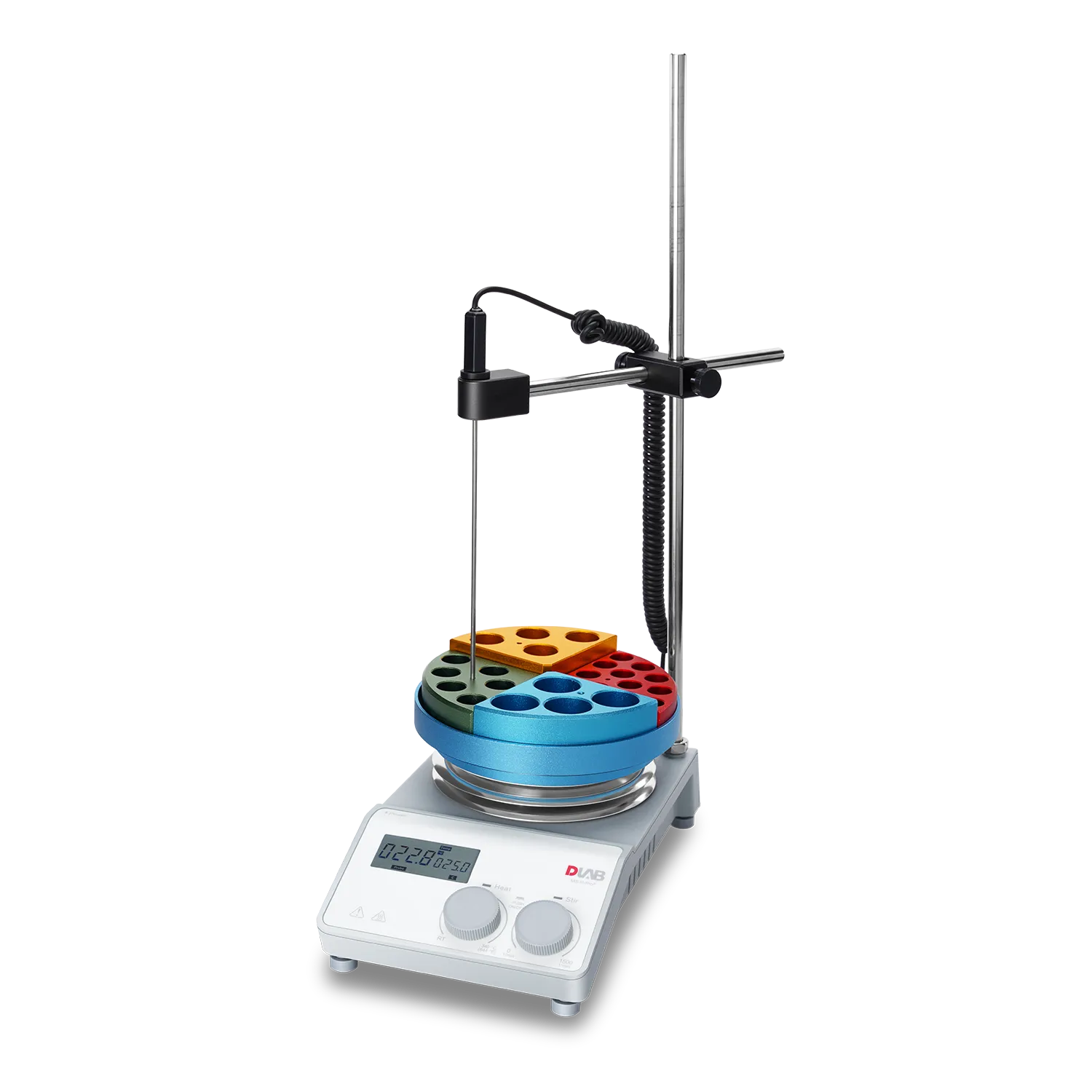

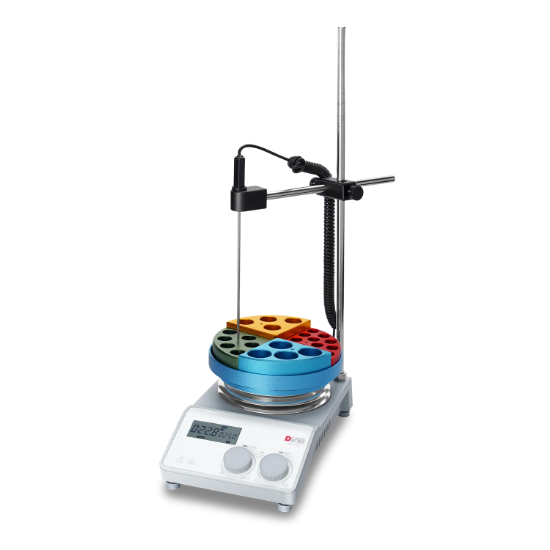

MS-H-Pro+ package 1: Hotplate Magnetic Stirrer (340°C)&PT1000A, 8130221110

Include:LCD Digital Hotplate Magnetic Stirrer,stainless steel with ceramic coated hotplate,heating temperature up to 340°C(8030221110)+ PT1000A (189000160)
SKU: 8130221110
Manufacturer: Dragon Lab



Include:LCD Digital Hotplate Magnetic Stirrer,stainless steel with ceramic coated hotplate,heating temperature up to 340°C(8030221110)+ PT1000A (189000160)

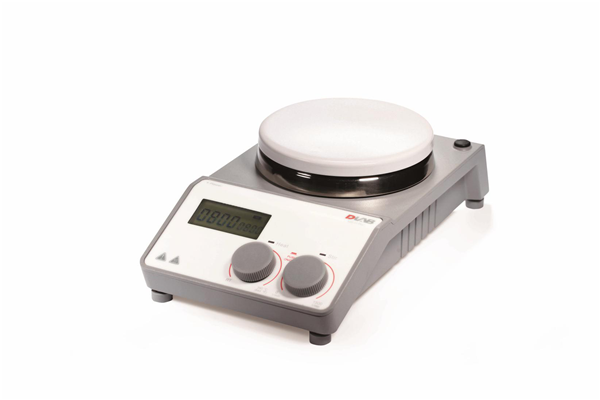

MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer
  • Brushless DC motor is maintenance free and explosion-proof
  • Digital temperature control up to 340°C
  • Digital speed control up to 1500rpm
  • Maximum stirring quantity of H2O is 20L
  • Safety circuits provide overheating protection
  • "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off

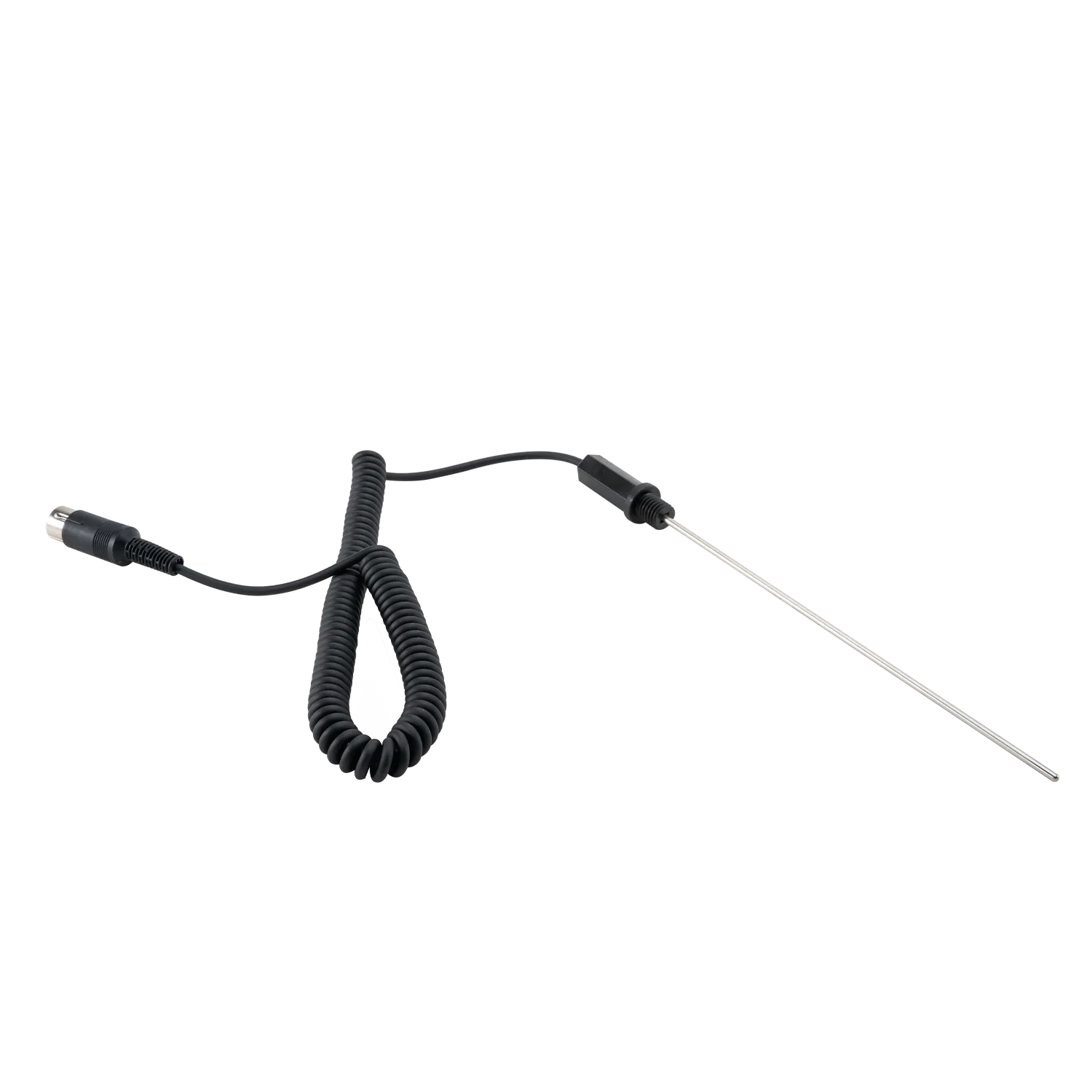

  • External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
  • Work plate with ceramic coating provides good chemical-resistantperformance
  • Remote function provides PC control and data transmission
  • Wide variety of accessories available to choose
PRODUCT PARAMETERS
Work plate DimensionØ135mm(5 inch)
Work plate materialstainless steel cover with ceramic coating
Max. stirring quantity [H2O]20L
Speed range100-1500rpm resolution ±1rpm
Speed displayLCD
Temperature displayLCD
Heating temperature rangeRoom Temp.-340℃, increment 1℃
Temperature control accuracy±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy±0.1℃
External temperature sensorPT1000 ( accuracy±0.2℃ )
"Hot" warning50℃
Overheating temperature protection420℃
Motor typeBrushless DC motor
Stirring positions1
Max. magnetic bar length80mm
Data connectorRS232
Protection classIP21
Motor rating input18W
Motor rating output10W
Power550W
Heating output500W
Voltage,Frequency100-120V/200-240V,50/60Hz
Dimension [WxDxH]160x280x100mm
Weight2.8kg
Permissible ambient temperature5-40℃
Permissible ambient humidity80% RH
Attribute nameAttribute value
TypeMagnetic Hotplate Stirrer
ModelMS-H-PRO+
Speed range100-1500rpm
Temperature Max340 °C
