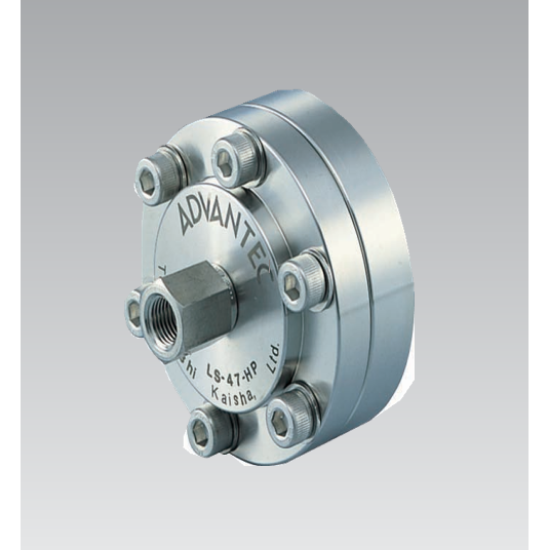

Picture of LS-47-HP HIGH PRESSURE HOLDER 304SS , LS-47-HP

LS-47-HP HIGH PRESSURE HOLDER 304SS , LS-47-HP

LS-47-HP HIGH PRESSURE HOLDER 304SS

SKU: LS-47-HP

Manufacturer: Advantec

Pack Size: 1

High Pressure Stainless Steel Holder

Operate at high pressure, up to 9.8 MPa (1420 psi)
Standard Viton O-rings compatible with many aggressive liquids and gases
Back pressure support screen available to prevent membrane rupture and deflect flow at very high pressures

Applications

Filter liquids or gases under high pressure

	LS-47-HP
Materials:
Body and support screen	Body:SUS304 Support screen:SUS316
O-rings	FPM
Connections:
Inlet and Outlet	1/4" NPTF
Pressure:
Inlet	9.8 MPa (1422 psi)
Differential	1.9 MPa (276 psi)
Dead volume:
Upstream	3 mL
Downstream	6.5 mL
Membrane Compatibility:
Membrane filter size	47 mm
Prefilter size	38 mm
Filtration area	12.5 cm2
Dimensions:
Diameter	88 mm (3.5")
Height (including adapters)	94 mm (3.7")
Weight:	2.7 kg (6.0 lb)
