PTFE Coated Vacuum Pump Features:
◆ Good chemical resistance
The diaphragm chamber of Lafil 300C coated with PTFE can offer good resistance to a wide range of corrosive gases except strong acid and alkali.
◆ Compact and safe operation

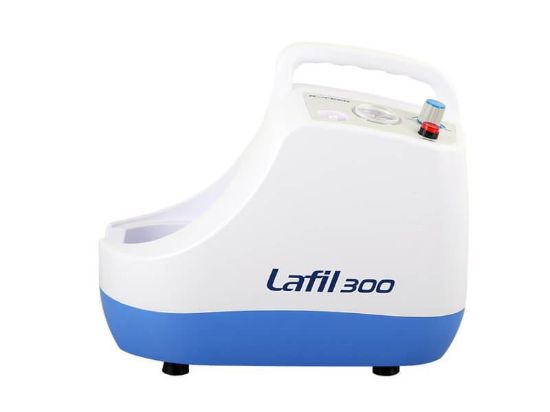

Lafil 300C series vacuum pump is a unique filtration unit by combining vacuum source with optional filtration ware. Its compact design can save much bench space than the traditional ones. With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.
◆ No air pollution, maintenance free
Lafil 300C vacuum pump is driven by diaphragm, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Thermal protection device
The motor of Lafil 300C series pumps has a built-in thermal protection device to shut off the pump automatically when
overheated and then resume working when the temperature cools down.
PTFE Coated Vacuum Pump International Certificate:
◆ CE certification
| ▸ Lafil 300C: 220V/50Hz |
| ▸ Max. power: 60W |
| ▸ Max.current: 0.3A |
| ▸ Max.vacuum: 99 mbar abs. |
| ▸ Max.flow rate: 20 L/min |
| ▸ Motor rotation speed: 1450 RPM |
| ▸ Horsepower: 1/8 HP |
| ▸ Noise level: 50 dB |
| ▸ Hose barb: ID8 (5/16 inch) |
| ▸ Net weight: 5.9 Kg |
| ▸ Dimension (L*W*H): 35 x 24.3 x 29 cm |
| ▸ Vacuum regulator: Yes |
PTFE Coated Vacuum Pump Applications:
◆ Solvent purification
◆ Solid-Phase Extraction (SPE)
◆ Vacuum filtration
PTFE Coated Vacuum Pump Ordering Information
| Product Part Number | Product |
197330-11 197330-22 | Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump AC110V, 60Hz Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump AC220V, 50Hz |
