HP550-S package 1: Square Hotplate (550°C) & PT1000A, 5131122211

Include:LED Digital 7’’ Square Hotplate, glass ceramic hotplate, heating temperature up to 550°C(5031122211)+ PT1000A (18900016)
SKU: 5131122211
Manufacturer: Dragon Lab
Pack Size: 1



Include:LED Digital 7’’ Square Hotplate,glass ceramic hotplate,heating temperature up to 550°C(5031122211)+ PT1000A  (18900016)

---------------------------

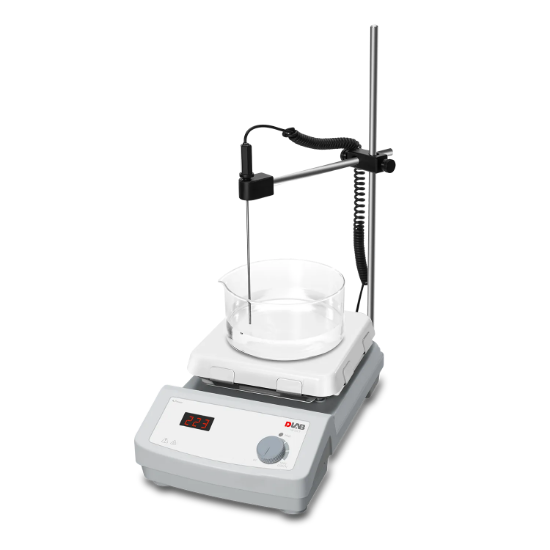

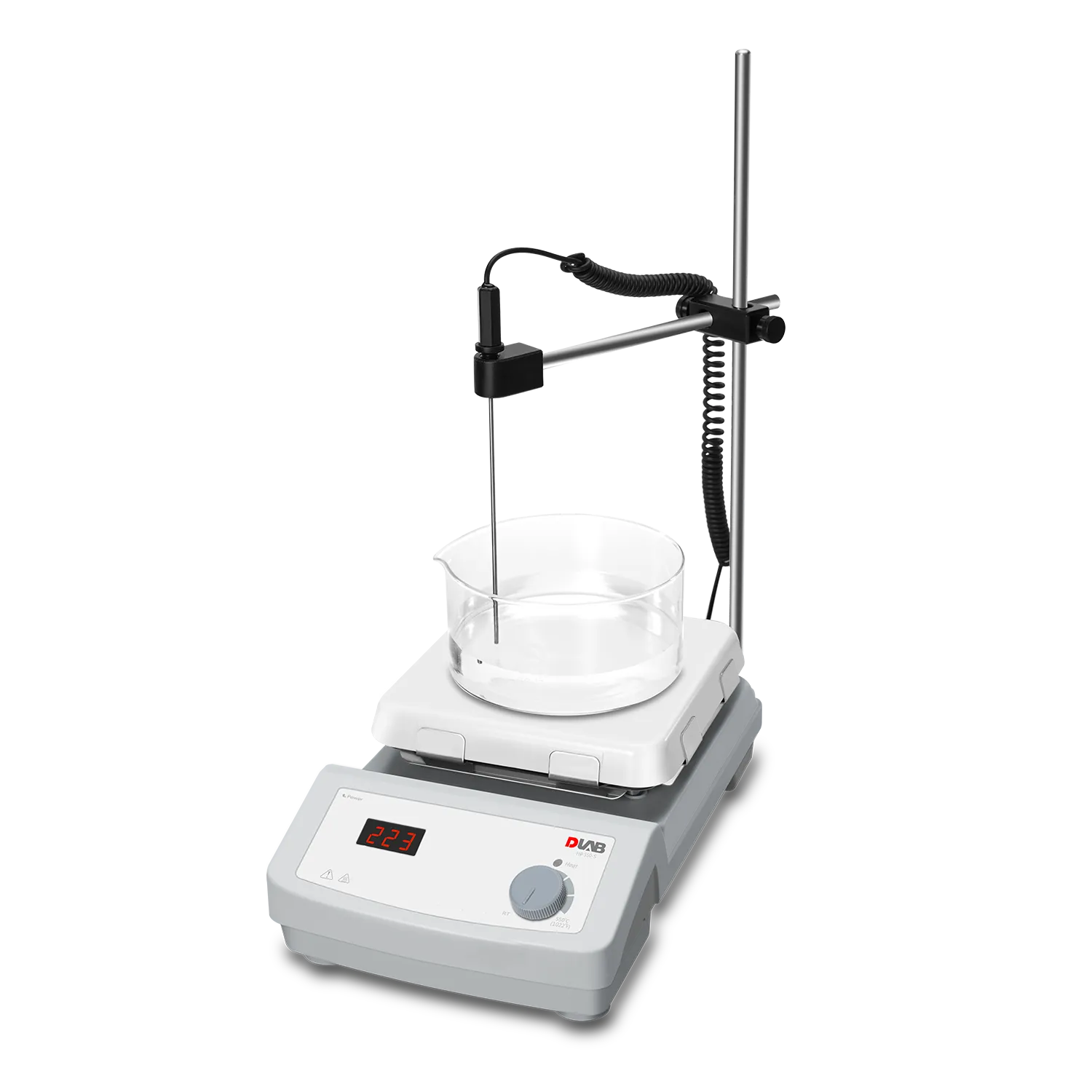

HP550-S LED Hotplate
  • LED screen display actual and accurate temperature
  • Maximum temperature up to 550℃
  • Separate safety circuits with safety temperature of 580℃
  • External temperature control is possible by connecting temperature sensor (PT1000) with an accuracy of ±0.2℃
  • Work plate provides excellent chemical- resistant performance and most efficient heat transfer
  • “HOT”warning flashes when the workplate temperature is above 50℃

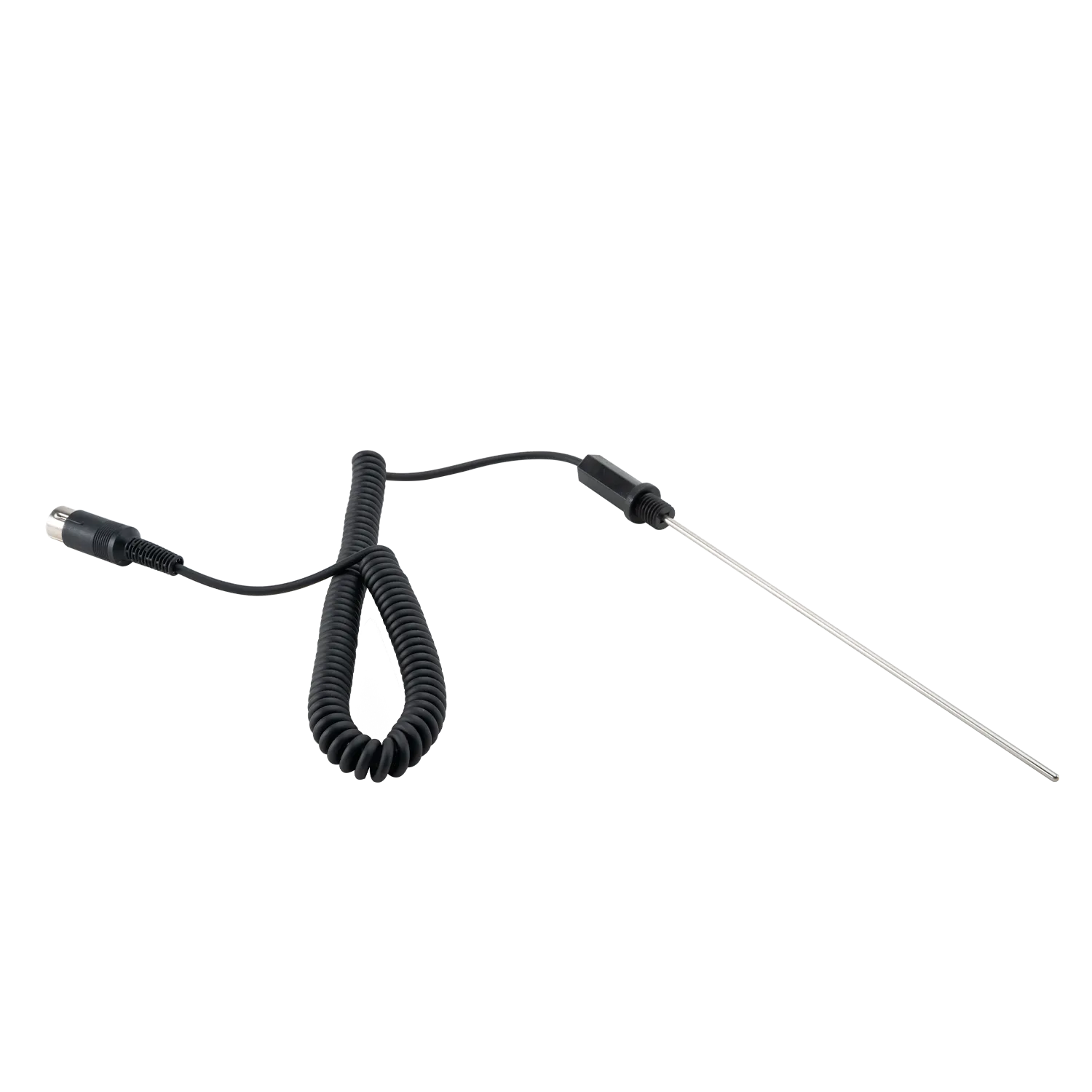

PT1000-A, length of 230mm



SpecificationsHP550-S
Work plate Dimension184x184mm(7 inch)
Work plate materialGlass ceramic
Power1010W
Heating Power1000W
Voltage100-120/200-240V,50/60Hz
Heating position1
Heating temperature rangeRoom temp.-550°C,increment 5°C
Control accuracy of work plate±10°C
Safety temperature580°C
Temperature displayLED
Temperature display accuracy±1°C
External temperature sensorPT1000(±0.5°C)
Heating warning50°C
Protection classIP21
Dimension [W x D x H]215x360x112mm
Weight4.5kg
Permissible ambient temperature and humidity5-40°C,   80%RH





Attribute nameAttribute value
Pack Size1
TypeHotplate
ModelHP550-S
Temperature Max550℃
