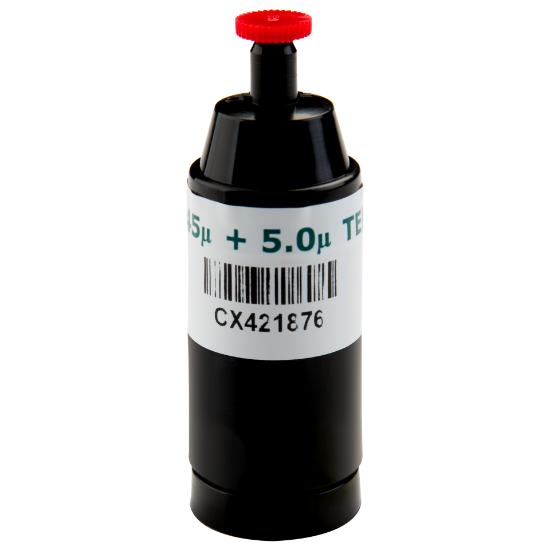

Cassette, 25mm 3PC, .45 + 5.0µm MCE, TEM, 50/Bx Z045BA

25mm Asbestos TEM Cassette, 0.45µ + 5.0µ MCE, 50/bx
SKU: Z045BA
Manufacturer: ZEFON
Pack Size: 50

Zefon PCM & TEM 25mm air sampling cassettes are designed and manufactured to meet all applicable NIOSH, OSHA, and AHERA standards for asbestos air monitoring. The cassette housings are injection molded in-house and are individually assembled and preloaded under stringent quality control standards. Once assembled, each cassette is individually tested prior to packaging for shipment. Random lot sample testing is performed daily by an independent laboratory to ensure low background fiber counts. Laboratory results are available upon request.

Features:

  • 0.8μm MCE Filter Material with or without grids (PCM models)
  • 1.2μm MCE Filter Material with or without grids (PCM models)
  • 0.45μm + 5.0μm MCE Filter Material (TEM models)
  • 2" Static Conductive Extension Cowl
  • Meets NIOSH 7400/7402 and OSHA ID160 specifications
  • Meets AHERA Requirements (TEM Model #Z045BA)
  • Each cassette is marked with a unique serial number
  • Preloaded- ready to use

Each Zefon 25mm cassette undergoes stringent quality control that includes a 100% inspection for the correct filter/pad combination and a 100% inspection to ensure no filter parchment paper is present. Then each lot of cassettes has numerous sample blanks verified by an independent laboratory to have acceptable background fiber counts as per NIOSH requirements.



Specifications
BANDWhite Band
FILTER DIAMETER25mm
FILTER MATERIALMCE
FILTER PORE SIZE0.45 micron
GRAVIMETRICNot Weighed
HOUSING MATERIALConductive
HOUSING STYLE3-Piece ASB
NOTEFor AHERA & NIOSH 7402 Asbestos by TEM
PAD MATERIALCellulose
Attribute nameAttribute value
Pack Size50
