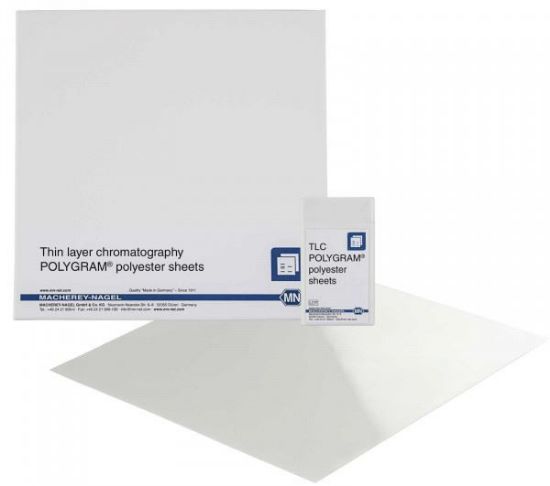

POLYGRAM CEL 300 UV254, 0,1 mm, 5x20 cm, 801022

POLYGRAM sheets CEL 300 UV254 size: 5 x 20 cm pack of 50
SKU: 801022
Manufacturer: Machery Nagel



POLYGRAM sheets CEL 300 UV254 size: 5 x 20 cm pack of 50







TLC polyester sheets with native fibrous cellulose. Fiber length (95 %) 2–20 μm, average degree of polymerization 400–500, specific surface acc. to Blaine 15000 cm²/g; ≤ 20 ppm Fe, 6 ppm Cu, 7 ppm P; dichloromethane extract ≤ 0.25 %; residue on ignition at 850 °C ≤ 1500 ppm.

Hazardous materialNo
MethodThin layer chromatography (TLC)
BrandPOLYGRAM
PhaseCEL 300 UV254
Base materialPolyester sheets coated with cellulose
Surface chemistryNative fibrous cellulose
ModeNormal phase (NP)
Plate size5x20 cm
Layer thickness0.1 mm
Layer hardnessStandard, soft
UV indicatorYes
Support material / backingPolyester
Particle size2–20 µm
Particle typeFully porous particles (FPP)
Particle shapeIrregular
Pore sizeNot available or not applicable
Pore volumeNot available or not applicable
BinderYes
pH stability2.0–8.0
Recommended application(s)Amino acids, Carbohydrates, Carboxylic acids, Polar substances
Temperature stability< 185 °C
Storage temperatureRT
Scope of delivery50x TLC polyester sheets / foils (5x20 cm)



Attribute nameAttribute value
BrandPOLYGRAM
PhaseCEL 300 UV254
Plate size5x20cm
