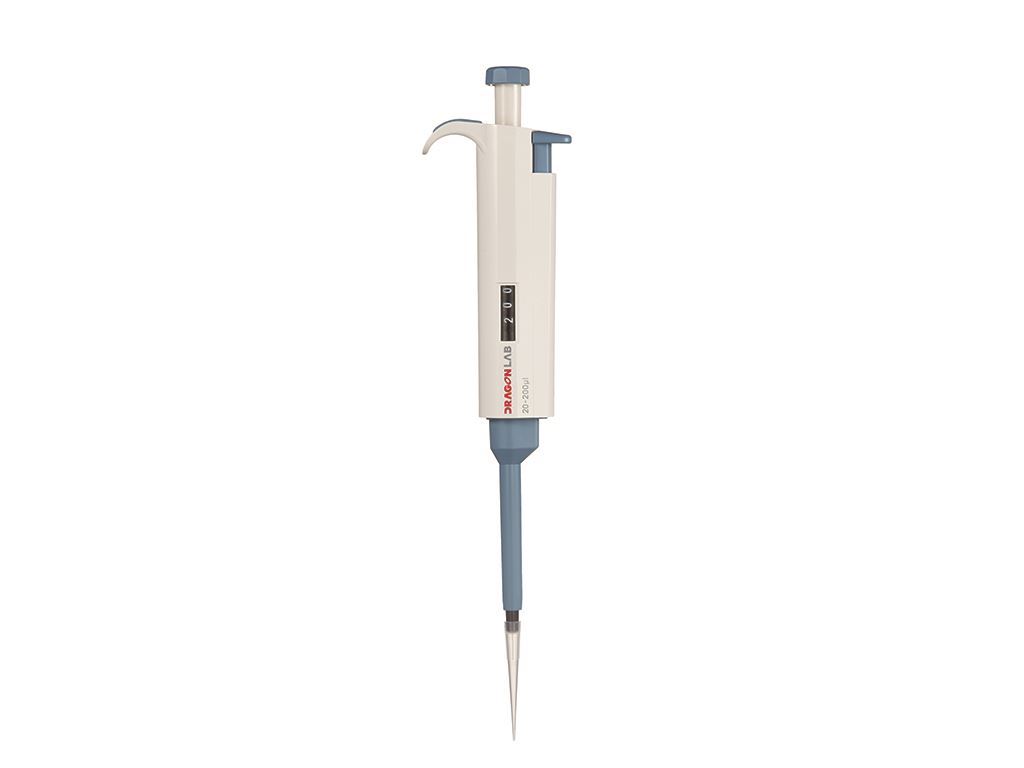

TopPette -Mechanical Pipette, Single-channel Adjustable Volume, Volume 10-100μl , 7010101008

TopPette -Mechanical Pipette, Single-channel Adjustable Volume, Volume 10-100μl , 7010101008
SKU: 7010101008
Manufacturer: Dragon Lab





Key Features

  • Lightweight, ergonomic, low force design
  • Digital display clearly reads volume setting
  •  The pipettes cover volume range of 0.1μl to 10ml
  • Easy to calibrate and maintain with tool supplied
  •  Design helps avoid repetitive strain injuries
  • Calibrated in accordance with ISO8655. Each pipette supplied with individual test certificate
  • The low part is available for autoclaving



Single-channel Adjustable Volume Pipettes
Volume RangeIncrementTest VolumeAccuracy error Precision error
   %μl%μl
0.1-2.5μl0.05μl2.52.50%0.06252.00%0.05
1.253.00%0.03753.00%0.0375
0.2512.00%0.036.00%0.015
0.5-10μl0.1μl101.00%0.10.80%0.08
51.50%0.0751.50%0.075
12.50%0.0251.50%0.015
2-20μl0.5μl200.90%0.180.40%0.08
101.20%0.121.00%0.1
23.00%0.062.00%0.04
5-50μl0.5μl500.60%0.30.30%0.15
250.90%0.2250.60%0.15
52.00%0.12.00%0.1
10-100μl1μl1000.80%0.80.15%0.15
501.00%0.50.40%0.2
103.00%0.31.50%0.15
20-200μl1μl2000.60%1.20.15%0.3
1000.80%0.80.30%0.3
203.00%0.61.00%0.2
50-200μl1μl2000.60%1.20.15%0.3
1000.80%0.80.30%0.3
501.00%0.50.40%0.2
100-1000μl5μl10000.60%60.20%2
5000.70%3.50.25%1.25
1002.00%20.70%0.7
200-1000μl5μl10000.60%60.20%2
5000.70%3.50.25%1.25
2000.90%1.80.30%0.6
1000-5000μl50μl50000.50%250.15%7.5
25000.60%150.30%7.5
10000.70%70.30%3
2-10ml0.1ml10ml0.60%600.20%20
5ml1.20%600.30%15
2ml3.00%600.60%12





Fixed Volume Pipettes
Volume RangeIncrementTest VolumeAccuracy error Precision error
   %μl%μl
5μl-5μl1.3%0.0651.2%0.06
10μl-10μl0.8%0.080.8%0.08
20μl-20μl0.6%0.120.5%0.1
25μl-25μl0.5%0.1250.3%0.075
50μl-50μl0.5%0.250.3%0.15
100μl-100μl0.5%0.50.3%0.3
200μl-200μl0.4%0.80.2%0.4
250μl--250μl0.4%1.00.2%0.5
500μl-500μl0.3%1.50.2%1.0
1000μl-1000μl0.3%3.00.2%2.0
2000μl-2000μl0.3%6.00.15%3.0
5000μl-5000μl0.3%150.15%7.5



Cat. No.Volume
70101010010.1-2.5μl
70101010040.5-10μl
70101010065-50μl
70101010052-20μl
701010100810-100μl
701010100920-200μl
701010101150-200μl
7010101014100-1000μl
7010101016200-1000μl
70101010171000-5000μl
70101010332-10ml

Attribute nameAttribute value
Volume10-100μl
ModelTopPette
TypeAdjustable Volume
ChannelSingle-channel
