197402-22 Lafil 400 - SF 10, Vacuum Filtration System,AC220V, 50Hz

Lafil 400-SF10, Vacuum Filtration System, AC220V, 50Hz with EU plug
SKU: 197402-22
Manufacturer: Rocker

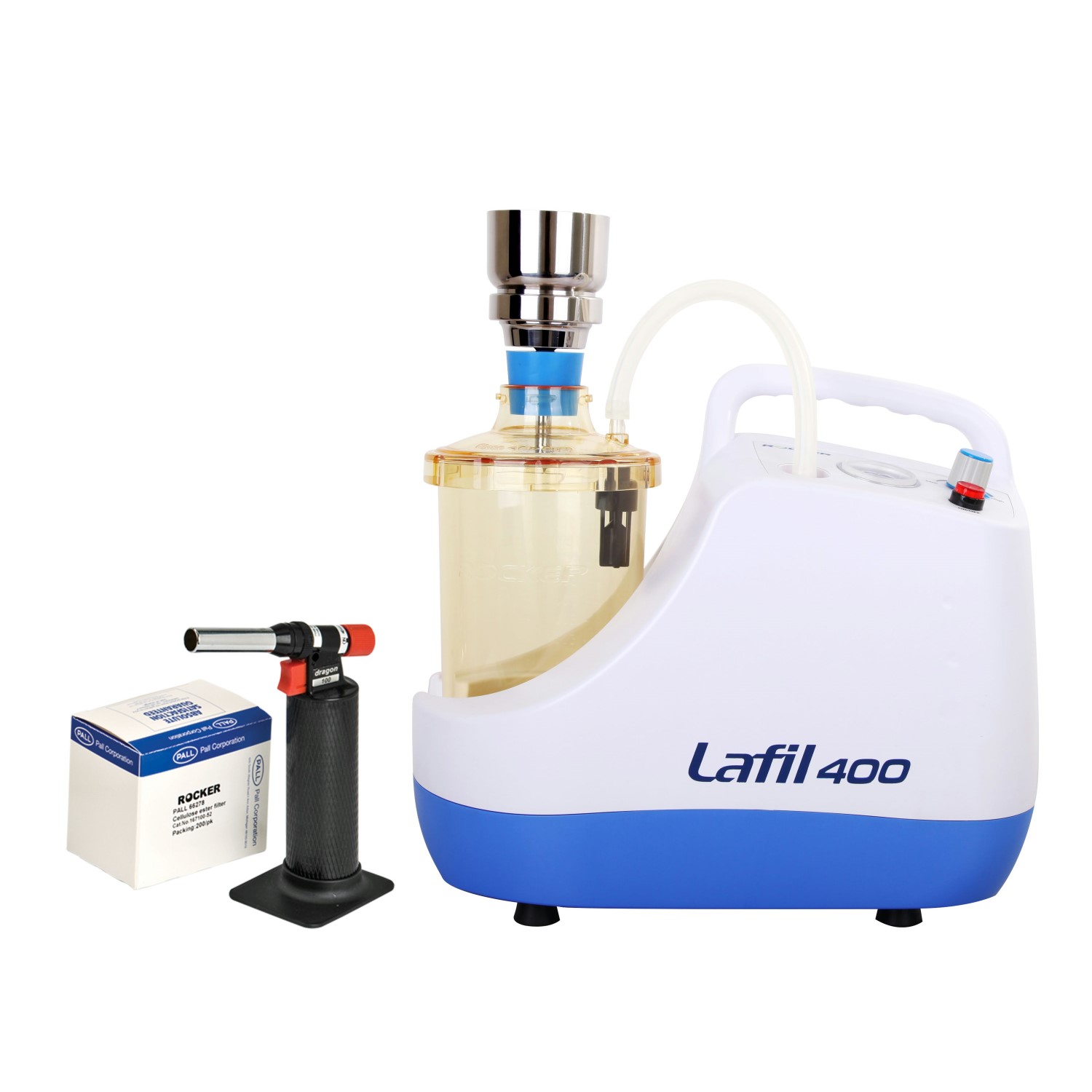

Lafil 400 – SF 10 Lafil filtration system
GENERAL DATA
Max. vacuum25 mbar abs.
Max. flow rate23 L/min @ 60 Hz ; 20 L/min @ 50Hz
Noise Level52 dB
ELECTRICAL DATA
Voltage110V220V
Frequency50 / 60 Hz
CAPACITY
Funnel capacity100 mL
Bottle/Flask capacity1200 mL
Filter diameter47 mm
OTHER DATA
Dimension(LxWxH)34 x 24 x 30 cm
Equipped withVacuum regulator
Overflow protection

Filtration System Ordering Information

Product Part NumberProduct
197402-11Lafil 400 – SF 10, Vacuum Filtration System, AC110V, 60Hz
197402-22Lafil 400 – SF 10, Vacuum Filtration System, AC220V, 50Hz
197400-11Lafil 400, Vacuum Pump, AC110V, 60Hz
197400-22Lafil 400, Vacuum Pump, AC220V, 50Hz
197010-32SF 10, 47mm Stainless Steel Filtration Set
Filtration System Features

Compact & safe
Lafil 400 filtration system integrates vacuum source, and all other filtration accessories into one single system. Save 50% bench space and stay safe with its tripping-proof and spill-proof fence-like platform.
Clamp-free with spin-lock
SF 10 bottles are equipped with filter holders that can be mounted with revolutionary spin-lock and be totally clamp-free.
Overflow protection
The PC waste bottle comes with a built-in overflow protection to keep the filtrate from overflowing when it is full.
Autoclavable and shatterproof
The waste bottle and filter holder are made of engineering plastics and SS316 stainless steel which are shatterproof, heat-resistant and autoclavable.

Features :



Attribute nameAttribute value
ModelSF 10
Funnel Capacity100ml
Flask/Bottle Capacity1200ml
Filter diameter47mm
