197401-22　Lafil 400 - LF 30, Vacuum Filtration System,AC220V, 50Hz

Lafil 400-LF30, Vacuum Filtration System, AC220V, 50Hz with EU plug
SKU: 197401-22
Manufacturer: Rocker

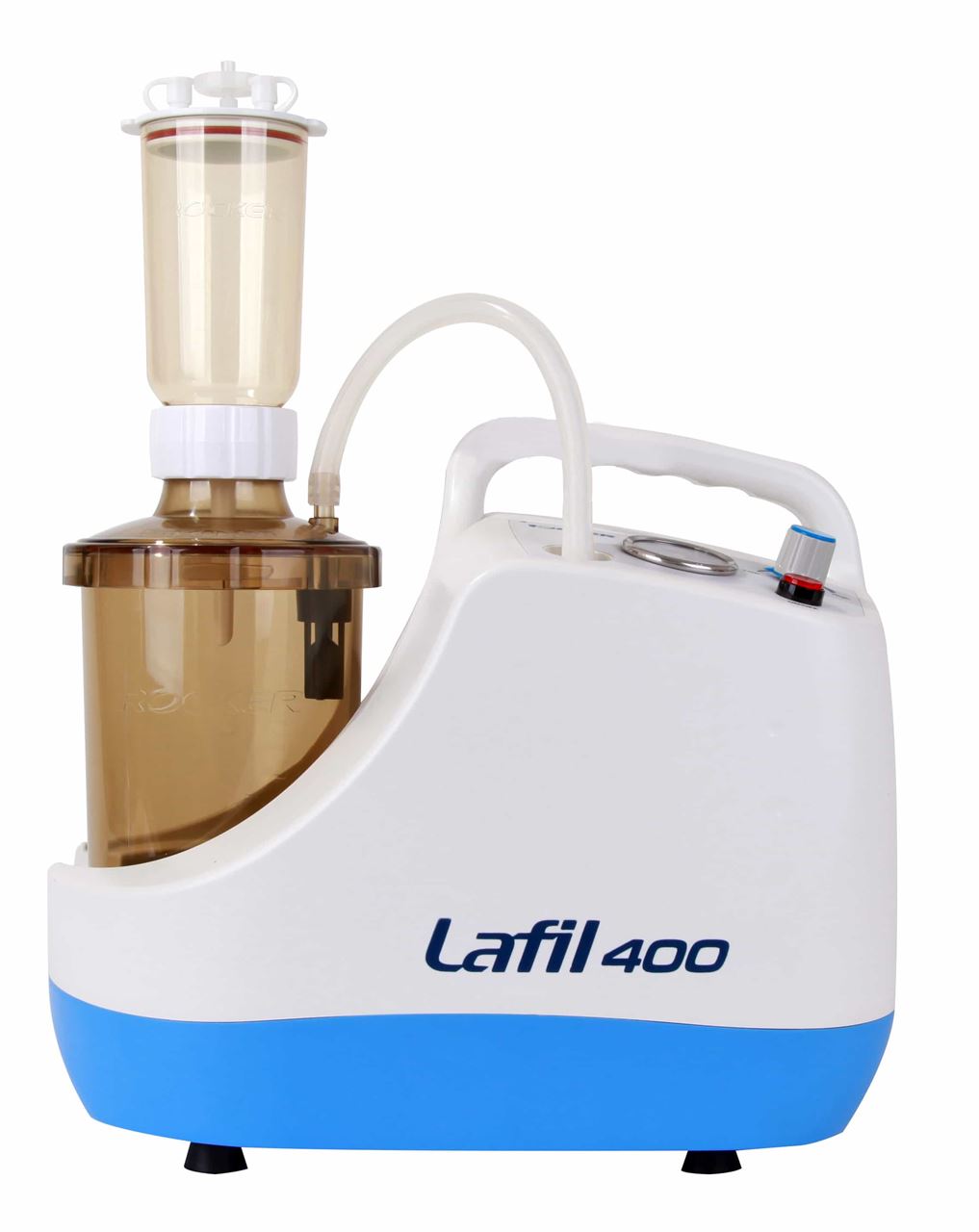

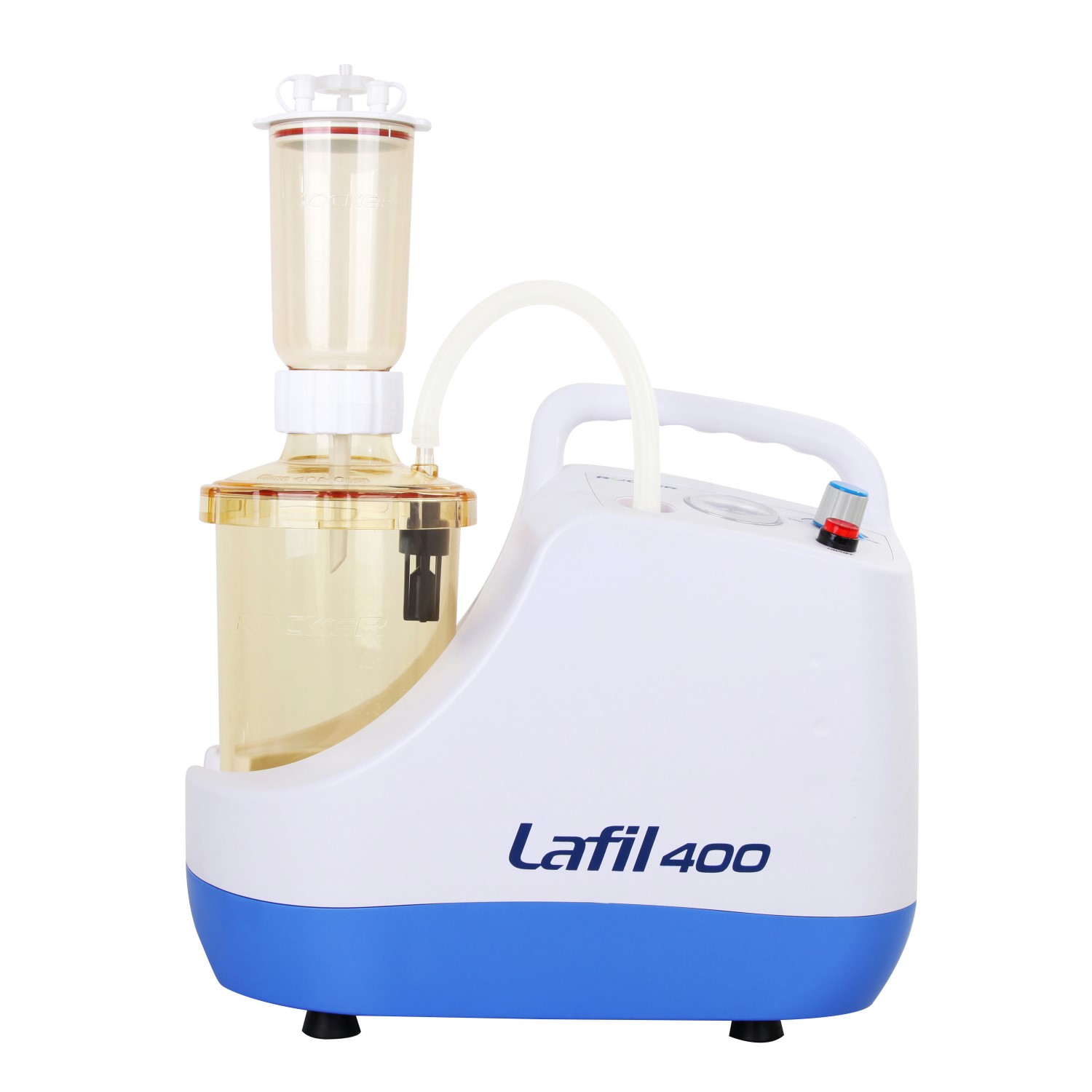

Lafil 400 – LF 30 Lafil filtration system
GENERAL DATA
Max. vacuum25 mbar abs.
Max. flow rate23 L/min @ 60 Hz ; 20 L/min @ 50Hz
Noise Level52 dB
ELECTRICAL DATA
Voltage110V220V
Frequency50 / 60 Hz
CAPACITY
Funnel capacity300 mL
Bottle/Flask capacity1200 mL
Filter diameter47 mm
OTHER DATA
Dimension(LxWxH)



34 x 24 x 30 cm
Equipped withVacuum regulator
Overflow protection
Funnel lid

Filtration System Ordering Information

Part NumberDescription

197401-11

Lafil 400 – LF 30, Vacuum Filtration System, AC110V, 60Hz

197401-22

Lafil 400 – LF 30, Vacuum Filtration System, AC220V, 50Hz

197400-11

Lafil 400, Vacuum Pump, AC110V, 60Hz

197400-22

Lafil 400, Vacuum Pump, AC220V,50Hz

197010-30LF 30, 47 mm PES Filtration set

Filtration System Features

Compact & safe
Lafil 400 filtration system integrates vacuum source, and all other filtration accessories into one single system. Save 50% bench space and stay safe with its tripping-proof and spill-proof fence-like platform.
Clamp-free with spin-lock
SF 10 bottles are equipped with filter holders that can be mounted with revolutionary spin-lock and be totally clamp-free.
Overflow protection
The PC waste bottle comes with a built-in overflow protection to keep the filtrate from overflowing when it is full.
Autoclavable and shatterproof
The waste bottle and filter holder are made of engineering plastics and SS316 stainless steel which are shatterproof, heat-resistant and autoclavable.


Features :

Youtube Video :

All in One Vacuum Filtration System - Lafil 400







Attribute nameAttribute value
ModelLF 30
Funnel Capacity300ml
Flask/Bottle Capacity1200ml
Filter diameter47mm
