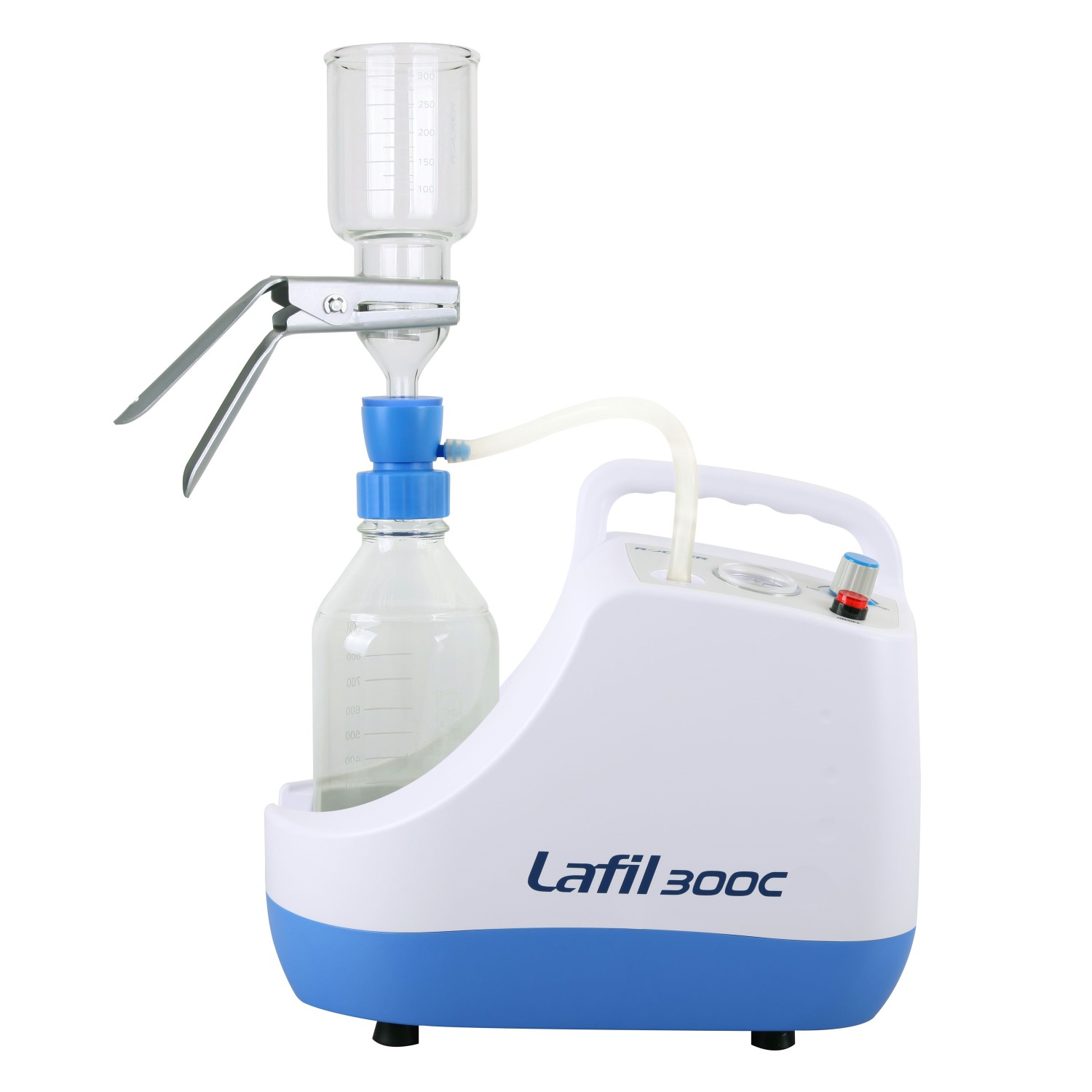

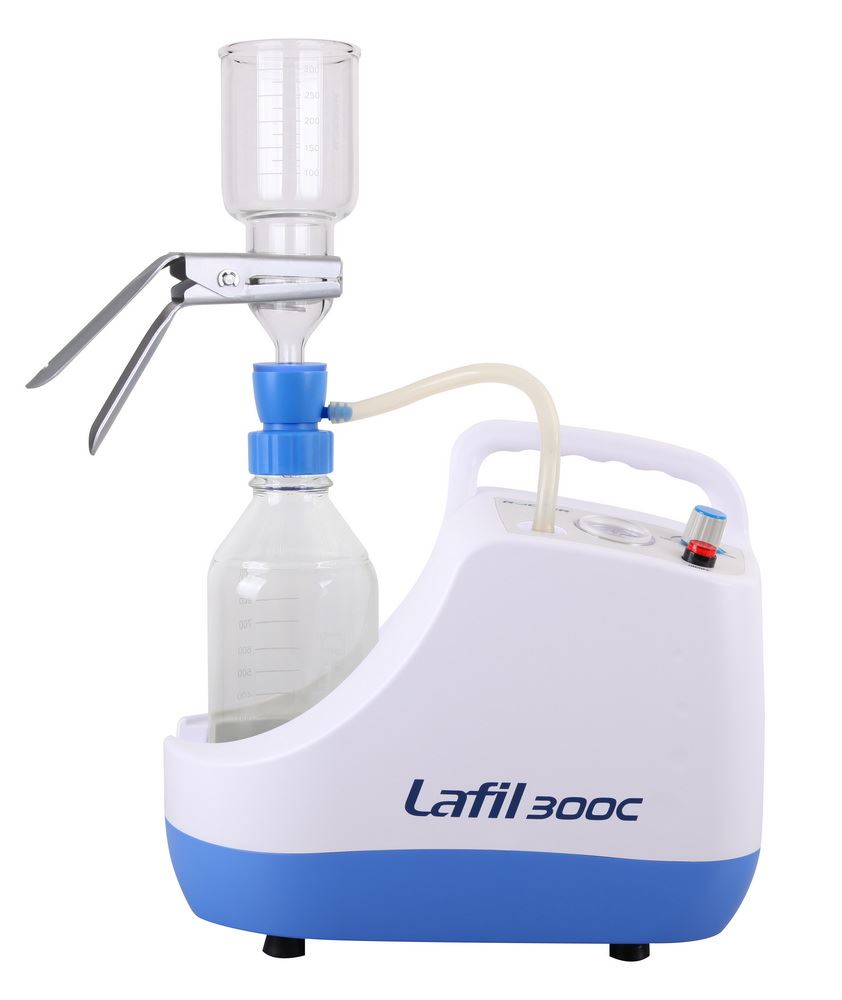

197331-22 Lafil 300C - VF 12 Vacuum Filtration System

Lafil 300C-VF12, PTFE Coated Chemical Resistant Vacuum Filtration System, AC220V, 50Hz with EU plug

SKU: 197331-22

Manufacturer: Rocker

Lafil 300C – VF 12 Lafil filtration system
GENERAL DATA
Max. vacuum	99 mbar abs.
Max. flow rate	23 L/min @ 60Hz, 20 L/min @ 50Hz
Noise Level	50 dB
ELECTRICAL DATA
Voltage	110V	220V
Frequency	50 / 60 Hz
Max. Power	65W	60W
Max.current	0.7A	0.3A
CAPACITY
Funnel capacity	300 mL
Bottle/Flask capacity	1000 mL
Filter diameter	47 mm
OTHER DATA
Net weight	5.9 Kg
Dimension(LxWxH)	34 x 24 x 30 cm
Equipped with	Vacuum regulator

Solvent Purification System Ordering Information

Product Part Number	Product
197331-11(22)	Lafil 300C – VF 12 Solvent Purification System,AC110V, 60Hz (AC220V, 50Hz) Complete Set Includes : Lafil 300C, PTFE Coated Chemical Resistant Vacuum Pump VF 12, Glass Filtration Apparatus
197330-11(22)	Lafil 300C, PTFE Coated Vacuum Pump,AC110V, 60Hz (AC220V, 50Hz)
167200-12	VF 12, Glass Filtration Apparatus
167120-31	Glass filter holder, 300 mL
197000-59	Glass storage bottle, 1000 mL

Solvent Purification System Features

Unique all-in-one platform
Lafil series vacuum pump is an unique filtration system by combining vacuum source with filtration apparatus. Its compact design can save much bench space than the traditional ones. With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.
Oil-free & care-free
Lafil 300C pumps are driven by diaphragm that needs no lubricant, making them maintenance-free and oil-mist-free.
Chemical resistant
Lafil 300C can offer moderate resistance to a wide range of corrosive gases as compared to general vacuum pumps.
One-step filtration
Filter and store directly in all GL45 bottles to prevent repetitive transfers and cross-contamination.

Youtube Video :

All in 1, Space-Saving Vacuum Filtration System
