197302-22 Lafil 300 - SF 10, Vacuum Filtration System,　AC220V, 50Hz

Lafil 300-SF10, Vacuum Filtration System, AC220V, 50Hz with EU plug

SKU: 197302-22

Manufacturer: Rocker

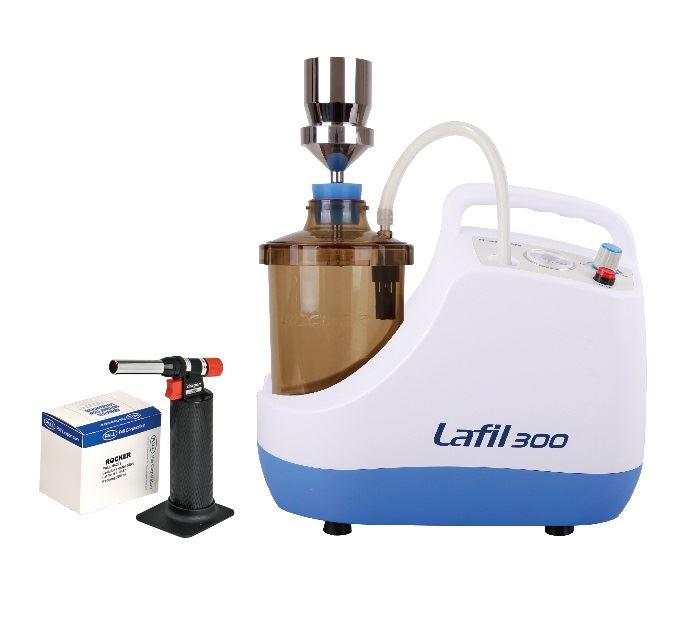

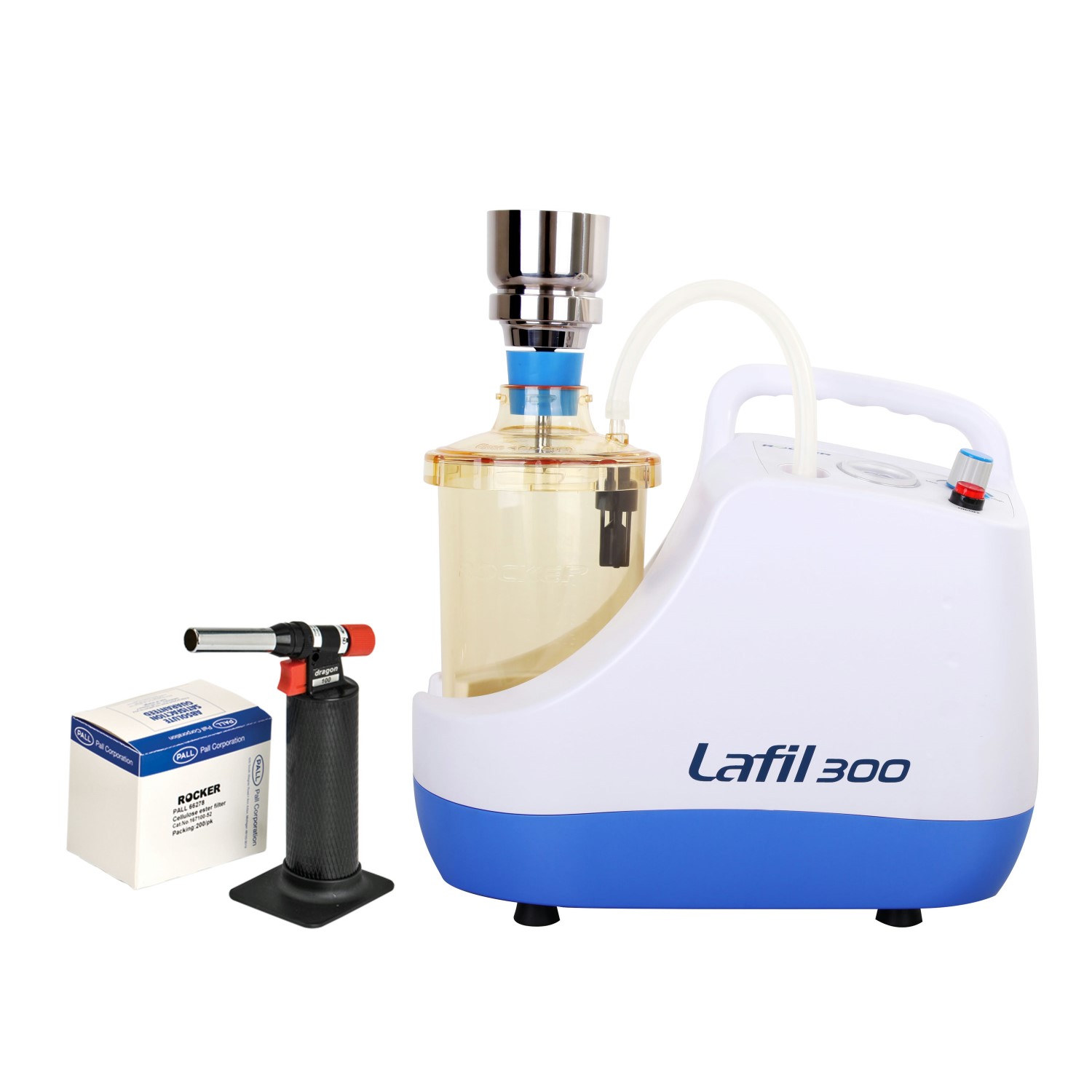

Lafil 300 – SF 10 Lafil filtration system
GENERAL DATA
Max. vacuum	99 mbar abs.
Max. flow rate	23 L/min @ 60Hz, 20 L/min @ 50Hz
Noise Level	50 dB
ELECTRICAL DATA
Voltage	110V	220V
Frequency	50 / 60 Hz
Max. Power	65W	60W
Max.current	0.7A	0.3A
Safety functions	Proteᵀᴹ Overflow protection
CAPACITY
Funnel capacity	100 mL
Bottle/Flask capacity	1200 mL
Filter diameter	47 mm
OTHER DATA
Net weight	5.9 Kg
Dimension(LxWxH)	34 x 24 x 30 cm
Equipped with	Vacuum regulator

Filtration System Ordering Information

Product Part Number	Product
197302-11(22)	Lafil 300 – SF 10, Vacuum Filtration System, AC110V, 60Hz (AC220V, 50Hz)
197300-11(22)	Lafil 300, Vacuum Pump, AC110V, 60Hz (AC220V, 50Hz)
197010-32	SF 10, Stainless Steel Filtration Set

Filtration System Features

Compact & safe
Lafil 300 filtration system integrates vacuum source, and all other filtration accessories into one single system. Save 50% bench space and stay safe with its tripping-proof and spill-proof fence-like platform.
Clamp-free with spin-lock
SF 10 bottles are equipped with filter holders that can be mounted with revolutionary spin-lock and be totally clamp-free.
Overflow protection
The PC waste bottle comes with a built-in overflow protection to keep the filtrate from overflowing when it is full.
Autoclavable and shatterproof
The waste bottle and filter holder are made of engineering plastics and SS316 stainless steel which are shatterproof, heat-resistant and autoclavable.

Features :

Youtube Video :

All in 1, Space-Saving Vacuum Filtration System
