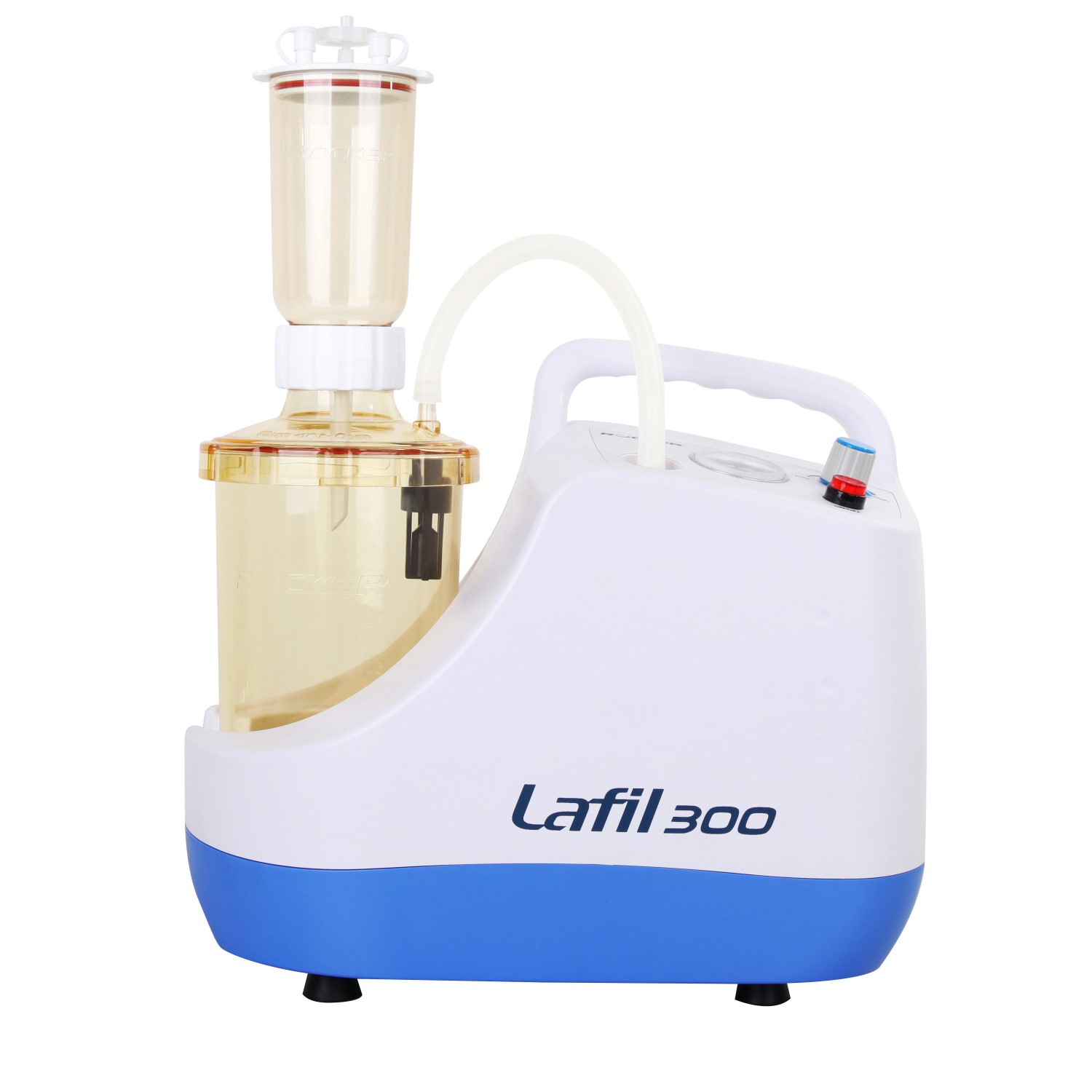

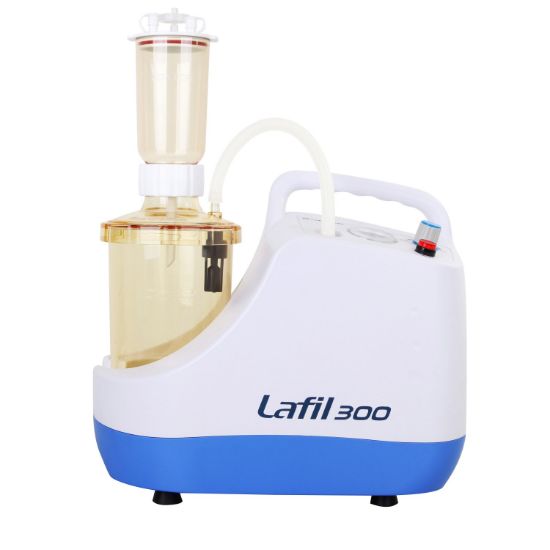

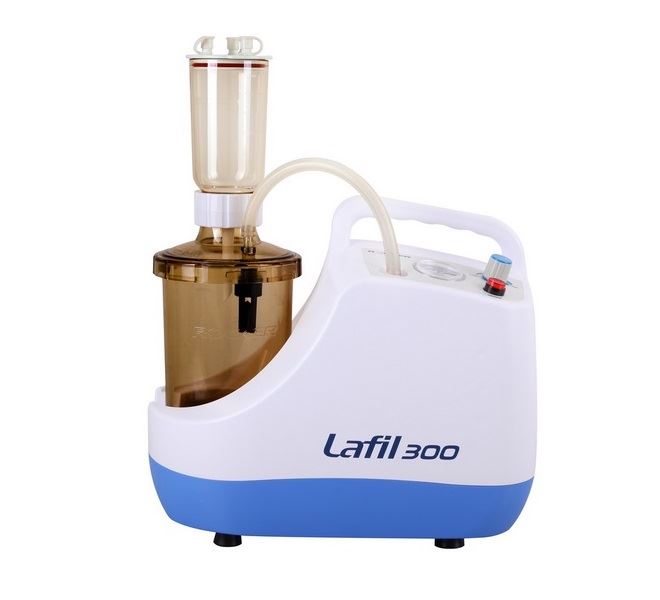

197301-22 Lafil 300 - LF 30, Vacuum Filtration System,

Lafil 300-LF30, Vacuum Filtration System, AC220V, 50Hz with EU plug
SKU: 197301-22
Manufacturer: Rocker



Features :

Youtube Video :

All in 1, Space-Saving Vacuum Filtration System

◆ Compact and safe operation

Lafil series is an unique filtration system by combining vacuum source with filtration ware. Its compact design can save much bench space than the traditional ones. With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.

◆ The patented spin-lock design

The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.

◆ Overflow protection

Waste bottle comes with a built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.

◆ Autoclavable

Waste bottle and filter holder is made of engineering plastics which are shatterproof, high temperature resistance and autoclavable.



International safety certification :

◆ CE certification

Applications :

◆ Filtration for microbiology test

◆ Suspended solid test

◆ Vacuum filtration

Specification (110V, 60Hz)

◆ Max. power: 100 W

◆ Max. current:1.0 A

◆ Max. vacuum: 680 mmHg

◆ Max. flow rate: 23 l/min

◆ Motor rotation: 1750 RPM

◆ Hose barb: 5/16 inch (8 mm)

◆ Dimension (LxWxH):33.5 x 23 x 45cm

Specification (220V, 50Hz)

◆ Max. power: 80 W

◆ Max. current:0.4 A

◆ Max. vacuum: 680 mmHg

◆ Max. flow rate: 20 l/min

◆ Motor rotation: 1450 RPM

◆ Hose barb: 5/16 inch (8 mm)

◆ Dimension (LxWxH):33.5 x 23 x 45cm

Material(Part):

◆ Filter funnel - PES(300ml,47mm /50mm)

◆ Waste bottle - PC( 1200 ml )

◆ Funnel support base - PP

◆ Funnel lid - PP

◆ Overflow protection - PP

Attribute nameAttribute value
ModelLF 30
Funnel Capacity300ml
Flask/Bottle Capacity1200ml
Filter diameter47mm
