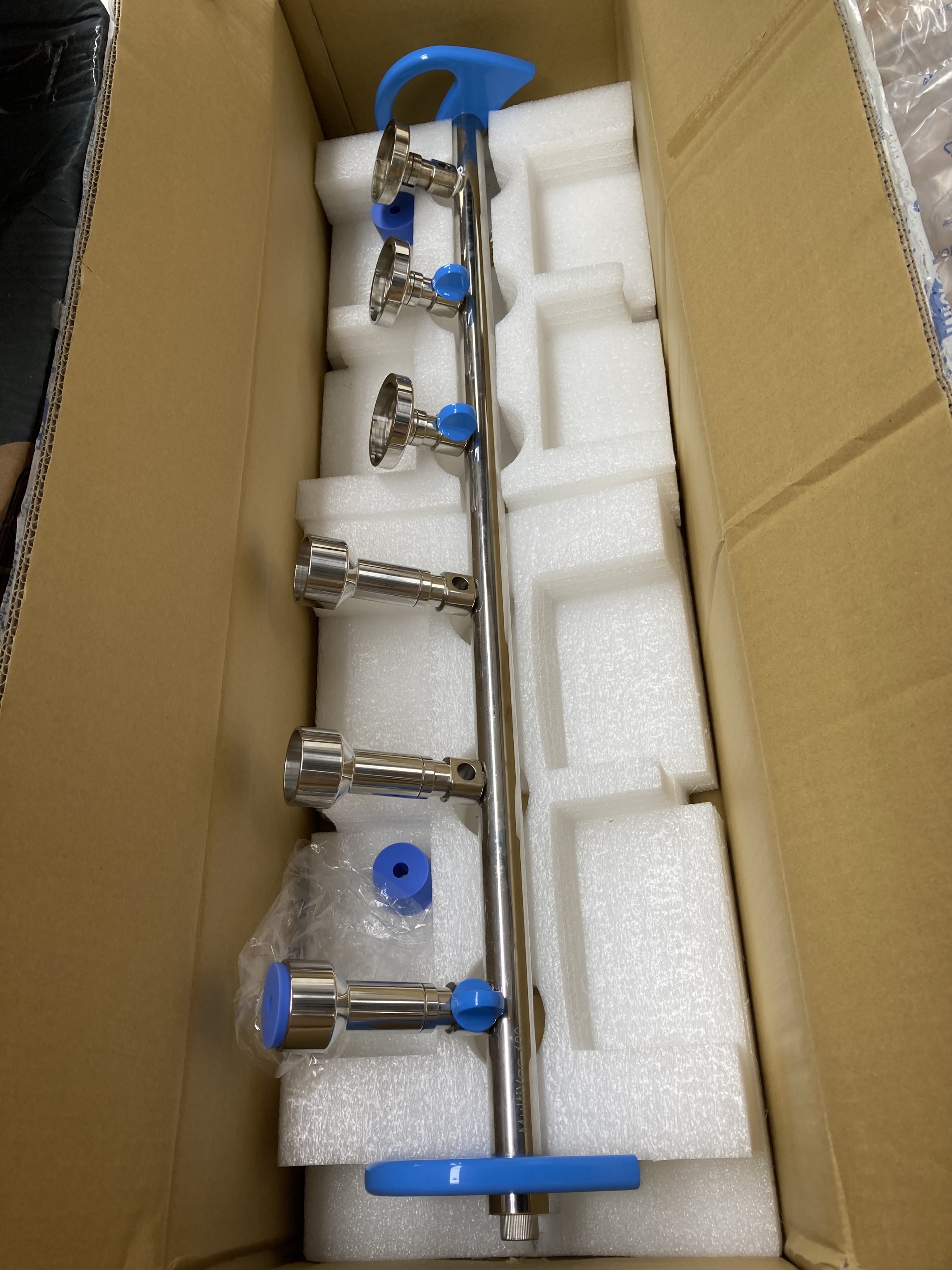

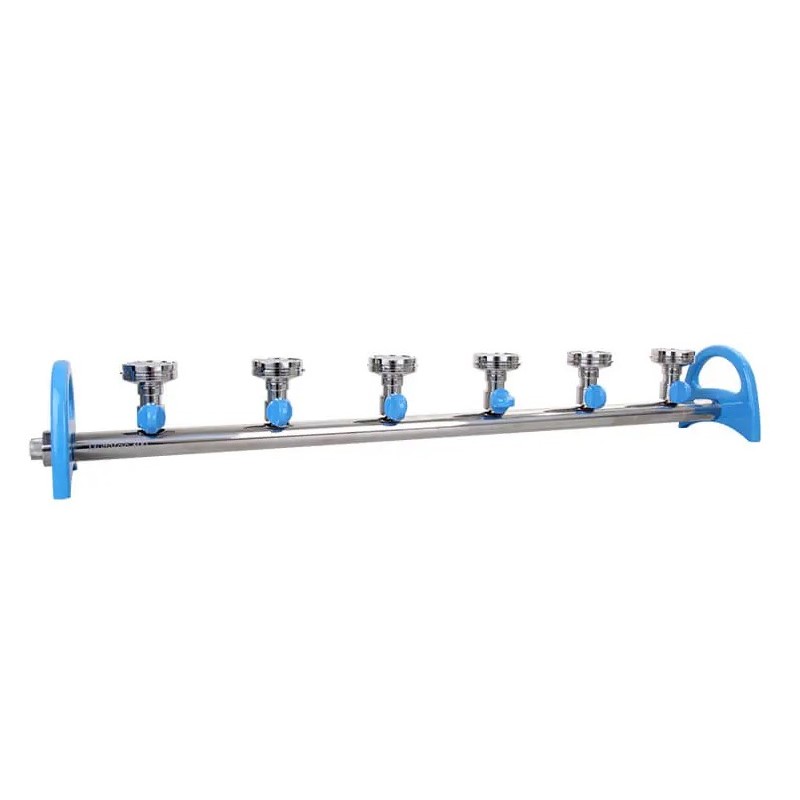

180600-02 MultiVac 600-MB, 6-Places StainlessSteel Manifold

New MultiVac 600-MB, 6 places stainless steel Manifold with Rocker SF funnel adaptor
SKU: 180600-02
Manufacturer: Rocker



MultiVac 600 Specification



SpecificationMaterial
▸ Number of branch: 6
▸ Filter diameter: 47 mm
▸ Funnel capacity: 100 ml / 300 ml / 500 ml (optional)
▸ Hose barb: ID8 (5/16 inch)
▸ Dimension (LxWxH): 85 x 13 x 11 cm
▸ Body: SS316
▸ Control valve: SS316
▸ Adaptor: SS316
▸ Membrane support: SS316
▸ Hose barb / Vent valve: SS316
▸ Handle / Knob: Aluminum

Features :

Youtube Video :

MultiVac Series Stainless Steel Multi-Branch Manifold



Multi-Branch Manifold Features:

◆ Quick-assembly and disassembly

Each component can be removed easily by hand for cleaning and autoclaving to prevent biofilms and eliminates sources of contamination.

◆ SS316 stainless steel

All wetted parts of MultiVac 600-MB manifold are made of SS316 stainless steel, which is more durable.

◆ Quick-Fit hose barb

Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.

◆ Innovative vent valve design

An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.

◆ Individual control valve

Each branch permits individual control.

◆ Compatible with different sizes of funnels

MultiVac 600-MB manifold can accpet Rocker SF stainless steel funnel – 100 / 300 / 500 ml at option.

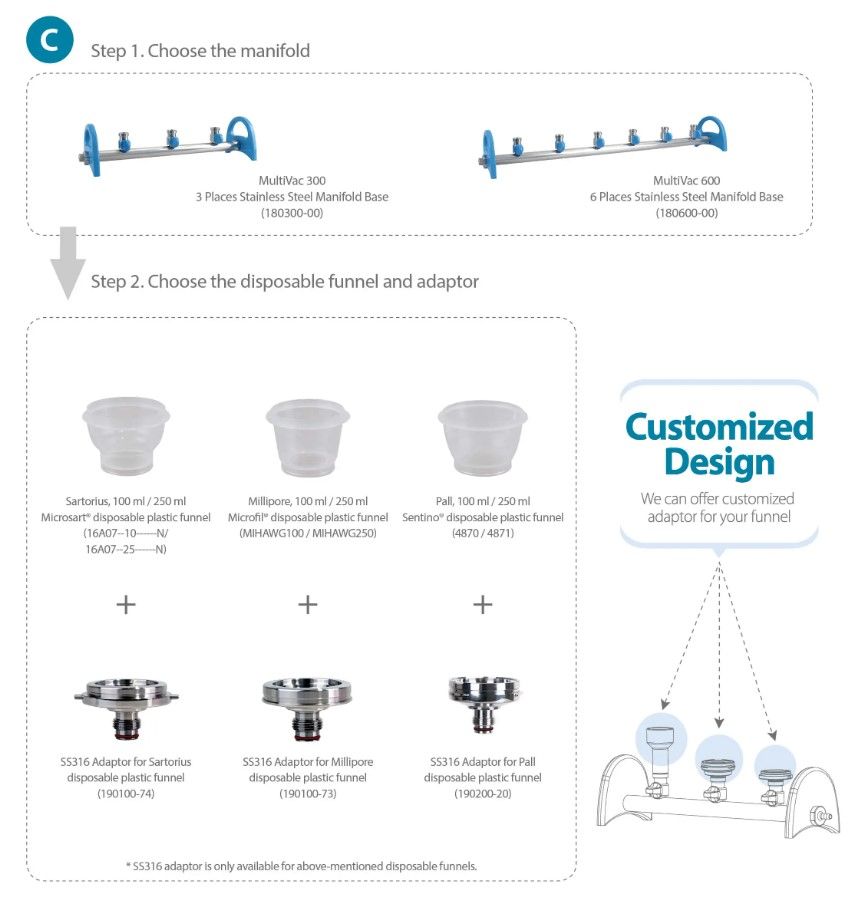

◆ Convertible funnel adaptor​​

Convertible funnel adaptor design allows user to fit their desired funnel (reusable or disposable) easily.

Multi-Branch Manifold Applications :

◆ Microbiological test

◆ Suspended solid test

◆ Vacuum filtration





Attribute nameAttribute value
ModelMultiVac 600 - MB
Num of branch6
