167308-22 Rocker 300 - LF 31, Vacuum Filtration

Rocker 300-LF31, Vacuum Filtration System, AC220V, 50Hz with EU plug
SKU: 167308-22
Manufacturer: Rocker

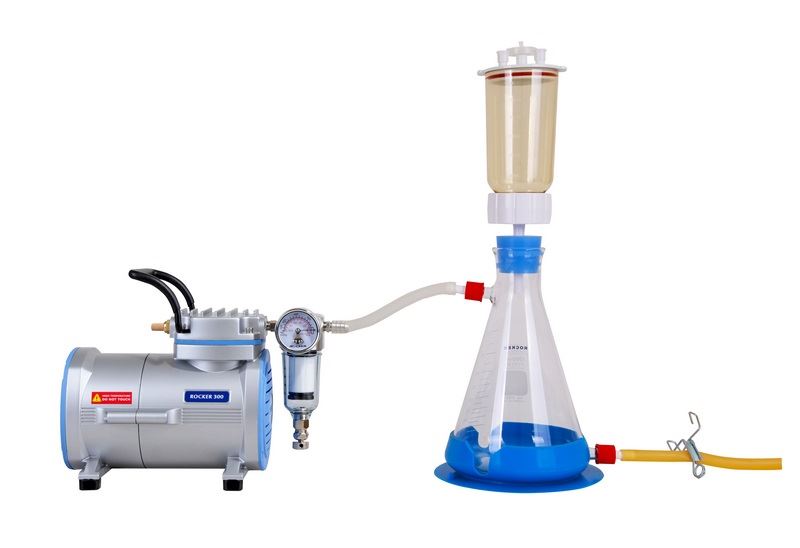

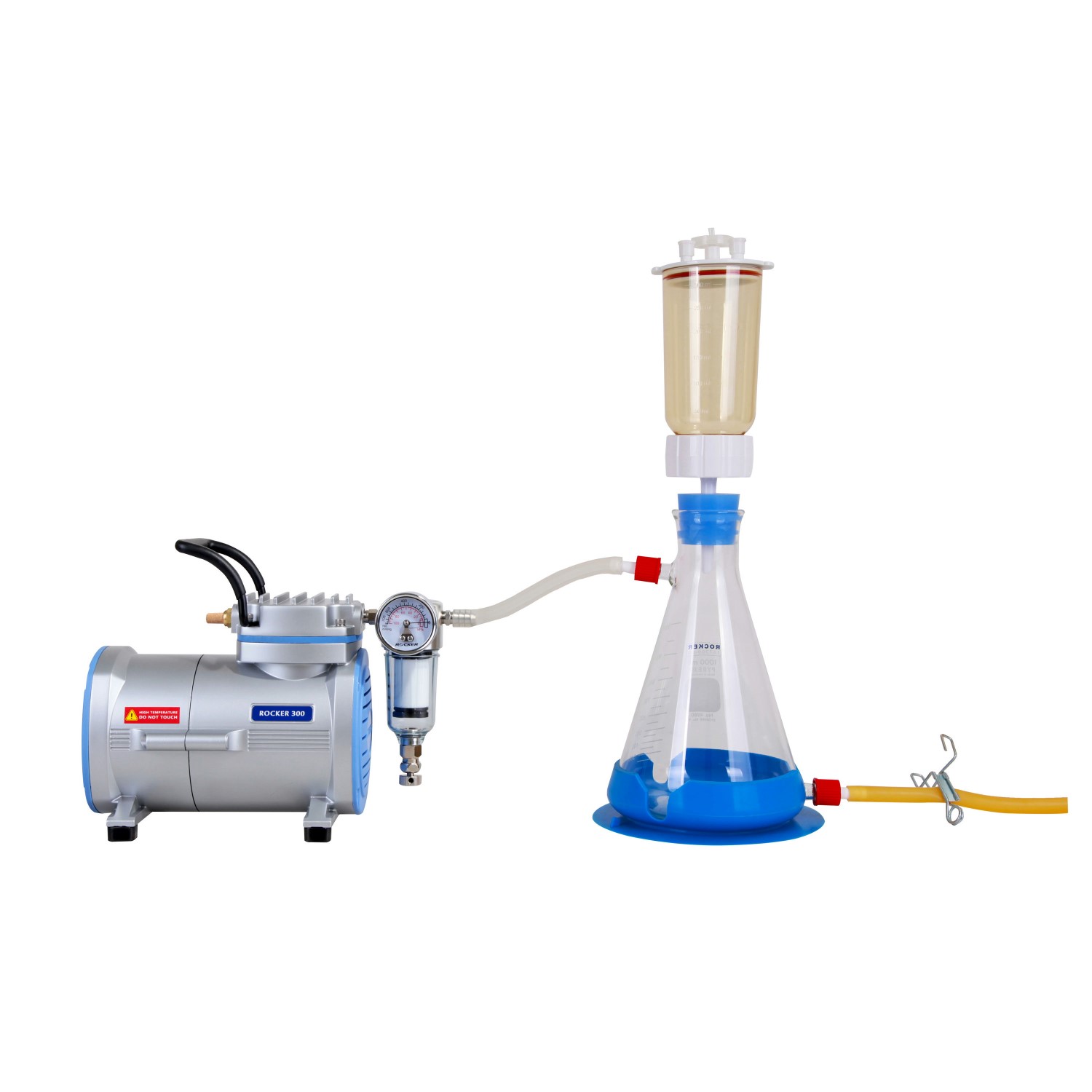

Rocker 300-LF 31 Vacuum Filtration System Includes

  • Rocker 300 Oil Free Vacuum Pump
  • LF 31 Filtration Set
  • Silicone Tube (1 m)

Rocker 300 Oil-free Vacuum Pump Specification

Rocker 300: 220V/50Hz

▸ Max. power: 60W
▸ Max. current: 0.3A
▸ Max. vacuum: 99 mbar abs.
▸ Max. flow rate: 20 L/min
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/8 HP
▸ Noise level: 50 dB
▸ Hose barb: ID8 (5/16 inch)
▸ Vacuum Regulator: Yes
▸ Overflow protection: Yes
▸ Thermal protection: Yes

Filtration System Ordering Information

Part NumberProduct

167308-11(22)

Rocker 300 – LF 31, Vacuum Filtration System, complete set includes : * Rocker 300, Oil Free Vacuum Pump
* LF 31, Filtration Set
* Silicone Tube (1m)

197010-31

LF 31, 47 mm PES Filtration set

Filtration System Features

No air pollution, maintenance free
Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.
The patented spin-lock design
The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.
Overflow protection
The waste bottle of Rocker 300 – LF 31 comes with a built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.


Filtration System International certificates
CE certification (Rocker 300)
CSA certification (Rocker 300)
IP30 protection (Rocker 300)
RoHS certification (Rocker 300)


Filtration System Applications
Rocker 300 – LF 31 is ideal for general vacuum filtration in laboratory



Attribute nameAttribute value
ModelLF 31
Funnel Capacity100ml
Flask/Bottle Capacity1200ml
Filter diameter47mm
