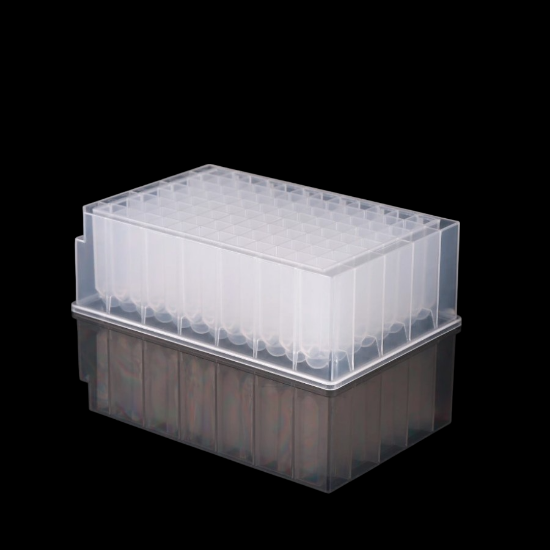

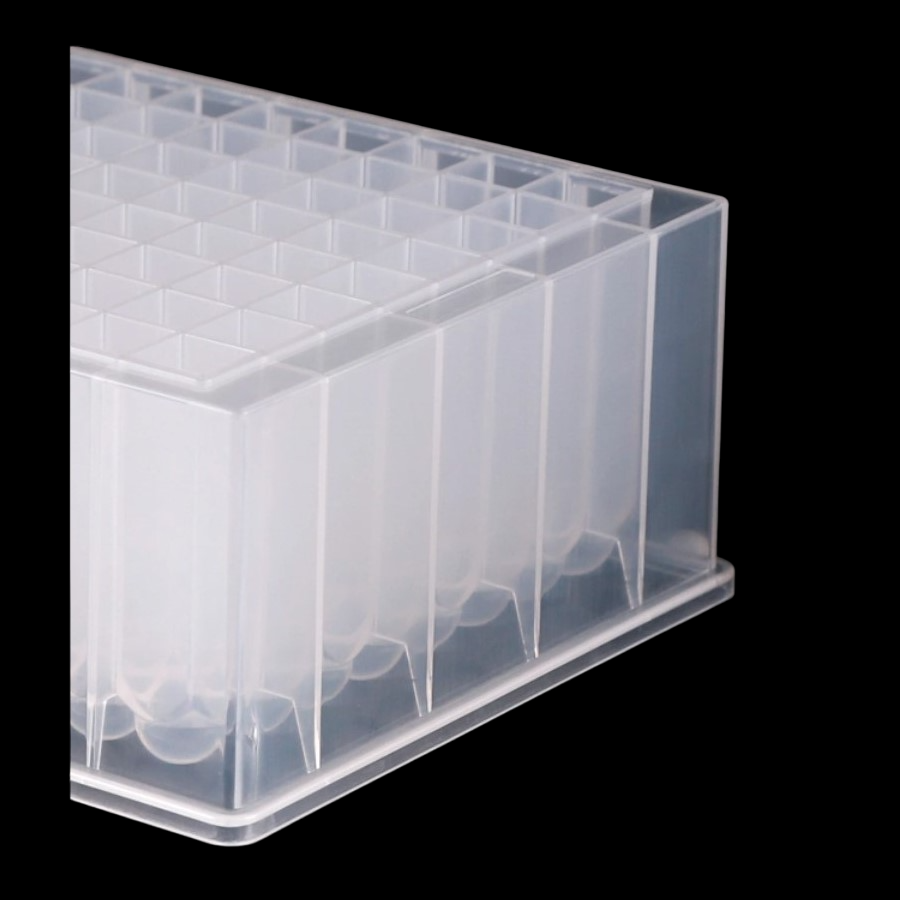

1.6 mL 96-Well Deep Well Plate, U-Bottom, Square Well, Sterile, 5/pk, 50/cs, 502062

1.6 mL 96-Well Deep Well Plate, U-Bottom, Square Well, Sterile, 5/pk, 50/cs
SKU: 502062
Manufacturer: Nest
Pack Size: 50

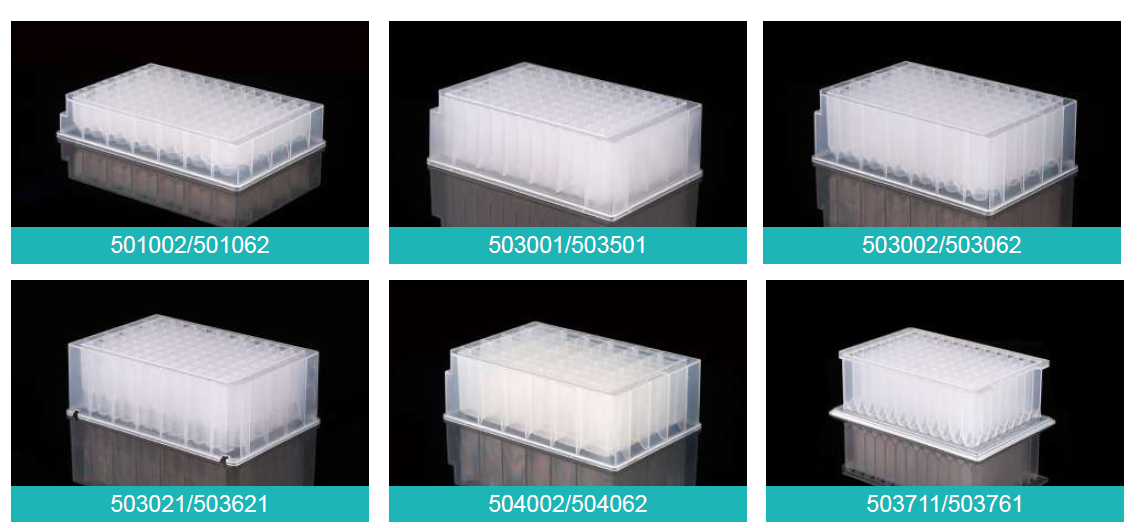

Deep Well Plate (Square Well)

Cat.No.

Description

Sterile

/Pack

/Case

504002
4.6 mL 48-Well Deep Well Plate, U-Bottom, Square Well
Sterile
550
504062
4.6 mL 48-Well Deep Well Plate, U-Bottom, Square Well
Non-Sterile
550
501002
1.0 mL 96-Well Deep Well Plate, U-Bottom, Square Well
Non-Sterile
550
501062
1.0 mL 96-Well Deep Well Plate, U-Bottom, Square Well
Sterile550
502002
1.6 mL 96-Well Deep Well Plate, U-Bottom, Square Well
customizable
550
503001
2.0 mL 96-Well Deep Well Plate, V-Bottom, Square Well
Non-Sterile
550
503501
2.0 mL 96-Well Deep Well Plate, V-Bottom, Square Well
Sterile550
503002
2.2 mL 96-Well Deep Well Plate, U-Bottom, Square Well
Non-Sterile550
503062
2.2 mL 96-Well Deep Well Plate, U-Bottom, Square Well
Sterile550
503711
2.2mL, 96-well, I-shaped, Square Well, U-Bottom
Non-Sterile550
503761
2.2mL, 96-well, I-shaped, Square Well, U-Bottom
Sterile550
510011
16mL 24-Well Deep Well Plate+Plastic Comb, Square Well, V-Bottom
Sterile150
510001
16mL 24-Well Deep Well Plate, Square Well, V-Bottom
Sterile150
503621
2.2 mL 96-Well Deep Well Plate, V-Bottom, Square Well, Compatible with Kingfiser Flex&Presto
Sterile550
503021
2.2 mL 96-Well Deep Well Plate, V-Bottom, Square Well, Compatible with Kingfiser Flex&Presto
Non-Sterile550
500621
0.5 mL 96-Well Deep Well Plate, V-Bottom, Square Well, Compatible with Kingfiser Flex&Presto
Sterile550
500021
0.5 mL 96-Well Deep Well Plate, V-Bottom, Square Well, Compatible with Kingfiser Flex&Presto
Non-Sterile550



96-well I-shaped deep well plate + 8-Well Plastic Comb may be used with these instrument brands: TIANLONG Nucleic Acid Extraction System&TAN bead Nucleic Acid Extraction System

The length and width of the deep well plate comply with the SBS international standards. The depth of wells is increased based on the appearance and size of normal plates (mainly 96-well and 384-well plates) to enlarge the volume of each well. In addition, the manufacturing material (currently mostly used is polypropylene (PP)) is changed and the surface treatment process has been improved for this series of deep well plates to adapt to its specific use range. The deep well plates of NEST have a variety of specifications, conforming with the needs of fully automatic workstations and experiments.

1. Sample storage: it can replace the conventional 1.5ml centrifuge tube to store samples, and can be arranged tidily to save space, with large storage capacity, and can withstand the -80℃ refrigerator condition. Therefore, it’s also called storage plate.

2. Sample processing: it can be used in combined with multipass pipettes, high-throughput automatic liquid processors and respective softwares to allow the high-throughput operation of biological samples, for example, protein precipitation, liquid extraction, nucleic acid extraction,etc. Greatly improve the efficiency of sample processing. Can withstand high temperature and high pressure sterilization at 121℃.

3. Sample injection: suitable for the automatic devices of various companies, it can be directly placed in the sample compartment of the automatic device for injection. Compared to conventional sample injection, it can not only double the sample amount placed in the sample compartment, but also realizes the direct sample injection of samples after processing on the 96-well plate, eliminating the tedious work of pipetting and placing samples back and forth.

Genomic DNA extraction, plasmid DNA extraction, and nucleic acid extraction and purification of various samples. High-throughput automatic liquid operation to achieve high-throughput operations, such as protein precipitation, liquid extraction, and processing of animal tissues, bacteria, plants, soil, clinical samples, yeasts, etc.

USP VI Polypropylene material, High chemical stability;

1.  Temperature range: -80°C to 120°C

2.  Autoclavable

3.  Centrifugal strength up to 3000g

4.  Compatible with multi-channel pipette and automatic equipment

5.  Optimized bottom design to minimize residual volume

6.  Clear alphanumeric codes for easy identification

7.  Conform to SBS/ ANSI

8.  Specific 96 well deep plate used in nucleic acid extraction

9.  Stackable, reliable tight sealing

10.  Non-pryogenic, DNase/RNase free



Attribute nameAttribute value
Pack Size50
Wells96-well, Square Well
BottomU-bottom
TypeSterile
Volume1.6ml
