150 mL Vacuμm Filtration, 0.22 μm, PVDF, Sterile, 1/pk, 12/cs, 346101

150 mL Vacuμm Filtration, 0.22 μm, PVDF, Sterile, 1/pk, 12/cs
SKU: 346101
Manufacturer: Nest
Pack Size: 12





Product description:

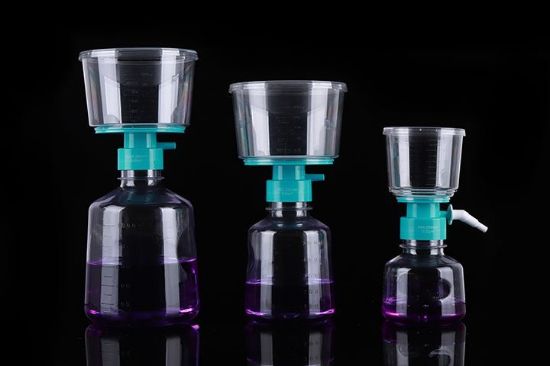

NEST Vacuum Filtration System is mainly applied in the isolation and purification of large volume samples in tissue culture medium and biological fluid. The system consists of a membrane diaphragm, a receiving bottle connected to a transparent graduated polystyrene filter by a connector. With the pressure differential conducted by the vacuum pump, the Vacuum Filtration System can filtrate the tissue culture medium and other lab fluid solution in large volumes even up to several Liters. The filtrated samples can be directly gathered in aseptic storage bottles.

Product Feature:

1.   High flow rates and high throughput
2.   Precise graduation on the bottle wall
3.   Various specifications:Membrane materials include: PES, PVDF、CA、MCE ; Volume: 250ml、500ml and 1000ml
4.   Low protein binding
5.   Gamma-ray sterilization
6.   Filter diameter: 250ml volume for the 50mm membrane diameter 500ml volume for the 90mm membrane diameter
7.   The design of hose connector is adaptable to various hose diameters.
8.   Light weight and firm outer wall structure, easy to grasp
8.It is not recommended to recycle any hazardous substances, hazardous wastes or biochemical hazardous materials involved.


Vacuum Filtration, PVDF Membrane
Cat.No.Volume (mL)Pore Density (μm)/Pack/Case
347102(new)500.1112
347101(new)500.22112
347103(new)500.45112
346102(new)1500.1112
346101(new)1500.22112
346103(new)1500.45112
3421022500.10112
3421012500.22112
3421032500.45112
3431025000.10112
3431015000.22112
3431035000.45112
34410210000.10112
34410110000.22112
34410310000.45112



Vacuum Filtration, MCE Membrane
Cat.No.Volume
(mL)
Pore Density
(μm)
/Pack/Case
347202(new)500.1112
347201(new)500.22112
347203(new)500.45112
346202(new)1500.1112
346201(new)1500.22112
346203(new)1500.45112
3422022500.10112
3422012500.22112
3422032500.45112
3432025000.10112
3432015000.22112
3432035000.45112
34420210000.10112
34420110000.22112
34420310000.45112

Vacuum Filtration, PES Membrane
Cat.No.Volume
(mL)
Pore Density
(μm)
/Pack/Case
347002(new)500.1112
347001(new)500.22112
347003(new)500.45112
346002(new)1500.1112
346001(new)1500.22112
346003(new)1500.45112
3420022500.10112
3420012500.22112
3420032500.45112
3430025000.10112
3430015000.22112
3430035000.45112
34400210000.10112
34400110000.22112
34400310000.45112

Vacuum Filtration, CA Membrane
Cat.No.Volume
(mL)
Pore Density
(μm)
/Pack/Case
347302(new)500.1112
347301(new)500.22112
347303(new)500.45112
346302(new)1500.1112
346301(new)1500.22112
346303(new)1500.45112
3423022500.10112
3423012500.22112
3423032500.45112
3433025000.10112
3433015000.22112
3433035000.45112
34430210000.10112
34430110000.22112
34430310000.45112

Bottle Top Vacuum Filter
Cat.No.Volume
(mL)

Memberane

(μm)

/Pack/Case
347312(new)500.1, CA124
347012(new)500.1, PES124
347112(new)500.1, PVDF124
347212(new)500.1, MCE124
347311(new)500.22, CA124
347011(new)500.22, PES124
347111(new)500.22, PVDF124
347211(new)500.22, MCE124
347313(new)500.45, CA124
347013(new)500.45, PES124
347113(new)500.45, PVDF124
347213(new)500.45, MCE124
346312(new)1500.1, CA124
346012(new)1500.1, PES124
346112(new)1500.1, PVDF124
346212(new)1500.1, MCE124
346311(new)1500.22, CA124
346011(new)1500.22, PES124
346111(new)1500.22, PVDF124
346211(new)1500.22, MCE124
346313(new)1500.45, CA124
346013(new)1500.45, PES124
346113(new)1500.45, PVDF124
346213(new)1500.45, MCE124
3420112500.22 μm, PES124
3421112500.22 μm, PVDF124
3430115000.22 μm, PES124
3431115000.22 μm, PVDF124
34401110000.22 μm, PES124
34411110000.22 μm, PVDF124

Reciever Bottle
Cat.No.Volume
(mL)
/Pack/Case
346021(new)150124
342021250124
343021500124
3440211000112




Warning!
1.Do not use plastic bottles, glass bottles, flasks or containers that are not designed for filtration and cannot withstand negative pressure to connect to the upper cup
2.Not suitable for culture flasks larger than 2L
3.Working temperature: 4-37°C
4.Working pressure: 0.03-0.06Mpa, if there is foam, please reduce pressure appropriately.
5.Tighten the upper cup and bottle mouth by hand, but do not over tighten
6.Personal protective equipment must be used at all times, and goggles must be worn when using vacuum equipment
7.Work on the aseptic operating table



Attribute nameAttribute value
Pack Size12
MediaPVDF
Volume150ml
Pore Size0.22um
