Innovative hanging design facilitates pipetting.

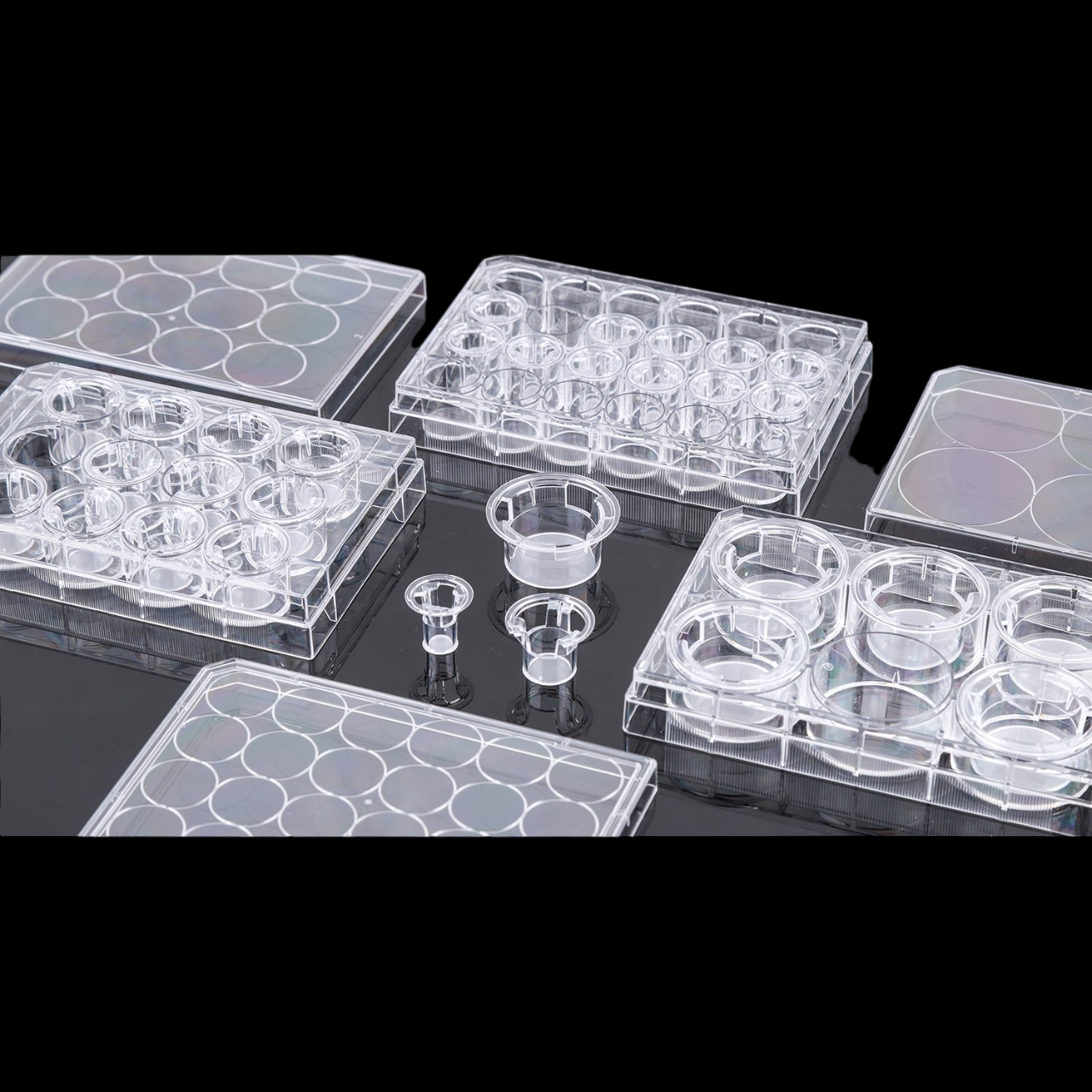

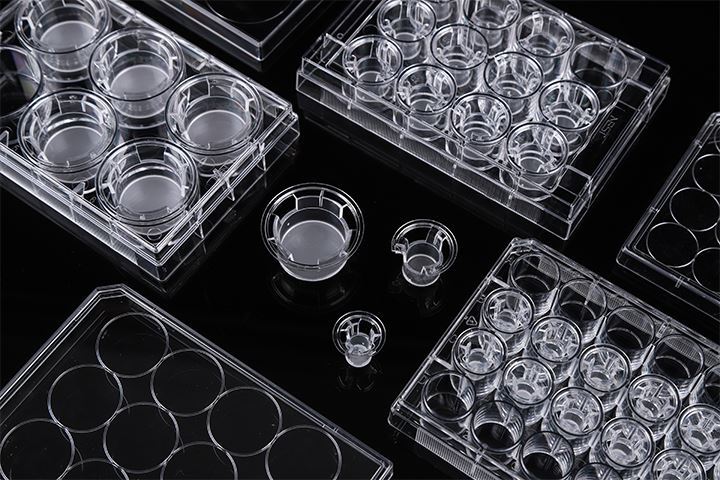

Supplied in multiple well plates: 6-well, 12-well, 24well.
PC membrane: low adsorption rate, reducing the loss of small molecular proteins and other compounds
Transparent PET inserts permit sufficient optical transparency for visualization of cell outlines by phase contrast microscopy.
Transparent PET membrane is easy to observe.
The PC membrane is not easy to be torn or curled, and it is easy to operate when taking out the chamber.
Compatible with most solvents used for fixing and dyeing.
Application:Permeable supports, also known as Cell Culture Inserts, are an essential tool for the study of both anchorage-dependent and
independent cell lines.
This product produce a cell culture environment that closely resembles an in vivo state. Allow polarized cells to carry out
metabolic activities in a more natural manner because the cells feed both apically and basolaterally.
Application: co-culture, epithelial cell polarity, migration, invasion, transport and permeability studies.
| packing specification | Inserts/plate | Insert Diameter(mm) | Well Volume(ml) | Insert Volume(ml) | Insert Membrane Growth Area(cm²) |
| 100mm dish | 1 inserts | 75 | 13 | 9 | 44 |
| Pore Size(um) | Membrane Density(well/cm²) |
| 0.4 | 1x10^8 |
| 3.0 | 2x10^6 |
| 5.0 | 4x10^5 |
| 8.0 | 1x10^5 |

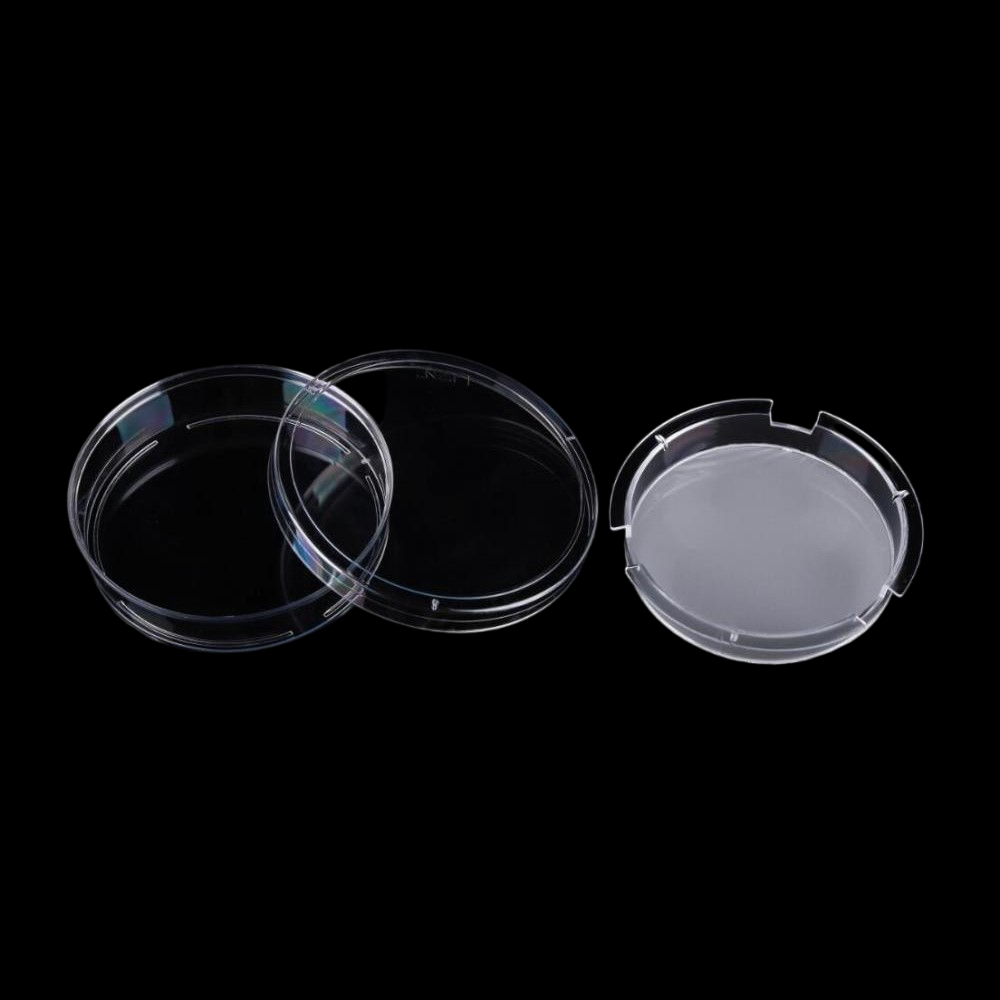

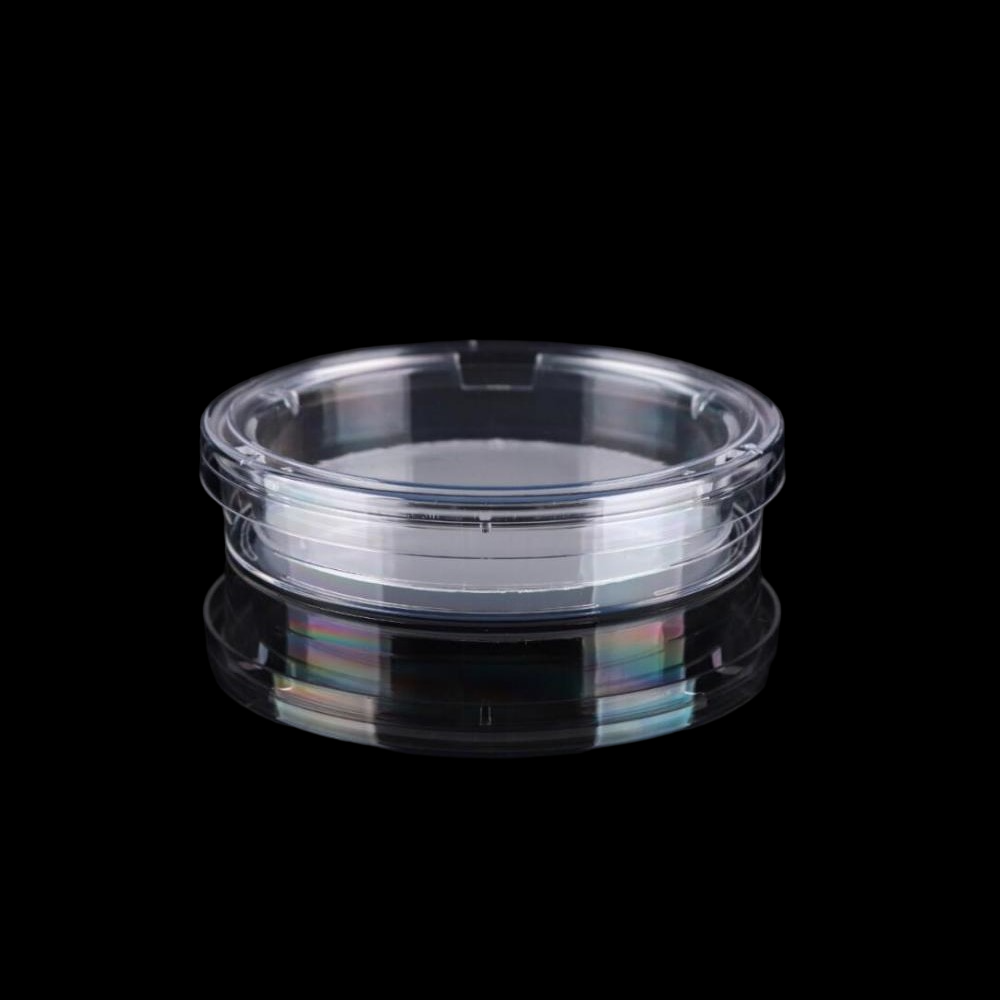

50% Transparent PC Membrane Cell Insert, Tissue Culture Treated(Individually packaged in peelable Tyvek film and Blister,10/case)
| Cat.No. | Type(Well) | Pore Size(um) |
| 726001 | 100mm dish | 3.0 |
