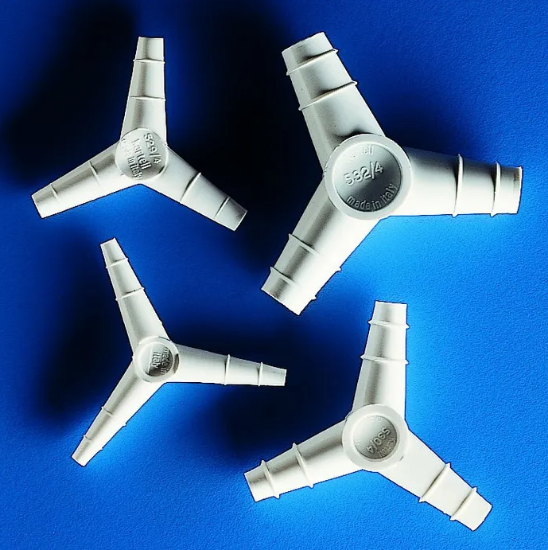

Picture of Y CONNECTORS PP 4-6 mm KAR527

Y CONNECTORS PP 4-6 mm KAR527

Y CONNECTORS PP
SKU: KAR527
Manufacturer: Kartell



PRODUCT DESCRIPTION

Autoclavable. Dimensions are shown as both nominal and exact as elasticity of hoses will influence the choice of size. Use hoses selector Art. 1759 to determine "grip". This will then give equivalent crest dimension for the particular connector concerned.

TESTED ACCORDING TO REACH REGULATION 1907 / 2006 ANNEX XVII

PRODUCT SPECIFICATION

Art.Nominal O.D.Crest O.D. mm max/minValley O.D. mm max/minBore mm
5274 / 5 / 64.1 / 5.13.8 / 4.71.5
5286 / 7 / 85.5 / 7.25.2 / 7.02.7
5298 / 9 / 107.0 / 9.26.9 / 8.84.7
53010 / 11 / 129.9 / 11.59.8 / 10.75.5
53112 / 13 / 1412.0 / 14.211.1 / 13.27.6
53214 / 15 / 1613.7 / 15.513.0 / 14.99.6
Attribute nameAttribute value
ShapeY
Diameter4-6mm
