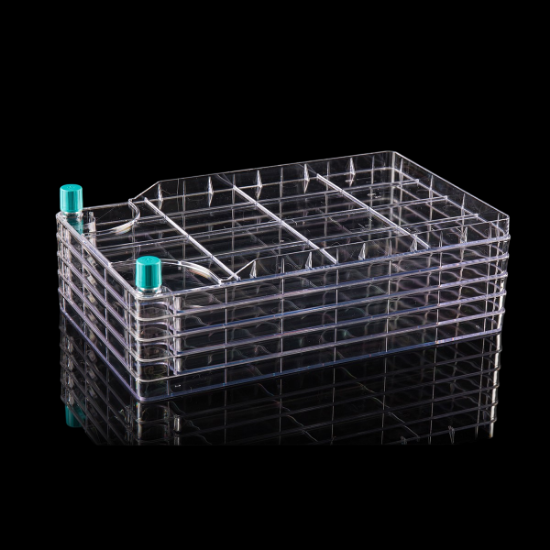

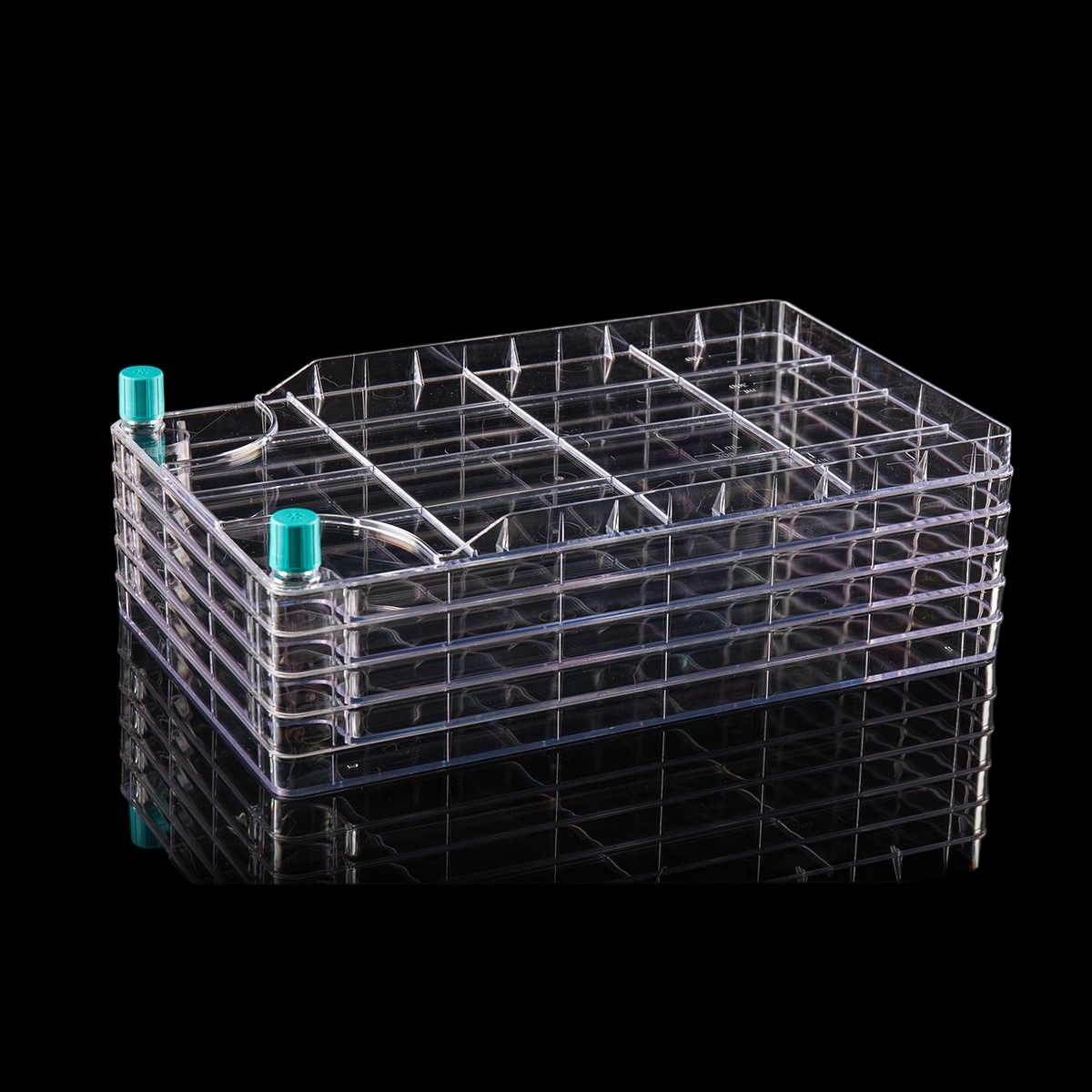

Nest BioFactory 5 Chamber Narrow Mouth 772204

Nest BioFactory 5 Chamber; 1 Narrow Vent Cap + 1 Narrow Plug Seal Cap; Total culture area: 3175cm2; TC; sterile, 1/pk, 4/cs (with 4 sterile na
SKU: 772204
Manufacturer: Nest
Pack Size: 4



Product Features
• Made of high clarity, 100% virgin polystyrene.
• Sterilized by E-beam, SAL=10-6.
• Non-Pyrogenic, DNase/Rnase free.
• Individually packaged in double-layer sterile bags.
• TC treated, good for cell attachment and growth.
• Clear lot number for batch traceability.
• Ultrasonic welding without extrinsic ingredients.
• Excellent welding line design can avoid producing particles during welding and make the biofactory stronger (Under Features 7th line).
• Vent caps with 0.22 μm hydrophobic filters for gas exchange without contamination.
• Wide mouth is applicable to pour culture medium directly. Narrow mouth is applicable to operate with the aseptic pipeline.
• Growth kinetics are the same as cells grow in the Cell Culture Flasks. Applicable to large-scalely culture adherent cells.
• Large growing area. Just a single operate, you can cultivate a large number of cells and reduce contamination risk.
• Applicable to automatic machine.
• Standardize operations to reduce batch differences

Appliction

Nest BioFactory™ Systems are compact, multi-layer, single-use cell culture systems designed for easy scale-up cell culture applications, such as production of vaccines, monoclonal antibodies or pharmaceuticals. Versatile, easy-to-use systems for small scale research or commercial production with reduced contamination risk. Narrow mouth caps available for tubing solutions

Cat.No.LayerCap Style
Cultivation area
(cm²)
/Case
77100112 Wide Vent Caps
(with 16 sterile wide plug seal caps included separately)
6478
77110122 Wide Vent Caps
(with 16 sterile wide plug seal caps included separately)
12798
77120452 Wide Vent Caps
(with 8 sterile wide plug seal caps included separately)
31754
771302102 Wide Vent Caps
(with 12 sterile wide plug seal caps included separately)
63356
771403402 Wide Vent Caps
(with 4 sterile wide plug seal caps included separately)
252952
77200111 Narrow Vent Cap + 1Narrow Plug Seal Cap
 (with 8 sterile narrow vent caps & 8 sterile narrow plug seal caps included separately)
6478
77210121 Narrow Vent Cap + 1Narrow Plug Seal Cap
 (with 8 sterile narrow vent caps & 8 sterile narrow plug seal caps included separately)
12798
77220451 Narrow Vent Cap + 1Narrow Plug Seal Cap
 (with 4 sterile narrow vent caps & 4 sterile narrow plug seal caps included separately)
31754
772302101 Narrow Vent Cap + 1Narrow Plug Seal Cap
 (with 6 sterile narrow vent caps & 6 sterile narrow plug seal caps included separately)
63356
772403401 Narrow Vent Cap + 1Narrow Plug Seal Cap
 (with 2 sterile narrow vent caps & 2 sterile narrow plug seal caps included separately)
252952
77300111 Wide Vent Cap & 1 Narrow Plug Seal Cap
(with 8 sterile wide plug seal caps & 8 sterile narrow vent caps included separately)
6478
77310121 Wide Vent Cap & 1 Narrow Plug Seal Cap
(with 8 sterile wide plug seal caps & 8 sterile narrow vent caps included separately)
12798
77320451 Wide Vent Cap & 1 Narrow Plug Seal Cap
(with 4 sterile wide plug seal caps & 4 sterile narrow vent caps included separately)
31754
773302101 Wide Vent Cap & 1 Narrow Plug Seal Cap
(with 6 sterile wide plug seal caps & 6 sterile narrow vent caps included separately)
63356
773403401 Wide Vent Cap & 1 Narrow Plug Seal Cap
(with 2 sterile wide plug seal caps & 2 sterile narrow vent caps included separately)
252952

BioFactory™

BioFactory™

Attribute nameAttribute value
Pack Size4
Layer5 Layers
