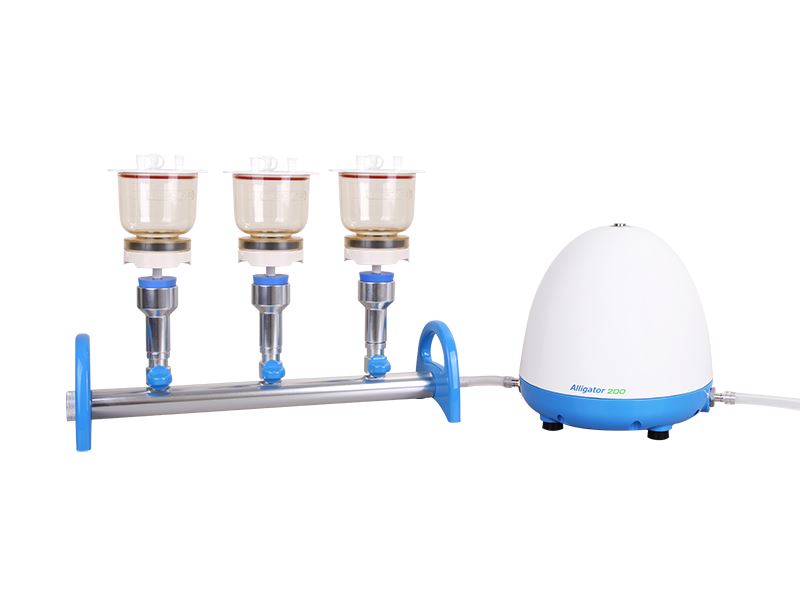

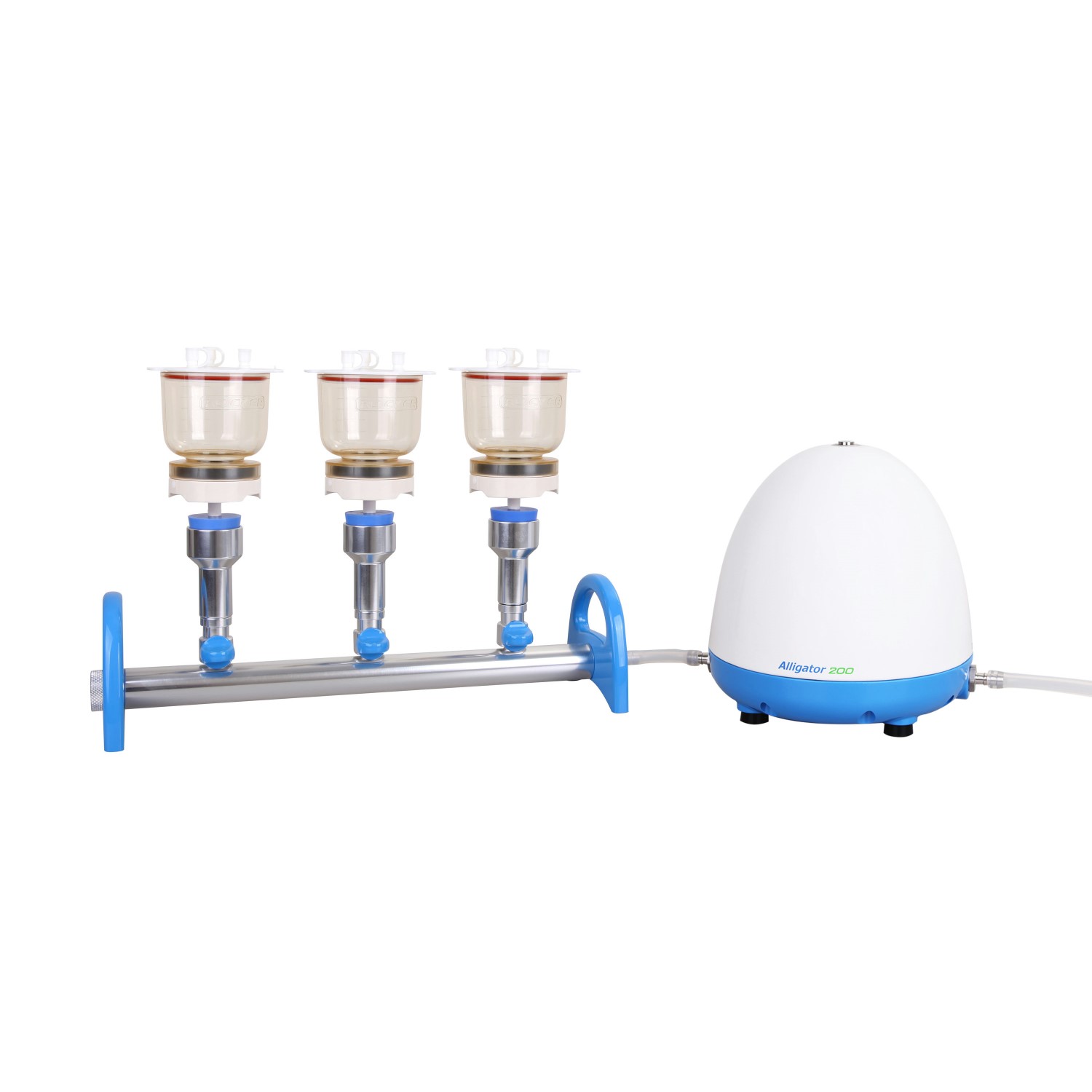

MultiVac 310-MS-A Multi-Branch Filtration system, 180311-02-A

MultiVac 310-MS-A, Vacuum Filtration System, AC100-240V adaptor with EU plug
SKU: 180311-02-A
Manufacturer: Rocker



Part NumberDescription
180311-01(02)-AMultiVac 310-MS-A Vacuum Filtration System includes :
▸ Alligator 200, Diaphragm Liquid Pump
▸ MultiVac 310-MS, 3 Places Aluminum Manifold
▸ MF 3, 300 ml Magnetic Filter Holder (3 pcs)
▸ Silicone Tube (2 pcs)
200300-01MF 3, 300 ml Magnetic Filter Holder with lid kit (optional)
200500-01MF 5, 500 ml Magnetic Filter Holder with lid kit (optional)

Specification

Alligator 200 SpecificationMultiVac 310-MS Manifold Specification
▸ Power: DC24V, 1.8A
▸ Max. vacuum: 313 mbar abs.
▸ Max. liquid flow rate: 4.5 L/min
▸ Motor: 60W Brushless DC Motor
▸ Hose barb: ID8 (5/16 inch)
▸ Material contact with filtrate: SS316, FKM, Silicone, PP, PPS
▸ Number of branch: 3
▸ Filter diameter: 47 mm
▸ Material contact with filtrate: Aluminum



Youtube Video :

MultiVac Series Stainless Steel Multi-Branch Manifold

Youtube Video :

[Rocker 3-Minute Classroom] Total Suspended Solid Test

Multi-Branch Manifold System Features:

◆ For large number of samples

MultiVac 310-MS-A are economical models for large sample filtration. Each system includes Alligator 200 diaphragm liquid pump, manifold and magnetic filter holders.

◆ Time-saving and space-saving

The vacuum source has built in a liquid pump which can be connected directly to manifold without waste bottle. Save 40% bench space and simplify filtration process.

◆Light and handy aluminum design

The manifold is made of aluminum which is autoclavable, light and cost-effective.

◆ Magnetic filter holder is included

Magnetic filter holder allows one-handed operation and prevents the membrane from being twisted or torn.

Multi-Branch Manifold System International Certificates :

◆ CE certification

◆ IP 64 protection (Alligator 200)

◆ RoHS certification (Alligator 200)

Multi-Branch Manifold System Applications :

◆ Suspended solid test for water monitoring

◆ Microbiological test by Membrane Filter Technique

◆ General filtration without collecting filtrate

Attribute nameAttribute value
ModelMultiVac 310 - MS
Num of branch3
Filter diameter47mm
MaterialAluminum
Funnel Capacity300ml
