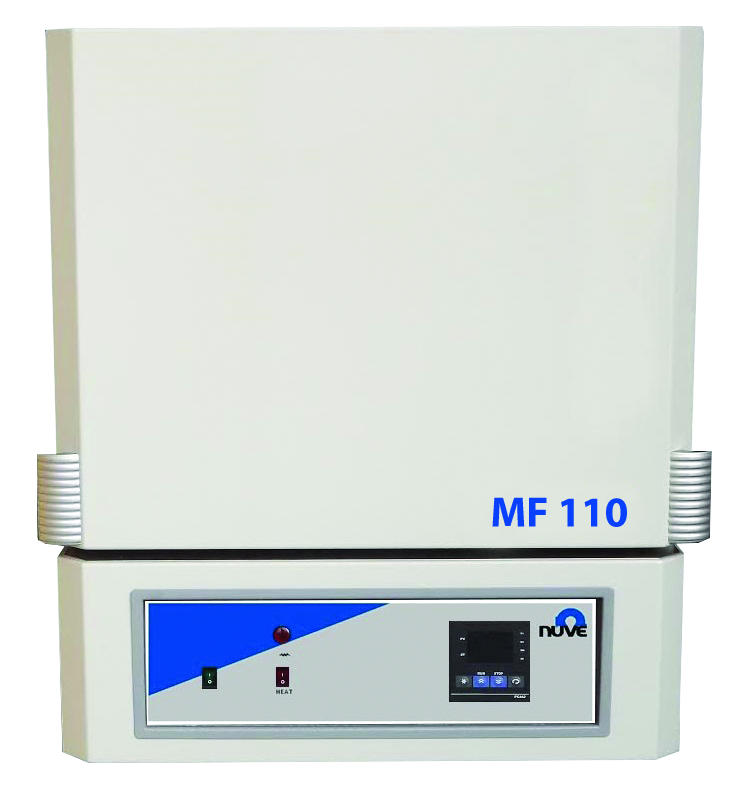

Laboratory Equipment Muffle Furnace 110 MF 110

Muffle Furnace 10L chamber
SKU: MF 110
Manufacturer: Nuve
Pack Size: 1



 The MF Series general purpose furnaces have an ideal design for a wide range of applications in many different sectors such as metal, ceramic and food industry, jewellery and dentistry.

Excellent temperature uniformity and fast heating are achieved with the heating elements coiled around ceramic tubes. This is reinforced by the use of high grade fiber  insulation and an air gap between inner and outer bodies that also protect the user from hot surfaces.

A variety of control systems is available including multiple steps and ramping. PID temperature control shows set and actual values. Alarms and auto-cut-out operate if overheating could occur and a switch automatically cuts power when the door is opened.

FURNACE
Volume: 10 liters
Temperature range: 500° C to 1.100°C
Continuous operating temperature: 1.050°C
Time to maximum temperature: 60 minutes
Interior chamber: Fiber board and refractory brick
PID microprocessor control system with dual display
Open wire heated system
Double envelope construction
Counter balanced vertical opening door
Chamber exhaust chimney
One cordierite ceramic shelf
Int. dim. (WxDxH): 200x250x200 mm
Ext. dim. (WxDxH): 560x640x720 mm
230 V - 50/60 Hz



 FACTORY FITTED OPTIONS
MF XXX (T)Timer - 3600 minutes
MF XXX (20)Control system with 20 programs and 40 steps



MF 110 Brochure Download:


Attribute nameAttribute value
Volume10L
Pack Size1
Temperature Max1100°C
