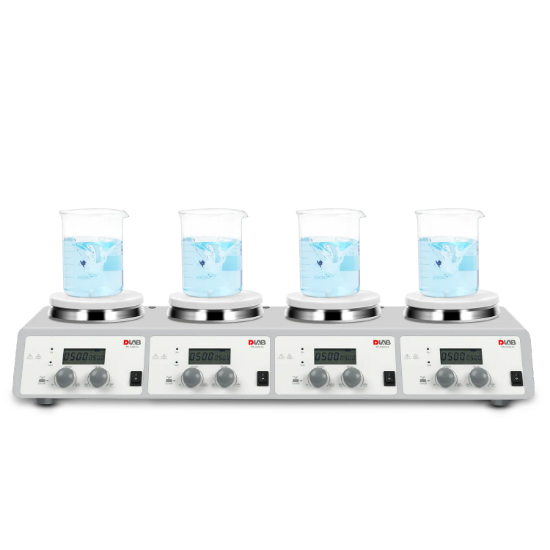

MS-H340-S4, 4-Channel LCD Digital Hotplate Magnetic Stirrer, 8030271110

Multi-channel (Hotplate) Magnetic Stirrer, heating temperature up to 340°C,
SKU: 8030271110
Manufacturer: Dragon Lab



MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer
  • Independent heating and stirring control for each position
  • LCD display shows real-time temperature and speed
  • PID controller ensures a precise          and stable heating process (maximum temperature up to 340℃)
  • Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
  • External temperature sensor (PT1000) with accuracy 0.2℃
  • Overheating protection temperature at 420℃
  • Stainless steel work plate with ceramic  coating provides good chemical resistance
  • Wide variety of accessories available to choose from
PRODUCT PARAMETERS
Cat.No.8030271110
Work plate DimensionØ 135mm(5inch) x 4
Work plate materialStainless steel with ceramic coating
Max. stirring quantity [H2O]10L x 4
Speed range200-1500rpm
Speed displayLCD
Temperature displayLCD
Heating temperature range25-340℃
Temperature display accuracy±0.1℃
External temperature sensorPT1000( accuracy±0.2℃ )
Overheating temperature protection
420℃
Motor typeBrushless DC motor
Stirring positions4
Max. magnetic bar length40mm
Protection classIP20
Motor rating input1.8W x 4
Power515W x 4
Heating output500W x 4
Voltage,Frequency100-120V/200-240V,50/60Hz
Dimension [WxDxH]698x270x128mm
Weight9.5kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity80% RH



Attribute nameAttribute value
TypeMagnetic Hotplate Stirrer
ModelMS-H340-S4
Speed range200-1500rpm
Temperature Max340 °C
