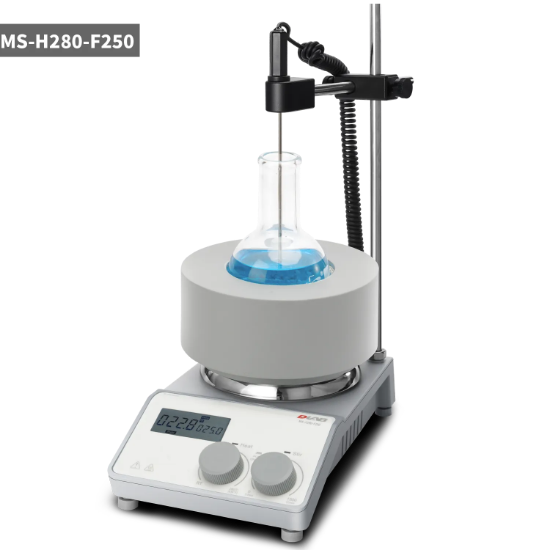

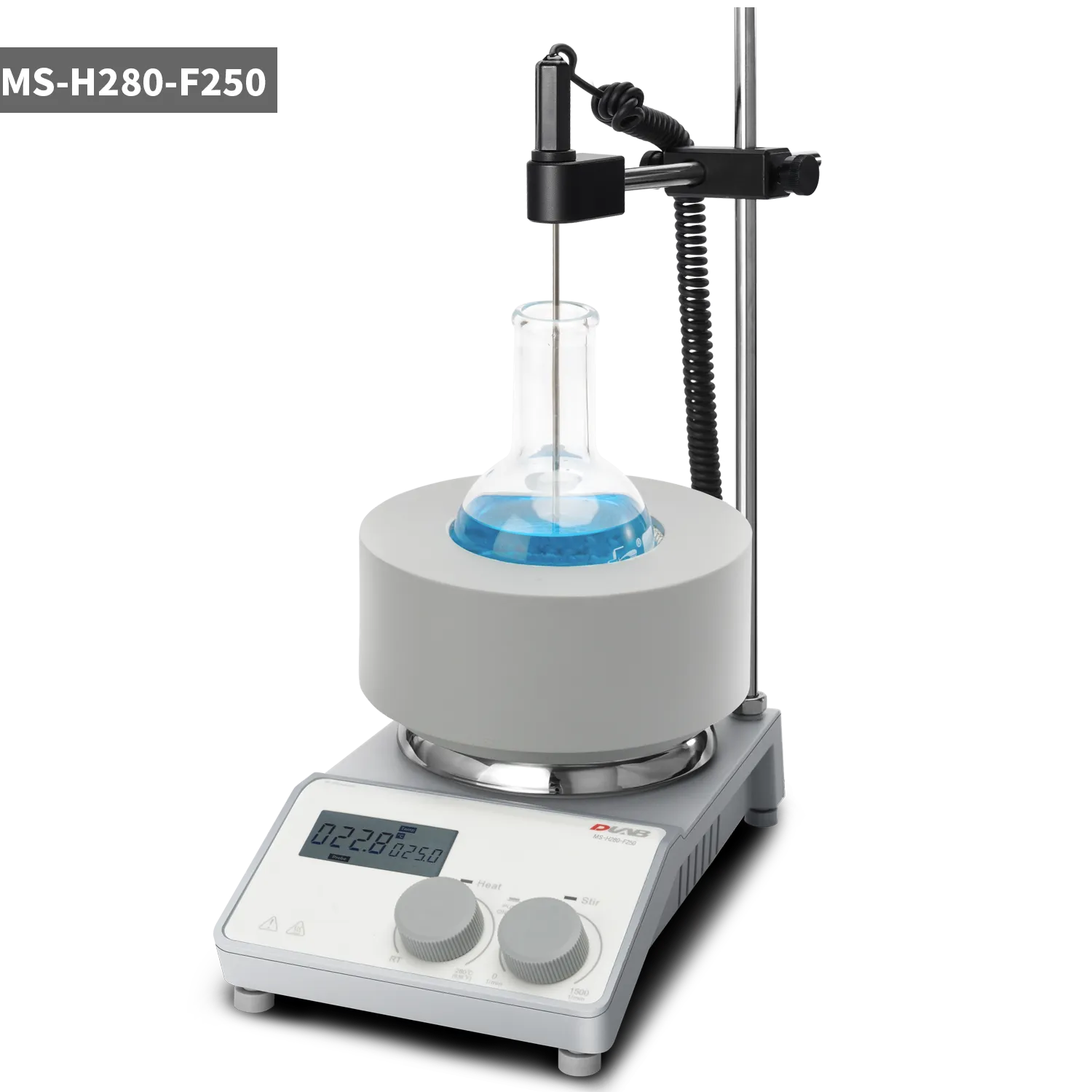

MS-H280-F250 LCD Digital Magnetic Stirrer with Electric Heating Mantle (250ml round bottom flask), 8017383100

SKU: 8017383100

Manufacturer: Dragon Lab

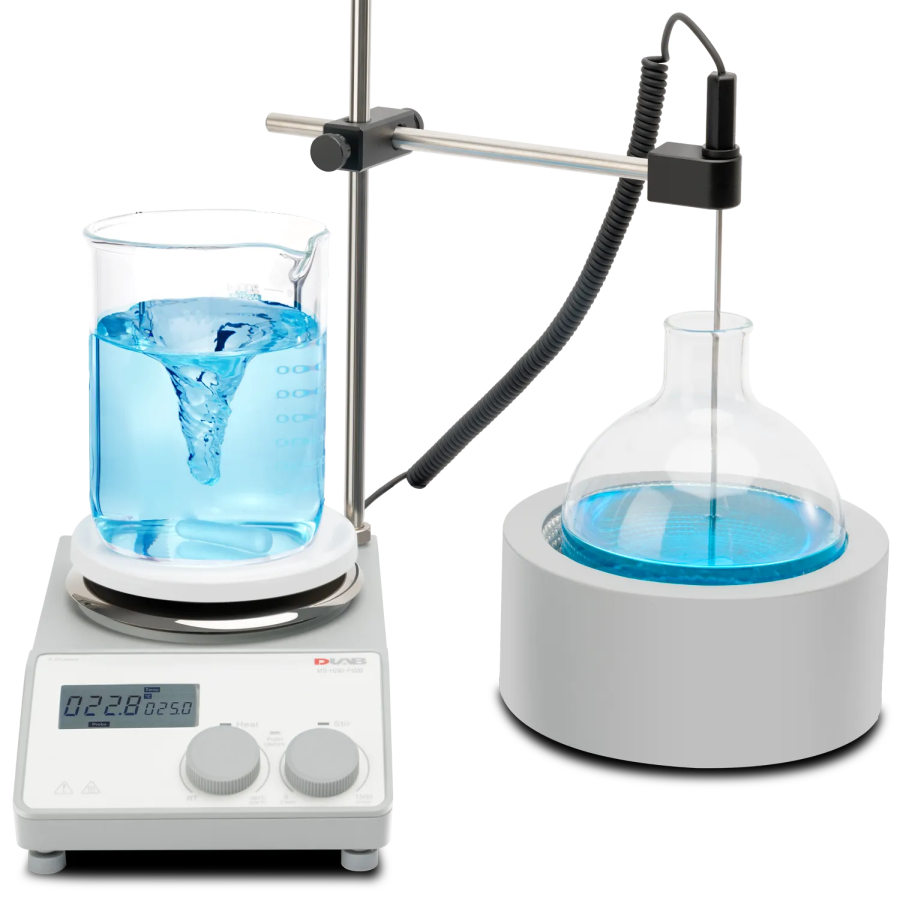

LCD Digital Magnetic Stirrer with Electric Heating Mantle

The smart magnetic stirrer can be flexibly set up with inter-changeable heating sleeves for 100mL、250mL、500mL、1000mL round-bottom flask, or 100mL、250mL、500mL、1000mL flat bottom beakers.
Even more flexible configurations: as one heating magnetic stirrer, or as one heating sleeve plus one magnetic stirrer.
Temperature self calibration function for higher temperature accuracy.
Heating sleeve made of high-quality Aluminum silicate fiber cotton with accurate temperature control, uniform heating and corrosion resistance.
Strengthened magnetic fields with enhanced stirring power.
Fireproof metal outcast with higher safety level.
Explosion-proof DC brushless motor free of maintenance and spark, and with long service life.
The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off, as long as the power cable is connected.
Two independent safety circuits are designed to continuously monitor the equipment. When the sensor malfunctions and overheating occurs, an error code will be generated and the stirrer will stop heating. When the first safety circuit is shorted, the second safety circuit will cut off the power supply to ensure the safety of the operator

Specification
Motor type	Brushless DC motor
Speed Range	200-1500rpm
Speed control accuracy	±20rpm
Speed display	LCD
Temperature display	LCD
Temperature control range	25-280℃
“Hot” warning	50℃
Overheat protection [℃]	420℃
Temperature display accuracy [℃]	±0.1℃
Heating liquid temperature control accuracy	±1℃(<100℃)，±1%(>100℃)
External temperature sensor	PT1000（accuracy ±0.2℃）
Protection class	IP21
Motor input power [W]	1.8W
Heating power [W]	210W/240W/380/440W
Voltage, Frequency	100-120V,60Hz;200-220V,50Hz
Dimension [WxDxH]	295x160x160mm
Weight	3.7kg
Permissible ambient temperature	5-40℃
Permissible ambient humidity	80%
Compatible containers	100ml, 250ml, 500ml, 1000ml round bottom flasks
