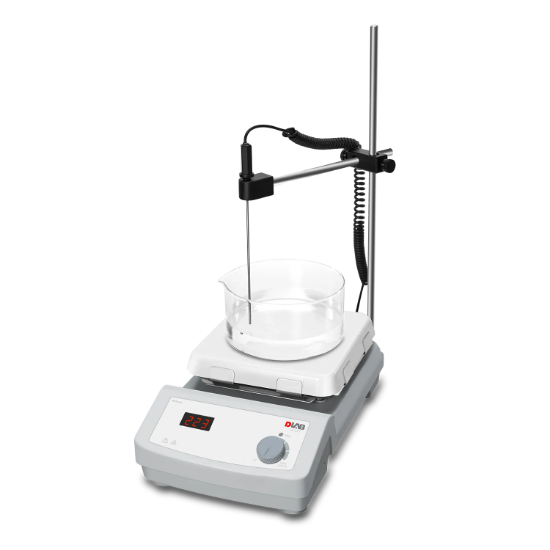

Picture of HP550-S: Square Hotplate (550°C), 5031122211

Picture of HP550-S: Square Hotplate (550°C), 5031122211

Picture of HP550-S: Square Hotplate (550°C), 5031122211

HP550-S: Square Hotplate (550°C), 5031122211

LED Digital 7’’ Square Hotplate，glass ceramic hotplate，heating temperature up to 550°C

SKU: 5031122211

Manufacturer: Dragon Lab

Pack Size: 1

HP550-S LED Hotplate

LED screen display actual and accurate temperature
Maximum temperature up to 550℃
Separate safety circuits with safety temperature of 580℃
External temperature control is possible by connecting temperature sensor (PT1000) with an accuracy of ±0.2℃
Work plate provides excellent chemical- resistant performance and most efficient heat transfer
“HOT”warning flashes when the workplate temperature is above 50℃

Specifications	HP550-S
Work plate Dimension	184x184mm(7 inch)
Work plate material	Glass ceramic
Power	1010W
Heating Power	1000W
Voltage	100-120/200-240V,50/60Hz
Heating position	1
Heating temperature range	Room temp.-550°C,increment 5°C
Control accuracy of work plate	±10°C
Safety temperature	580°C
Temperature display	LED
Temperature display accuracy	±1°C
External temperature sensor	PT1000(±0.5°C)
Heating warning	50°C
Protection class	IP21
Dimension [W x D x H]	215x360x112mm
Weight	4.5kg
Permissible ambient temperature and humidity	5-40°C, 80%RH

Attribute name	Attribute value
Pack Size	1
Type	Hotplate
Model	HP550-S
Temperature Max	550℃
