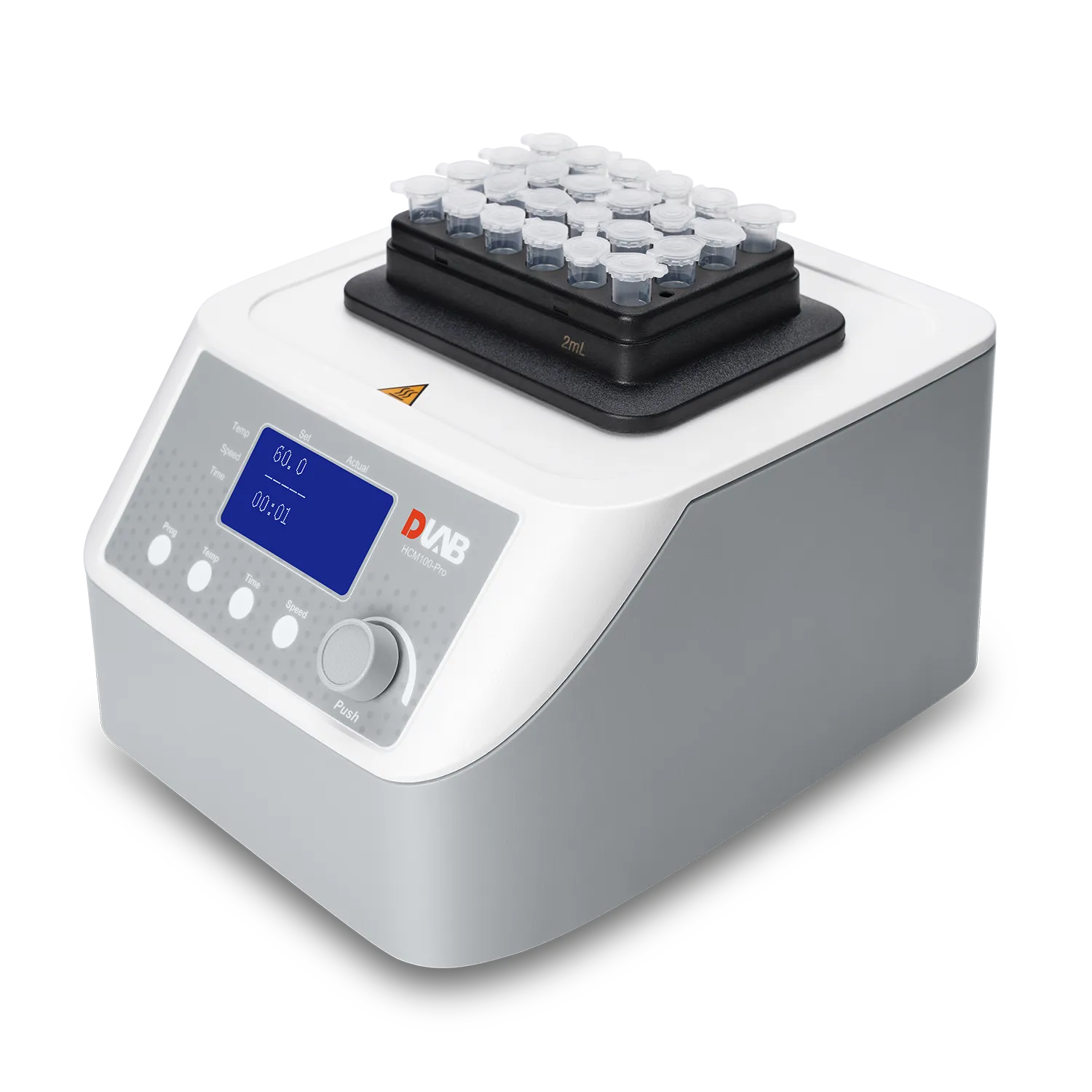

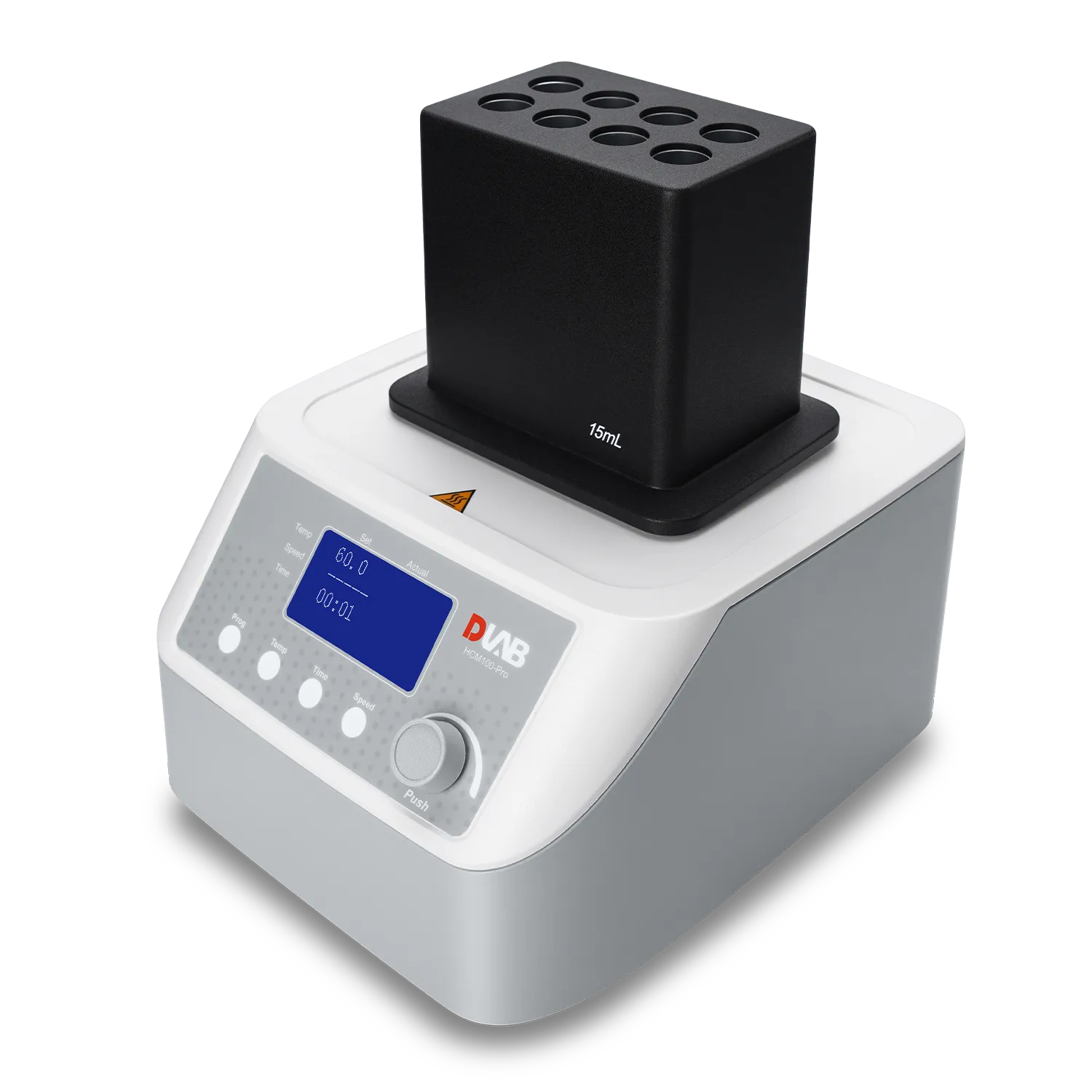

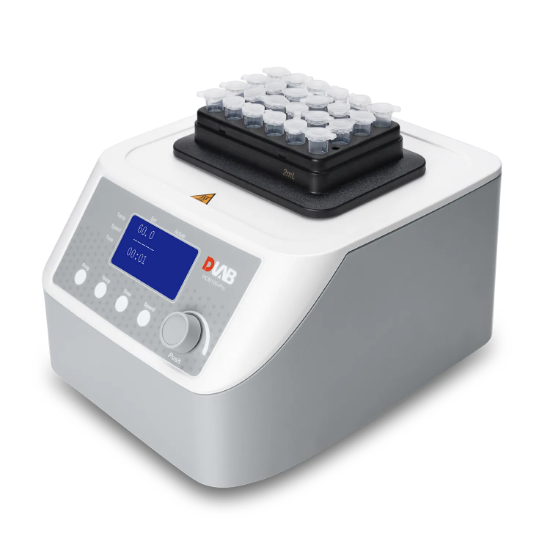

HCM100-Pro LCD digital Thermo Mix, with Push-button operation (Magnetic) 5062103100

LCD digital Thermo Mix with heating, cooling,mixing,with 1pcs heating block for free (select a size)
SKU: 5062103100
Manufacturer: Dragon Lab



HCM100-Pro Thermo Mix（Magnetic）
  • Fully programmable
  • Precise temperature control for heating and cooling
  • Real-time display of speed, temperature and time
  • Excellent mixing (200-1500rpm)
  • Quick interchange of blocks without tools and automatic block recognition
  • Compatible with most popular tubes
  • Block equipped with a lid for heat preservation
  • Temperature self-calibration



SpecificationsHCM100-Pro
FunctionsHeating, cooling & mixing
Temperature rangeHeating: room temp. - 100°C Cooling: room temp. - below room temp.  15°C
Temperature setting range0.1-100℃
Temperature control accuracy± 0.5°C
Temperature uniformityMax.± 0.5°C
Max. heating rate5.5°C/min
Max. cooling rate5°C /min(100°C-room temp.)
  0.5°C/min(below room temp.)
Mixing frequency200-1500rpm
Mixing orbit3mm
ScreenTFT
Overheating protection150°C
Adapter block materialaluminum
Voltage, FrequencyDC12V,100–240V,50/60Hz
Power200W
Dimension [D×W×H]
( without the heating block )		200×235×120mm
Weight7.3kg



Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Black
Cat. No.P/NDescriptions
18900401Heating block, used for 0.5mL tubes, 24 holes
18900402Heating block, used for 1.5mL tubes, 24 holes(cone bottom)Replaced 18900448
18900403Heating block, used for 2mL tubes, 24 holes(
round bottom)		Replaced 18900450
18900404Heating block, used for 5mL tubes, 8 holes
18900405Heating block, used for 5mL tubes, 8 holes, cone bottomReplaced 18900466
18900406Heating block, used for 15mL tubes, 8 holes
18900407Heating block, used for 50mL tubes, 4 holesReplaced 18900456
18900420Heating block, used for 0.2ml/96 well PCR plate
18900423Heating block, used for 96/384 microplate
Accessories of Thermo Mix(Quick change,magnetic mounting) only adapt to upgraded equipments，Gray
Cat. No.P/NDescriptions
18900446Heating block, used for 0.5mL tubes, 24 holes
18900452Heating block, used for 5mL tubes, 8 holes
18900422Heating block, used for 0.2ml/96 well PCR plate
18900425Heating block, used for 96/384 microplate
