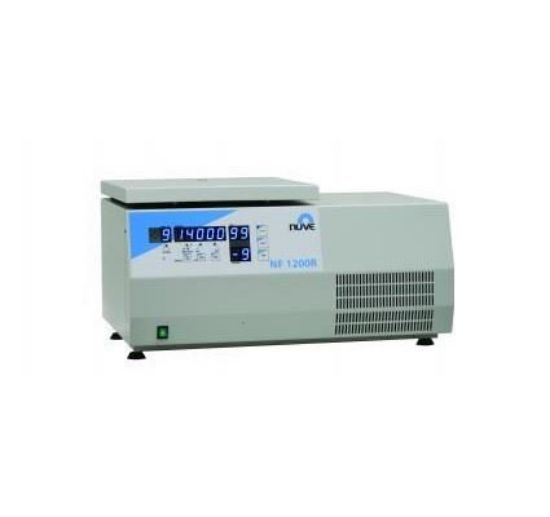

Laboratory Equipment NF 1200R Centrifuge NF 1200R

Multipurpose Refrigerated Centrifuge
SKU: NF 1200R
Manufacturer: Nuve
Pack Size: 1



The large multi-purpose NF 1200/1200R bench top centrifuges provide a comprehensive response to laboratories carrying out multiple applications. Their extensive range of accessories and versatile performance combined in one unit save valuable bench space and are the answer when budgets are tight but many protocols have to be carried out.

NF 1200/1200R accept 48-76 x 5 ml tubes in the swing-out rotor and 6x100 ml in angle rotor and offer slightly higher performance than NF 800/800R models. Their microtube capacity and performance are also enhanced as is the high speed tube range.

Microprocessor control for precise operation with speed, RCF and temperature (R model) includes a choice of 10 acceleration and braking rates for optimum separation quality. The ventilated units are designed to keep temperature rise to a minimum.



Maximum speed: Swing-out Rotor 4.100 rpm / Angle Rotor 14.000 rpm
Maximum RCF: Swing-out Rotor 3.082 xg / Angle Rotor 20.170 xg
Maximum capacity: Swing-out Rotor 4x280 ml / Angle Rotor 6x100 ml
Temperature range: -9°C / +40°C (+4°C at max. speed)
N-Prime™ programmable microprocessor control system
Easy programming with one button, just turn and push
Programmable by RCF or RPM
Large bright digital display for program number, speed, time, RCF, temperature, acceleration/braking rates
10 program memories
Timer: 1 - 99 minutes and hold position
10 acceleration / 10 braking rates
Pulse function
Maintenance-free induction motor
Motorized lid locking
Safety features: Imbalance detection, lid interlock, chamber guard ring, motor
over temperature, rotor over speed, diagnostic system
Delivered without rotor
Ext. dim. (WxDxH): 770x550x415 mm
230 V - 50/60 Hz



 ACCESSORIES FOR NF 1200 / 1200R
A 08 062Puller for rotor removal (B 50 023 - B 50 022 - B 50 029)

B 50 016RA 280 Swing-out rotor 4x280ml, 4.100 rpm, 3.082 xg
G 51 007Set of 4 buckets for RA 280
G 51 036Set of 4 buckets with sealing cap
G 51 008Set of 4 inserts 1x280 ml
G 51 009Set of 4 inserts 1x250 ml flat
G 51 010Set of 4 inserts 1x200 ml flat
G 51 011Set of 4 inserts 1x100 ml
G 51 012Set of 4 inserts 2x50 ml conical
G 51 013Set of 4 inserts 4x25 ml
G 51 014Set of 4 inserts 5x15 ml conical
G 51 015Set of 4 inserts 12x15 ml
G 51 016Set of 4 inserts 12x5/7 ml
G 51 017Set of 4 inserts 19x5 ml RIA

B 50 021MP 200 Microtitre rotor, 2x3 microplates, 4.100 rpm, 2.349 xg

B 50 015RS 450 Angle Rotor 30x15 ml 4.100 rpm 3.007 xg
G 03 057Adaptor for 1,5/2 ml (Ø11 mm) tubes
 (Should be ordered according to the capacity of the rotor)
G 03 014Adaptor for 13x100 mm vacuumed / non-vacuumed tubes (7 ml)
 (Should be ordered according to the capacity of the rotor)
G 03 015Adaptor for 13x75 mm vacuumed / non-vacuumed tubes (5 ml)
 (Should be ordered according to the capacity of the rotor)


B 50 023RS 600 Angle rotor 6x100 ml 9.000 rpm, 8.965 xg
G 51 018Set of 6 adaptors 1x50 ml
G 51 019Set of 6 adaptors 1x50 ml conical
G 51 020Set of 6 adaptors 1x30/38 ml
G 51 021Set of 6 adaptors 1x15 ml conical

B 50 022RS 100 Angle rotor 10x10 ml 12.000 rpm, 14.167 xg
G 51 022Set of 10 adaptors 1x6 ml
G 51 023Set of 10 adaptors 1x1.5/2 ml

B 50 043RS 150 Angle rotor 10x15 ml 12.000 rpm, 16.824 xg
G 03 057Adaptor for 1,5/2 ml (Ø11 mm) tubes
 (Should be ordered according to the capacity of the rotor)
G 03 014Adaptor for 13x100 mm vacuumed / non-vacuumed tubes (7 ml)
 (Should be ordered according to the capacity of the rotor)
G 03 015Adaptor for 13x75 mm vacuumed / non-vacuumed tubes (5 ml)
 (Should be ordered according to the capacity of the rotor)

B 50 014RS 24 Angle rotor 24x1,5/2 ml 14.000 rpm, 18.40 xg
B 50 029RS 30 Angle rotor 30x1,5/2 ml 13.200 rpm, 20.170 xg
A 14 005Adaptor 500 / 800 µl
A 14 006Adaptor 200 µl PCR
A 14 007Adaptor 250 / 400 / 700 µl



NF 1200R Brochure Download:


Attribute nameAttribute value
Pack Size1
Speed rangeMax Swing 4100rpm/Angle 14000 rpm
Rotor CapacitySwing 4 x 280 ml, Angle 6 x 100 ml
