MultiVac 301-MB-T Multi-Branch Filtration System 180301-22-T

New MultiVac 301-MB-T, Vacuum Filtration System, AC220V, 50Hz
SKU: 180301-22-T
Manufacturer: Rocker



MultiVac 301 – MB – T Multi-Branch Filtration System



◆ Two-Year Warranty (Rocker 400)
◆ For microbiological filtration
◆ Quick-assembly and disassembly
◆ Innovative vent valve design
◆ 4000 ml PP vacuum bottle with drain
◆ CE, UKCA certificated


Multi-Branch Manifold System Features:

  • For microbiological filtration
    MultiVac 301 – MB – T is a perfect kit for microbiological tests with large number samples. All wetted parts of manifold are made of SS316 stainless steel, which can be fast sterilized by flame.
  • Quick-assembly and disassembly
    Each component can be easily removed for cleaning and autoclaving.
  • Innovative vent valve design
    Unique adjustable vent valve design eliminates water hammer phenomenon and helps drain residual liquid in pipe.
  • 4000 ml PP vacuum bottle with drainage
    The large capacity of 4000 mL vacuum bottle with drain offers convenience of collecting and draining liquid waste.
  • Quick-Fit hose barb
    Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.



Multi-Branch Manifold System Certificates

  • CE certification
  • UKCA certification
  • CSA certification (Rocker 400)
  • IP 30 protection (Rocker 400)
  • RoHS certification (Rocker 400)



Multi-Branch Manifold System Ordering Information



 Part NumberDescription

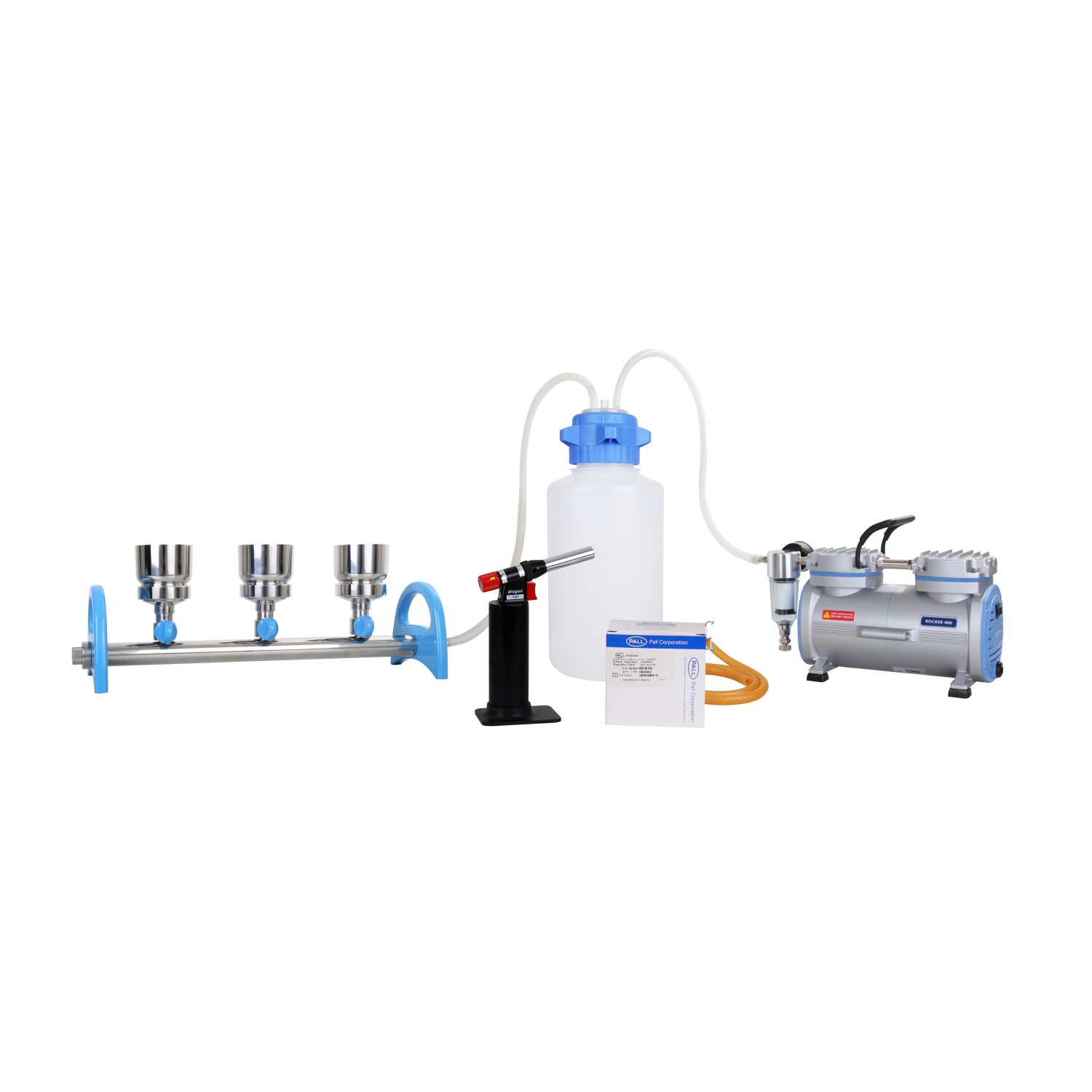

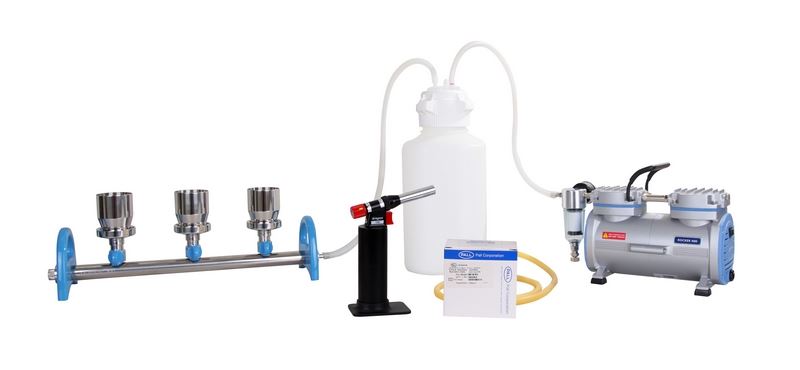

180301-22-TMultiVac 301-MB-T Vacuum Filtration System includes :
▸ Rocker 400, Oil Free Vacuum Pump
▸ MultiVac 300-MB, 3 Places Stainless Steel Manifold
▸ SF, ​100 ml Stainless Steel Funnel (3 pcs)
▸ 4000 ml PP Vacuum Bottle with drain
▸ Dragon 100, Torch Burner
▸ MCE Membrane, 47 mm, 0.45 μm, 200/PK
▸ Silicone Tube (1m x 2pcs)
 180100-01SF, 100 ml stainless steel funnel (Optional)
 180100-03SF, 300 ml stainless steel funnel (Optional)
 180100-05SF, 500 ml stainless steel funnel (Optional)



Multi-Branch Filtration System Specification

▸ Specification (220V, 50Hz)
▸ Max. power: 80W
▸ Max. current: 0.4A
▸ Max. vacuum: 105 mbar abs.
▸ Max. flow rate: 34 L/min
▸ Vacuum regulator: Yes
▸ Overflow protection: Yes
▸ Filter cartridge: Yes
▸ Thermal protection: Yes
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/6 HP
▸ Noise level: 52 dB
▸ Hose barb: ID8



MultiVac 301MB Multi-branch Manifold Specification
▸ Number of branch: 3
▸ Funnel: SF stainless steel funnel, 100 ml x 3
▸ Filter diameter: 47 mm
▸ Material contact with filtrate: SS316




Youtube Video :

MultiVac Series Stainless Steel Multi-Branch Manifold



Attribute nameAttribute value
ModelMultiVac 301 - MB
Num of branch3
Filter diameter47mm
